LRF is one of auto measurement types of a digital oscilloscope in the time domain (“Delay” menu item) which is used for the measurement of the time delay between the first rising edge of channel 1 and the last falling edge of channel 2.
For more convenient display of a measured parameter the majority of oscilloscope auto measurement types are shown as abbreviations. Such short names contain the encoded meaning of the current auto measurement type. LRF abbreviation can be decoded as Last Rising Falling.

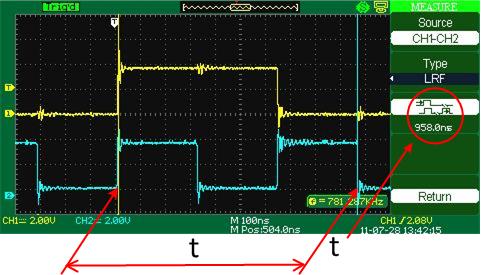

The example of the auto measurement of LRF delay time of Aktakom AOC-5302 wide screen oscilloscope is shown on the screenshot below.
The measured delay time (t) between the first rising edge of channel 1 and the last falling edge of channel 2 on the screenshot above is 958 ns.
