External trigger signal
D.E.V.I.C.E. is an encyclopedia of terms used by manufacturers of test and measurement equipment. T&M Atlantic created this service to better explain the functionality of instruments it offers, and to highlight the latest developments in the world of measurement equipment. We are using such tools as animation to bring words and pictures to life and to create not just an understanding but also an appreciation for technology that goes into the design of every instrument.
D.E.V.I.C.E. on Request
If you are searching for a particular term or definition, please contact us and our engineers will be glad to explain it to you.
External trigger signal is a synchronizing pulse which is external relatively to the measuring device (oscilloscope, generator, logic analyzer etc.) and it usually synchronizes with the system under test.

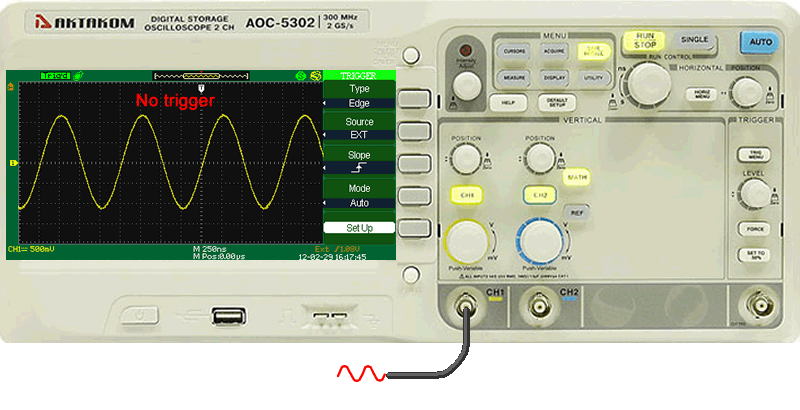

The animation below demonstrates the input sine signal trigger with the help of the trigger signal connected to the input of EXT TRIG external trigger of AKTAKOM oscilloscope.
