+Duty - Oscilloscope Automatic Measurement Type

About D.E.V.I.C.E.

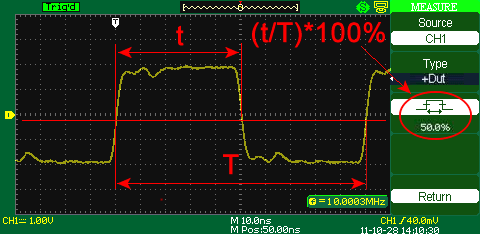

A type of oscilloscope's automatic measurements. Measures the first cycle waveform. Positive Duty Cycle is the ratio between positive pulse width (t) and period (T). The duty cycle can be expressed as a ratio or as a percentage. Duty cycle is calculated by t/T*100%, or 1/100, or 1 percent.


Oscilloscopes with Duty Cycle automatic measurement: ADS-2121MV, DS2202A

Un tipo de medidas automáticas. Mide la forma de onda del primer ciclo. El ciclo de trabajo positivo es la relación entre el ancho de pulso positivo (t) y el período (T).


Back to the list
