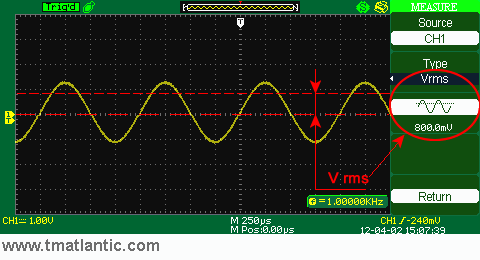

A type of automatic measurements. The true Root Mean Square voltage over the entire waveform.
Pk-Pk (Vp): amplitude (peak-to-peak) voltage Max (Ma): the maximum voltage
Min (Mi): the minimum voltage
Vtop (Vt): rectangular pulse voltage peaks
Vbase (Vb): base voltage square wave
Vamp (Va): voltage amplitude (Vtop - Vbase)
Mean (V): the average value of the voltage
Cycrms (Vk): rms voltage over one period
(Vmax-Vtop)/Vamp->Overshoot (Os): Emission measurements at the top of a percentage of the amplitude of the square wave (Vmax-Vtop) / Vamp
(Vmin-Vbase)/Vamp->Preshoot (Ps): Emission measurements at the base as a percentage of the amplitude of the rectangular pulse (Vmin-Vbase) / Vamp
Un tipo de medidas automáticas. La verdadera tensión cuadrática media sobre toda la forma de onda.
Pk-Pk (Vp): amplitud (peak-to-peak) voltage Max (Ma):el voltaje máximo
Min (Mi): el voltaje mínimo
Vtop (Vt): picos de voltaje de pulso rectangular
Vbase (Vb):onda cuadrada de voltaje base
Vamp (Va):amplitud de voltaje (Vtop - Vbase)
Mean (V): el valor medio de la tensión
Cycrms (Vk): rms voltaje durante un período
(Vmax-Vtop)/Vamp->Overshoot (Os): Mediciones de emisión en la parte superior de un porcentaje de la amplitud de la onda cuadrada (Vmax-Vtop) / Vamp
(Vmin-Vbase)/Vamp->Preshoot (Ps): Mediciones de emisión en la base como porcentaje de la amplitud del pulso rectangular (Vmin-Vbase) / Vamp
