How to calculate the spark-extinguishing RC circuit

About D.E.V.I.C.E.

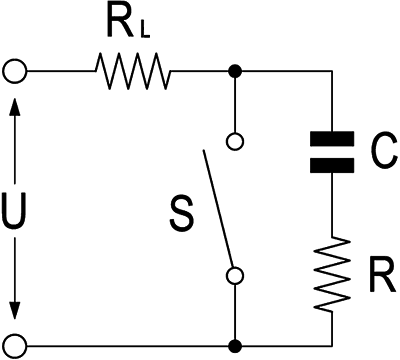

When the relay closes and opens, its contacts can be damaged by the resulting electric discharge arc. To protect them, you can use RC chains installed in parallel with the relay or load. You can calculate the parameters of the elements needed for this here by entering the general characteristics of the circuit.

the spark-extinguishing RC circuit

Cuando el relé se cierra y se abre, sus contactos pueden dañarse por el arco de descarga eléctrica resultante.Para protegerlos, se puede usar un circuito RC instaladas en paralelo con un relé o carga. Se puede calcular los parámetros necesarios para este elemento aquí ingresando las características generales del circuito.
