Average is one of the acquisition modes in digital oscilloscope. The averaged waveform is a running average over a specified number of N acquisitions.
Apply averaging to your signal to remove uncorrelated or random noises and to improve measurement accuracy.
The number of acquisitions for averaging is set up discretely depending on the specifications of certain models. In the majority of oscilloscope models there is average used from 2 or 4 acquisitions to 128 or 256.

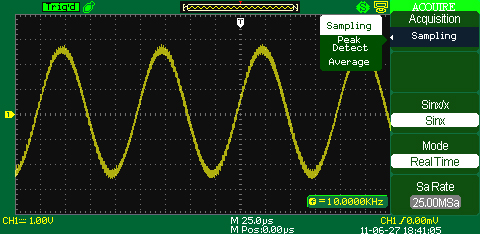

The following screenshot shows the signal of 10 kHz frequency with uncorrelated noise acquired by the oscilloscope in the sampling mode.

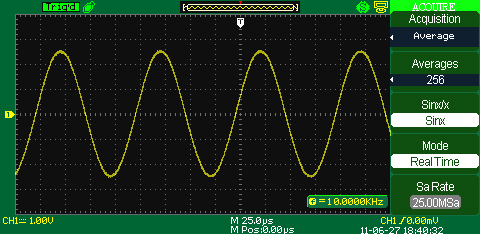

The screenshot below shows the result of averaging over 256 acquisitions.
El promedio es uno de los modos de adquisición en el osciloscopio digital. La forma de onda promediada es un promedio móvil sobre un número específico de N adquisiciones.
Aplique promedios a su señal para eliminar ruidos no correlacionados o aleatorios y mejorar la precisión de la medición.
El número de adquisiciones para promediar se configura discretamente dependiendo de las especificaciones de ciertos modelos. En la mayoría de modelos de osciloscopios se utiliza una media desde 2 o 4 adquisiciones hasta 128 o 256.
La siguiente captura de pantalla muestra la señal de 10 kHz de frecuencia con ruido no correlacionado adquirida por el osciloscopio en el modo de muestreo.
La siguiente captura de pantalla muestra el resultado de promediar más de 256 adquisiciones.
