UltraVision innovative technology combines easy navigation of the captured signal, deep memory depth, ultra-wide dynamic range, perfect signal capture ratio, signal record with wide capabilities of its analysis, variable functions of triggering and decoding, signal displaying with controllable brightness.

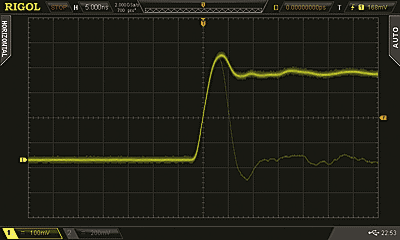

High waveform capture rate (up to 180000 Wfms/s):

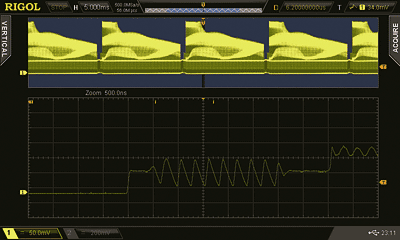

Deep memory depth (up to 140 Mpts):

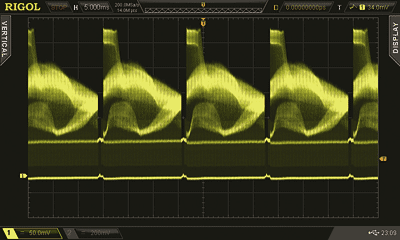

256 brightness gradations when the signal is displayed:

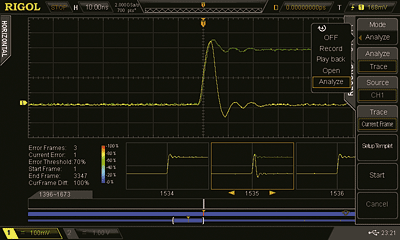

Real-time signal recording with its representation and analysis capabilities:
