APS-7306 Linear, adjustable DC Power Supply 30V 5A, precision control, mode - CC, CV, memory, with Free AKTAKOM Original Software Control via PC, preset, and even one of the kind Voice Guide
APS-7306 Linear, adjustable DC Power Supply 30V 5A, precision control, mode - CC, CV, memory, with Free AKTAKOM Original Software Control via PC, preset, and even one of the kind Voice Guide

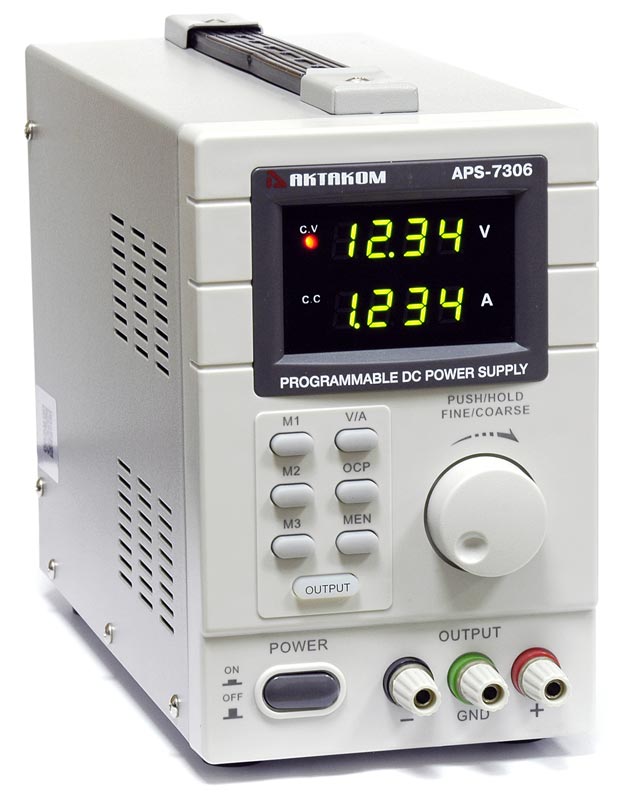

High precision Programmable DC power supply AKTAKOM APS-7306 is designed to provide stabilized voltage and current with high precision and low ripple and noise.
Regulated DC power supply APS-7306 is perfect for repair services and in scientific and research laboratories.
Software Aktakom Power Manager Express software allows users to remotely control their AKTAKOM power supply via PC. It features Measure, Set Up and Initialization functions, as well as, automatic switching off of the outputs of the device at the end of the program. The program follows basic configurations and some features of operation as the device control panel. This program makes it quick and easy to control your device with memory settings, preset features, and even voice guidance. Voice guidance works in all languages installed in the operating system installed on your PC.
Depending on a destination shipping cost may vary. Free shipping for orders over $450 on items weighting under 20 lbs (certain restrictions apply!) See shipping page for international rates or contact sales@tmatlantic.com
In stock, 2 left
Description
Specifications
Accessories
Videos
Application
FAQ
Software
Descripción
AKTAKOM APS-7306 programmable DC power supply is designed to provide stabilized voltage and current with high precision and low noise.
APS-7306 regulated DC power supply (analog of QJE QJ3005P) is perfect for repair services and in scientific and research laboratories.
Features
dual LED display for voltage and current
coarse and fine adjustments of voltage and current
protection mode: current limiting
output connectors: insulated safety plugs
organic glass front panel / other panels made of steel
memory:3 programmable memories
computer connectivity: pc remote control via USB
FREE ORIGINAL SOFTWARE FROM AKTAKOM CONTROL VIA PC AKTAKOM Power Manager Express: an application designed to control AKTAKOM APS-7306 power supplies via a PC. This program makes it quick and easy to control your device with memory settings, preset features, and even voice guidance. Voice guidance works in all languages installed in the operating system installed on your PC.
"Absolute measurement error" service allows you to estimate the measurement accuracy considering uncertainty (error) in the absolute value. It's important if you take measurements at the range edge when the error value contributes to the value displayed on the device screen.
To get the value range it'd be enough to enter the estimate of the value under measurement into Value input field and to see the range of possible values taking all of the standardized errors into consideration.
Note: a point is used as a separator of the integer and fractional part.
Output voltage
Range
Resolution
Accuracy
Absolute error
Value-error
Value
Value+error
30 V
10 mV
±(0.5%+2 digits)
±0.16995 V
V
Output current
Range
Resolution
Accuracy
Absolute error
Value-error
Value
Value+error
5 A
1 mA
±(0.5%+10 digits)
±0.034995 A
A
Specifications
LED display: 2
Channel: 1
Output voltage: 0…30 V
Output current: 0…5 A
Output voltage inaccuracy: ±(0.5% + 20 mV)
Output current inaccuracy: ±(0.5% + 10 mA)
Voltage ripple & noise: 2 mV RMS.
Input voltage: 110/220 V
Dimensions: 4.5x7.5x9.5 in / 115x190x240 mm
Weight: 11.7 lb / 5.3 kg
Included accessories
Power cord
USB cable
User manual
Using the Power Supply in Constant Current Mode
If you want to use the power supply in constant current mode: you set up the desired output current between 0A and 3A/5A. You also set up the desired voltage limit.
Using the Power Supply in Constant Voltage Mode
If you want to use the power supply in constant voltage mode, you set up the desired output voltage between 0V and 30V. You also set up the desired current limit.
If the output current exceeds the limit, the power supply automatically goes into constant current mode.
Switching the Power Supply On or Off
Connect the included power cord to the back of the device (see the pic. below) and plug the other end into a suitable, earthed power socket. Always connect the device to an earthed power socket!
Press the Power button on the front panel to switch the power supply on. At this moment, there is no output voltage or current on the output terminals.
Press the Power button to switch the power supply off.
Recalling Settings
To recall one of the saved settings, press the corresponding memory key M1~M3, the corresponding voltage/current settings appear on the display.
Note: the output is switched off automatically when you press a memory key to recall a setup.
Connecting a Load
Connect the load’s positive terminal to the red terminal “+” of the power supply.
Connect the load’s negative terminal to the black terminal “-” of the power supply.
You can connect “+” or “-“ terminal to the green earth terminal of the power supply to pin the voltage to 0V (earth potential) at that terminal.
If you leave the earth terminal unconnected, the output floats with respect to the ground.
Applying Voltage to the Load
Press the Off/On key on the front panel to apply the voltage to the load. The “Output” and “C.V.” indicators on the display light. The power supply works in constant voltage (CV) mode; the display now shows the actual output voltage and current.
If the current exceeds the set current limit, the power supply automatically goes into constant current (CC) mode. The “C.V.” indicator goes out and the “C.C.” indicator on the display lights
Press the Off/On key to switch the output off.
Setting Voltage and Current
You can save 3 different voltage/current settings using the memory keys M1~M3.
Press the “V/A” key on the front panel to set the voltage. The voltage readout flashes.
For use in constant voltage mode: this is the desired constant voltage.
Turn the round adjustment knob until you reach approximately the desired voltage. Press the adjustment knob to select a digit in the voltage readout and turn the adjustment knob to fine-tune.
Press the “V/A” key again to set the current. The current readout flashes.
- For use in constant voltage mode: this is the desired current limit.
- For use in constant current mode: this is the desired constant current.
- If you enable overcurrent protection, the output switches off automatically if the current exceeds this value.
Turn the round adjustment knob until you reach approximately the desired current. Press the adjustment knob to select a digit in the current readout and turn the adjustment knob to fine-tune.
Press the memory key “MEN” again (or wait until the display to start flashing). Then press the m1-m3 button The settings are saved in the selected memory (the display stops flashing).
Can I store voltage and current values in the device memory?
AKTAKOM APS-7306 power supply has the ability to store 3 voltage and current values. The procedure for saving values is simple - enter, as described earlier, the voltage and current value, for example, 5 volts and 1 ampere and press the MEM and M1 button. Next, set the voltage and current value, for example, 12 volts and 2 amperes and press the MEM and M2 button. And for the 3rd time - set the voltage and current value, for example, 24 volts and 3.5 amperes and press the MEM and M3 button. See Video Tutorial for real life application Up
How can I memorize the voltage and current values
In APS-7306(L/LS) DC Programmable Power Supply, for ease of use, when setting typical values, you can memorize up to 3 voltage and current values.
It’s easy to memorize the values - we enter the voltage and current values for example, 5 volts and 1 ampere and press the MEM and M1 button. Next, set a different value for voltage and current 12 volts and 2 amperes and press the MEM and M2 button and for the 3rd time - 24 volts and 3.5 amperes and press the MEM and M3 button.
What operating modes does the APS-7306(L/LS) DC Programmable Power Supply have?
The APS-7306(L/LS) power supply has two operating modes - voltage stabilization (CV) and current stabilization (CC). Voltage stabilization mode is the most commonly used operating mode. When we turn on the “output” button, in the voltage stabilization mode we see the set voltage value, and the current value will be equal to the measured one. If the current value constantly increases, then when the set maximum value is reached, power supply will automatically switch to current stabilization mode and reduce the output voltage.
Current stabilization mode is a mode in which the output voltage will be reduced so that the current does not exceed the set value. Therefore, you should always set the required maximum current value. If the required maximum current value is not set, then there will be no voltage at the output after pressing the “Output” button. Simply, when the current is set to zero, there should be zero voltage. We recommend that you always set the current to the minimum required. This will protect your electronic equipment from accidental short circuits during operation.
When I press “Remote” there is nothing happening to AKTAKOM APS-7306 power supply control. What is the reason?
In order to ensure the safe operation of AKTAKOM APS-7306 power supply and the connected equipment the command to turn off the remote mode in the program does not work. To switch to local control turn the power off and then on again.
What current protection do AKTAKOM power supplies use?
AKTAKOM power supplies use 2 types of protection.
In low end power supplies the current protection is provided mostly by "current stabilization" (CC) mode. When the load resistance decreases (or short circuit) the power supply reduces the output terminals voltage to the minimum level and remains in this condition until the load resistance appears on the terminals. When resistance appears, voltage (and current) will increase proportionally to the set value.
High end power supplies have also over current protection mode (or OCP mode) in addition to the current stabilization mode. OCP mode is activated regardless of current stabilization mode and allows you to set any current limit value at which the power supply will turn off the output terminals voltage. After the protection is activated the power supply terminals will stay off until some certain buttons on the device control panel are pressed, regardless of the load state.
Multi-channel power supplies use OCP options both for separate channels and for the total output current of the power supply.
Thus we may assume that devices without OCP mode use current stabilization mode for the current protection. In devices equipped with OCP mode the current protection works in the trigger mode.
However it should be noted that in both cases, when the protection is activated, the output terminals (and the load) are not galvanically isolated from the power supply.
May I use AKTAKOM power supplies to charge accumulators?
AKTAKOM power supplies can’t be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device.
Fixing LED Light Fixture Part 3: Unforeseen causes of broken LED lights
How to fix LED light fixture using AKTAKOM AM-1060 DMM, ASE-1209 Soldering Tweezers and APS-7306 Power Supply
APS-7306 Connecting the Power Supply
APS-7306 DC Power Supply Tutorial
AKTAKOM APS-7306 DC Power Supply Promo
La fuente de alimentación programable Aktakom APS-7306 esta diseñada para alimentar equipos técnicos de radio con corriente y tension estabilizados en proceso de reparación e investigación en laboratorios.
El presente modelo es perfecto para servicios de reparación y en laboratorios científicos y de investigación.
Características
doble LED monitor para la tension y corriente
ajustes amplios y finos para la tension y corriente
modo de protección: limitación de corriente
conectores de salida: enchunfles con aislamiento de seguridad
cristal de panel frontal orgánico / otros paneles hechos de metal
memoria:3 memorias programables
conectividad con computadora: pc control remoto via USB
software incluido para windows XP, Vista y W7, W8, W8.1 (32 bits + 64 bits)
