Addition (+)
D.E.V.I.C.E. is an encyclopedia of terms used by manufacturers of test and measurement equipment. T&M Atlantic created this service to better explain the functionality of instruments it offers, and to highlight the latest developments in the world of T&M Atlantic. We are using such tools as flash and animation to bring words and pictures to life and to create not just an understanding but also an appreciation for technology that goes into the design of every instrument.
D.E.V.I.C.E. on Request
If you are searching for a particular term or definition, please contact us and our engineers will be glad to explain it to you.

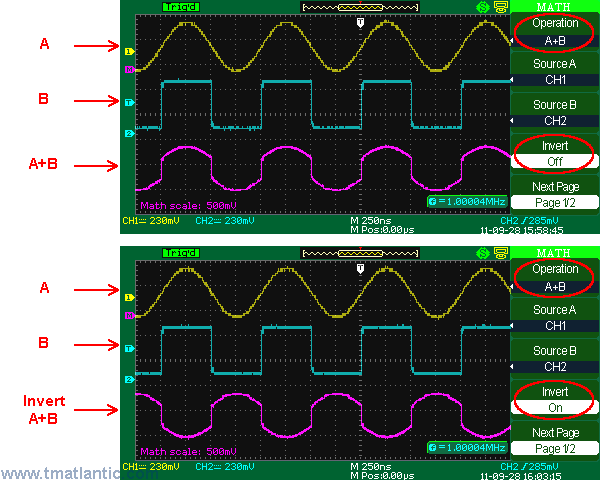

In the picture below which shows addition process there are three oscillograms of different colours. Colour differentiation of different signals is a very convenient method for their visualization and analysis. Such a method is widely used in Aktakom oscilloscopes. Depending on the colour scheme used the colour differentiation also can vary. In the following example: yellow oscillogram is the input signal in channel 1 (source A), blue oscillogram is the signal in channel 2 (source B) and raspberry pink (red) one is the final oscillogram. The present colour differentiation is used for all mathematical operations in Aktakom digital oscilloscopes.
