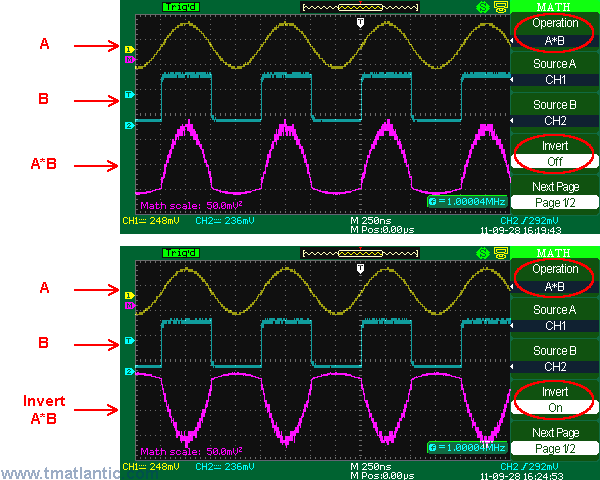

In the picture below there is a multiplication result of channel 1 oscillogram (yellow) by channel 2 oscillogram (blue). The final oscillogram (raspberry pink (red) is located above them.
En la imagen de abajo hay un resultado de la multiplicación del oscilograma del canal 1 (amarillo) por el oscilograma del canal 2 (azul). El oscilograma final (rosa frambuesa (rojo) se encuentra encima de ellos.
