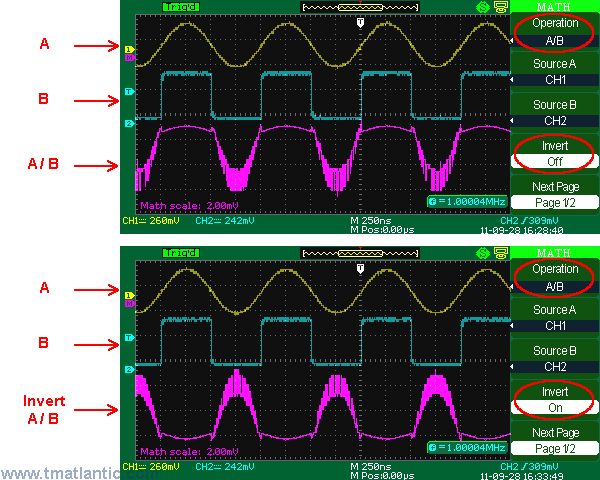

In the picture below there is a division result of channel 1 signal (yellow oscillogram) by channel 2 signal (blue oscillogram). The final oscillogram is raspberry pink (red).
En la imagen de abajo hay un resultado de la división de la señal del canal 1 (oscilograma amarillo) por la señal del canal 2 (oscilograma azul). El oscilograma final es rosa frambuesa (rojo).
