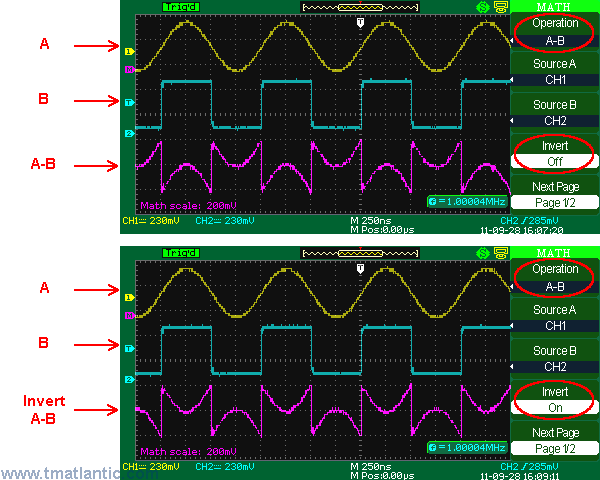

In the picture below there is a result of channel 2 oscillogram (blue) subtracted from channel 1 oscillogram (yellow). The final oscillogram is raspberry pink (red):
