Horizontal delay
D.E.V.I.C.E. is an encyclopedia of terms used by manufacturers of test and measurement equipment. T&M Atlantic created this service to better explain the functionality of instruments it offers, and to highlight the latest developments in the world of measurement equipment. We are using such tools as animation to bring words and pictures to life and to create not just an understanding but also an appreciation for technology that goes into the design of every instrument.
D.E.V.I.C.E. on Request
If you are searching for a particular term or definition, please contact us and our engineers will be glad to explain it to you.
Horizontal delay is a regulated value set in seconds. Horizontal delay is used for signal data registration in the interval fell significantly behind the trigger point. If the signal registration before the trigger point is unnecessary the minimum horizontal delay (i.e. the time between the trigger point and the first sample point) depends on scope specifications and evaluated from several to dozens of nanoseconds.

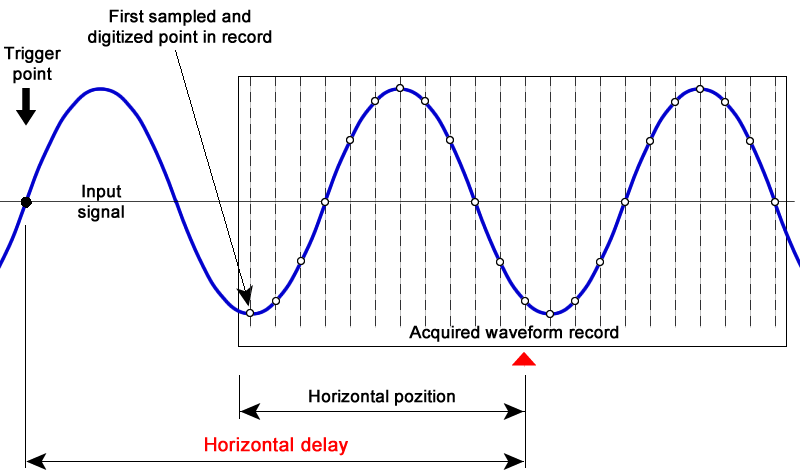

In the animated picture below the horizontal position of the supporting point doesn’t coincide with the samples number necessary for data storage in the device memory before the trigger moment. In this case horizontal delay will be set starting from the trigger point till the supporting point.
