AM-1060 Digital Multimeter

AKTAKOM AM-1060 Digital Multimeter
Click an image to enlarge
 Brand: AKTAKOM
Warranty: 1 year
Manuals:
User's Manual (2.74 Mb)

Retail price: $74.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)
See shipping page for international rates
or contact sales@tmatlantic.com

In stock, 1 left

Buy Add to cart
AKTAKOM AM-1060 Digital Multimeter - Rear view
AKTAKOM AM-1060 Digital Multimeter - Side view
AKTAKOM AM-1060 Digital Multimeter - Accessories
AKTAKOM AM-1060 Digital Multimeter - 0.5 Amp Extra Spare Fuse (fixed inside chassis)

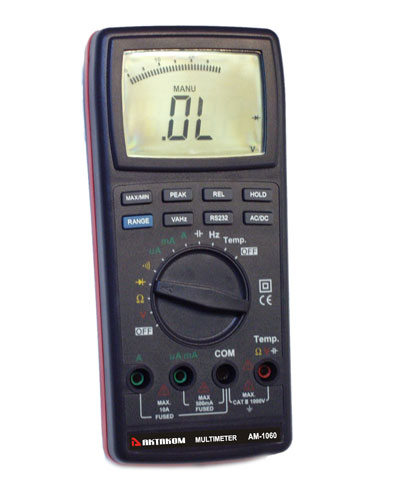

AKTAKOM AM-1060 handheld digital multimeter is designed to offer all the features needed to help you obtain accurate measurements and quickly detect problems in electronics troubleshooting.

AM-1060 handheld digital multimeter (analog of Lutron DM-9960) provides multi function measurement: DCV, ACV, DCA, ACA, Resistance, Capacitance, Frequency, Temperature, Diode, Continuity beeper. AKTAKOM AM-1060 digital multimeter combines wide range, high accuracy and safety.

Large LCD and bar graph make this multimeter especially useful in education: when measuring signals that change over time, the bar graph can be easier to understand than changing numbers.

AM-1060 Digital Multimeter Features and Benefits

  • Meet IEC 1010 CATIII 1000V
  • Large LCD display with bar graph indication and frequency measurement path
  • Max./Min., Peak value, Relative, Data hold
  • Auto range with manual range selection
  • °C/°F thermometer
  • VAHz button, when execute the ACV, ACA function also can measure the frequency of signal
  • 4000 counts A/D, high resolution
  • Built-in fuse for both 10A, mA, uA current range
  • 10MOhm input impedance for voltage circuit
  • Full line optional adapters

DC Voltage (DCV)1000 V
DCV Accuracy±(0.5%+2)
DCV Resolution0.1 mV
AC Voltage (ACV)1000 V
ACV Accuracy±(1.0%+2)
ACV Resolution0.1 mV
DC Current (DCA)10 A
DCA Accuracy±(1.0%+2)
DCA Resolution0.1 μA
AC Current (ACA)10 A
ACA Accuracy±(1.0%+2)
ACA Resolution0.1 μA
Frequency1 Hz...40 MHz
Duty Cycle0.1%...99.9%
Resistance0.1 Ω...40 MΩ
Capacitance1 pF...40 mF
Temperature-20 °C...+750 °C
Temperature resolution1 °C
Diode test+
Continuity check+
Autorange+
Data hold+
Min/Max measurement+
Peak hold+
Relative measurement+
DisplayLCD, 4000 counts
Bar graph indicator+
Power supply1.5 V x 2 batteries
Dimensions7.6 x 3.5 x 1.6 in / 194 x 89 x 40 mm

Accuracy tables

DC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 mV 0.1 mV ±(0.5%+2 digits) ±2.1995 mV mV
4 V 0.001 V ±(0.8%+1 digits) ±0.032992 V V
40 V 0.01 V ±(0.8%+1 digits) ±0.32992 V V
400 V 0.1 V ±(0.8%+1 digits) ±3.2992 V V
1000 V 1 V ±(0.8%+1 digits) ±8.992 V V

AC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 mV 0.1 mV ±(1.0%+2 digits) ±4.199 mV mV
4 V 0.001 V ±(1.0%+2 digits) ±0.04199 V V
40 V 0.01 V ±(1.0%+2 digits) ±0.4199 V V
400 V 0.1 V ±(1.0%+2 digits) ±4.199 V V
1000 V 1 V ±(1.0%+2 digits) ±11.99 V V

DC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 µA 0.1 µA ±(1.5%+2 digits) ±6.1985 µA µA
4000 µA 1 µA ±(1.5%+2 digits) ±61.985 µA µA
40 mA 0.01 mA ±(1.0%+2 digits) ±0.4199 mA mA
400 mA 0.1 mA ±(1.5%+2 digits) ±6.1985 mA mA
10 A 0.01 A ±(1.0%+2 digits) ±0.1199 A A

AC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 µA 0.1 µA ±(1.5%+2 digits) ±6.1985 µA µA
4000 µA 1 µA ±(1.5%+2 digits) ±61.985 µA µA
40 mA 0.01 mA ±(1.0%+2 digits) ±0.4199 mA mA
400 mA 0.1 mA ±(1.5%+2 digits) ±6.1985 mA mA
10 A 0.01 A ±(1.0%+2 digits) ±0.1199 A A

Frequency

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
4 kHz 0.001 kHz ±(0.5%+2 digits) ±0.021995 kHz kHz
40 kHz 0.01 kHz ±(0.5%+2 digits) ±0.21995 kHz kHz
400 kHz 0.1 kHz ±(0.5%+2 digits) ±2.1995 kHz kHz
4 MHz 1 kHz ±(0.5%+2 digits) ±0.021995 MHz MHz
40 MHz 10 kHz ±(0.5%+2 digits) ±0.21995 MHz MHz

Resistance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 Ω 0.1 Ω ±(1.0%+2 digits) ±4.199 Ω Ω
4 kΩ 1 Ω ±(1.5%+2 digits) ±0.061985 kΩ kΩ
40 kΩ 10 Ω ±(1.5%+2 digits) ±0.61985 kΩ kΩ
400 kΩ 100 Ω ±(1.5%+2 digits) ±6.1985 kΩ kΩ
4 MΩ 1 kΩ ±(1.5%+2 digits) ±0.061985 MΩ MΩ
40 MΩ 10 kΩ ±(3.0%+5 digits) ±1.2497 MΩ MΩ

Capacitance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
4 nF 0.001 nF ±(3.0%+1 digits) ±0.12097 nF nF
40 nF 0.01 nF ±(3.0%+1 digits) ±1.2097 nF nF
400 nF 0.1 nF ±(3.0%+1 digits) ±12.097 nF nF
4 µF 0.001 µF ±(3.0%+1 digits) ±0.12097 µF µF
40 µF 0.01 µF ±(3.0%+1 digits) ±1.2097 µF µF
400 µF 0.1 µF ±(3.0%+1 digits) ±12.097 µF µF
4 mF 0.001 mF ±(4.0%+1 digits) ±0.16096 mF mF
40 mF 0.01 mF ±(12.0%+1 digits) ±4.8088 mF mF

Specifications

Function Range Resolution Accuracy
DC Voltage
400mV 0.1mV ±(0.5%reading+2digits)
4V 0.001V ±(0.8%reading+1digits)
40V 0.01V
400V 0.1V
1000V 1V
AC Voltage (50/60Hz) 400mV 0.1mV ±(1.0%reading+2digits)
4V 0.001V
40V 0.01V
400V 0.1V
1000V 1V
DC Current
400uA 0.1uA ±(1.5%reading+2digits)
4000uA 1uA
40mA 0.01mA ±(1.0%reading+2digits)
400mA 0.1mA ±(1.5%reading+2digits)
10A 0.01A ±(1.0%reading+2digits)
AC Current (50/60Hz) 400uA 0.1uA ±(1.5%reading+2digits)
4000uA 1uA
40mA 0.01mA ±(1.0%reading+2digits)
400mA 0.1mA ±(1.5%reading+2digits)
10A 0.01A ±(1.0%reading+2digits)
Resistance 400Ω 0.1Ω ±(1.0%reading+2digits)
4kΩ 1Ω ±(1.5%reading+2digits)
40kΩ 10Ω
400kΩ 100Ω
4MΩ 1kΩ
40MΩ 10kΩ ±(3.0%reading+5digits)
Continuity buzzer: <20Ω ; Max Voltage 500V (DC) / 250V (AC rms)
Capacitance 4nF
0.001nF

±(3.0%reading+1digits)
40nF
0.01nF
400nF
0.1nF
4uF 0.001uF
40uF
0.01uF
400uF 0.1uF
4mF 0.001mF ±(4.0%reading+1digits)
40mF 0.01mF ±(12.0%reading+1digits)
Frequency (response 1.5V...5V)
4kHz
0.001kHz ±(0.5%reading+2digits)
40kHz 0.01kHz
400kHz 0.1kHz
4MHz 1kHz
40MHz 10kHz
Temperature
(K-type)
-20°C...300°C 1°C ±(1.0%reading+2digits)
301°C...750°C 1°C ±(3.0%reading)

General specifications

  • Display: 2.6x2in / 65x48mm large LCD (4000 counts) display with bar graph indication and frequency measurement path
  • Range selection: Auto range with manual range selecting
  • Data hold: To freeze the display reading on the LCD display
  • Memory recall: Records Maximum & Minimum readings with recall
  • Peak value: To measure the signal peak value (>1ms)
  • Relative measurement: To offset the measurement value
  • Polarity: Automatic Switching, "-" indicates negative polarity
  • Zero adjustment: Automatic
  • Sampling time: Approx. 0.5 to 1 second
  • Input impedance: 10Mohm.
  • Operating temperature: 0°C to 50°C (32°F to 122°F)
  • Operating humidity: Max. 80%RH.
  • Power supply: 1.5V battery x 2 PCs UM-4/AAA/Micro/R03 type
  • Power consumption: Approx. DC 1.7mA
  • Dimensions: 7.3x3.5x1.6in / 185x88x40mm
  • Weight: 0.77lb / 350g

Included accessories

  • Red and Black Test Lead
  • 0.5 Amp Spare Fuse
  • User Manual

Optional accessories

  • Full line adapters: ACA/DCA current adapter, adapter, Tachometer adapter, Humidity adapter, Pressure adapter, Light adapter, EMF adapter, Sound level adapter, High voltage probe
  • Soft carrying case
  • Temperature probe

DMM basic measurement functions

As an example: oscilloscope diagnostic board AKTAKOM AEE-1017-V1 testing modes are given.

AC/DC Voltage (parallel connection to the circuit) & Current (serial! connection to the break in circuit)

e.g.: sine output (3V/5kHz)

AC Voltage Line Frequency ("Hz" button)

e.g.: "FM" output (5kHz)

Resistance measurement

e.g.: 4.5 kOhm resistor

Capacitance

e.g.: SMD capacitor

Frequency (logic)

e.g.: Counter impulse frequency

Continuity (sound buzzer)

e.g.: between different "ground" points of the circuit

Temperature (K type probe)

e.g.: micro-chip surface temperature

Relative measurements (offset)

e.g.: leads resistance compensation

Diode test

e.g.: diode forward and backward Voltage drop

Frequently Asked Questions

  • Does AKTAKOM AM-1060 multimeter have auto power off function?
  • How can I deactivate Auto Power Off function of AKTAKOM AM-1060 multimeter?
  • How DMM is designed (disassembled view)
  • How to replace or install the batteries?

    • Does AKTAKOM AM-1060 multimeter have auto power off function?

    Yes, it does. There is Auto Power Off function in AM-1060: the device power automatically goes off if you do not use the device within 15 minutes. 30 seconds before the device powers off it will make 3 short sound signals and before powering off – one more long signal. To start the operation again press any button or use the rotary switch.


    Up

    How can I deactivate Auto Power Off function of AKTAKOM AM-1060 multimeter?

    To deactivate Auto Power Off function press RS232 button.


    Up

    How DMM is designed (disassembled view)

    Front panel covers LCD, button board, rotary function switch gear and main plated circuit board:

    *Rubber strip between the back and front chassis covers protects from water and dust.

    Protective fuses are mounted near the inputs and sound buzzer is placed behind the LCD.

    *There is also an extra fuse fixed at the buttom (for several models)
    Up

    How to replace or install the batteries?

    When the batteries become exhausted or drop below the operating voltage, “BAT” indicator will appear in the LCD display. In this case the battery should be replaced, however in-spec. measurements may still be made for several hours after "Low battery indicator" appears before the instrument become inaccurate.

    WARNING! To avoid electric shock, disconnect the test leads from any source of voltage before removing the battery cover.

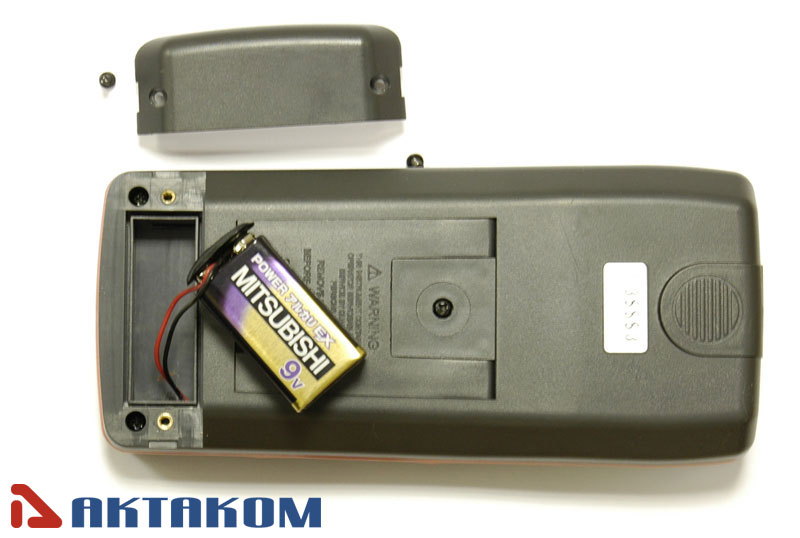

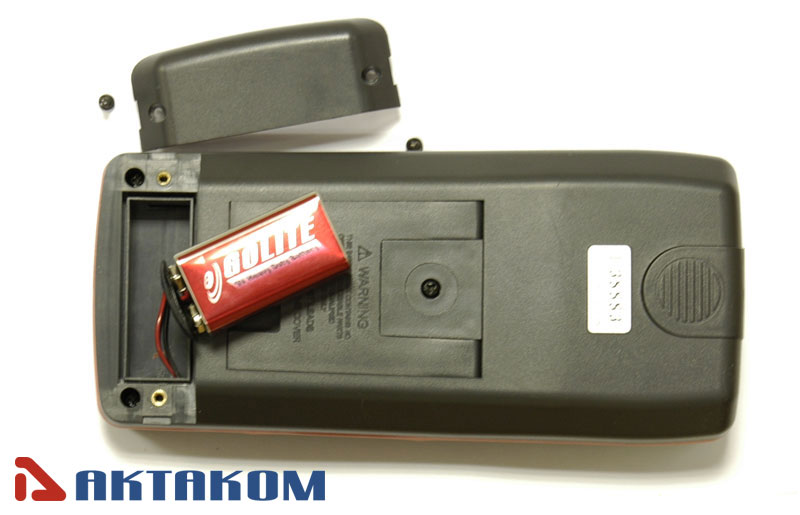

    "DC 9V" type 006 P (e.g. AMM-1061)

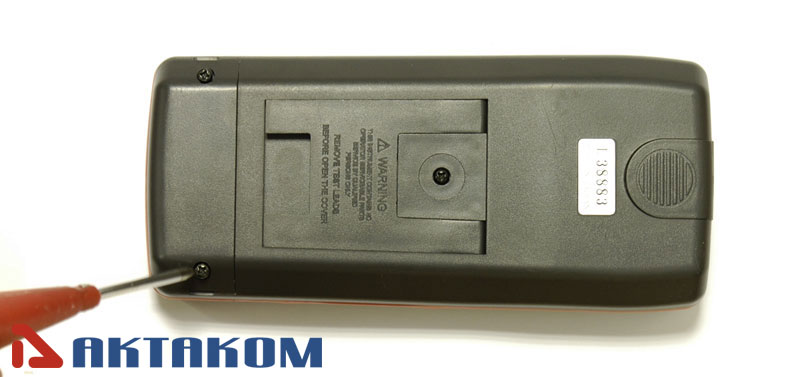

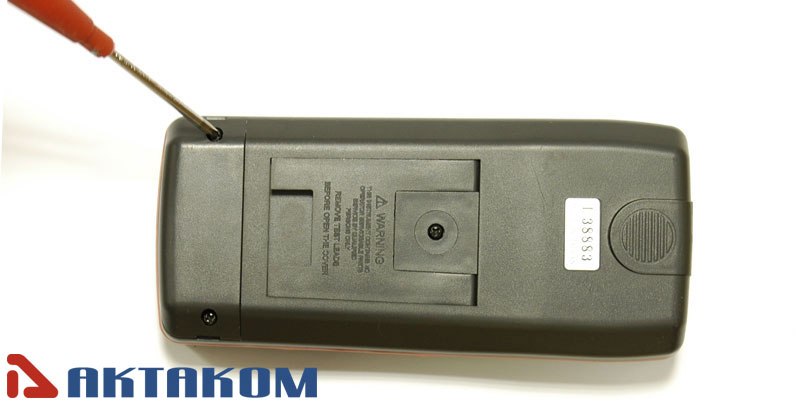

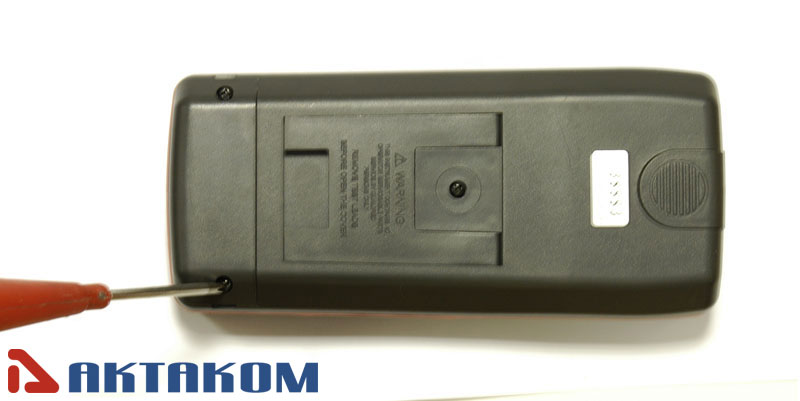

    1. Open the battery cover by loosing the screws with the cross-point screwdriver

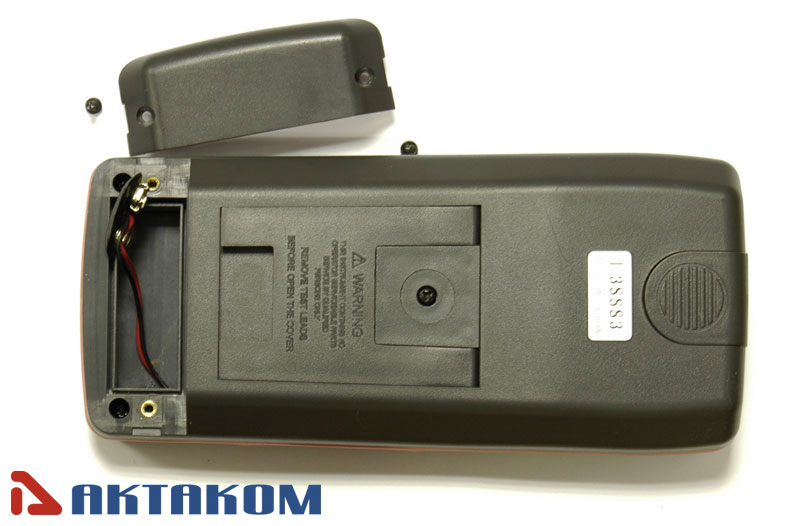

    2. Carefully disconnect the old battery

    3. Connect the new battery of the proper type to the power leads

    4. Close the battery cover and reinstate the cover

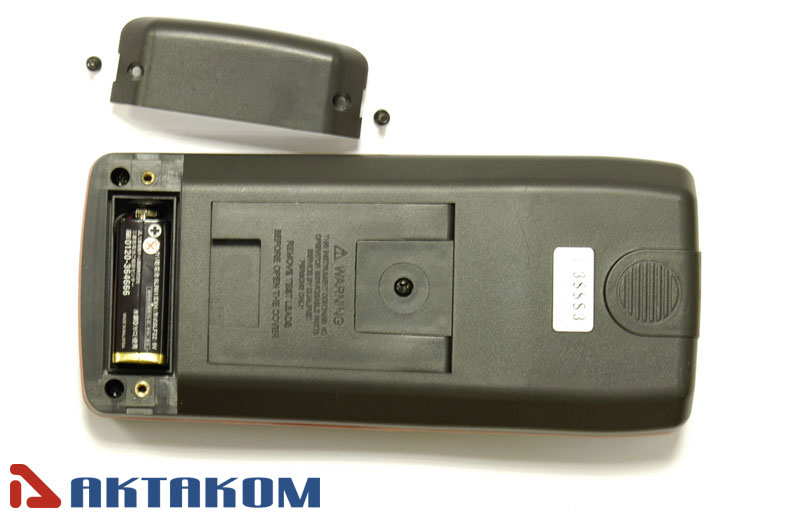

    "DC 1.5V" type AAA (e.g. AMM-1060)

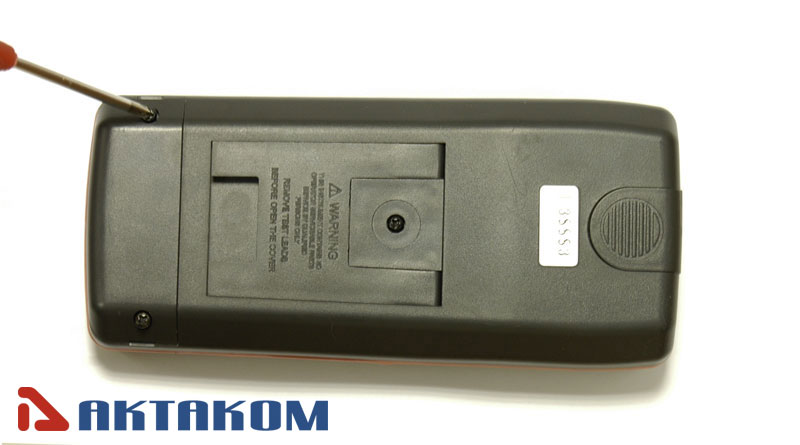

    1. Open the battery cover by loosing the screws with the cross-point screwdriver

    2. Carefully pull out the buttery carrier and take off the old batteries

    3. Plug the new batteries of the proper type in the holder and put it back

    4.Close the battery cover and reinstate the cover

    After completion make sure you don’t have any spare parts

    If you do find spare parts, you must start all over


    Up

    AKTAKOM AM-1060 ofrece multiples funciones de medición como DCV, ACV, DCA, ACA, resistencia, capacitancia, frecuencia, temperatura, testeo de diodos y zumbador de continuidad.

    Características

    • Cumple con la norma IEC 1010 CAT III 1000V.
    • Monitor digital LCD con indicador gráfico de barras.
    • Detección de picos con Máximo y mínimo, alternos y retención de datos.
    • Auto rango con selección manual de los mismos.
    • Termometro °C/°F
    • Botón VAHz, cuando se ejecuta la función de ACV, ACA y también puede medir la frecuencia de la señal.
    • Alta resolución con 4000 cuentas A/D.
    • Fusible incorporado para los rangos de corriente 10 A, mA, uA.
    • Impedancia de entrada de 10 M Ohm para el circuito de tensión.
    • Línea completa de adaptadores opcionales.
