AG-2062F Waveform Generator

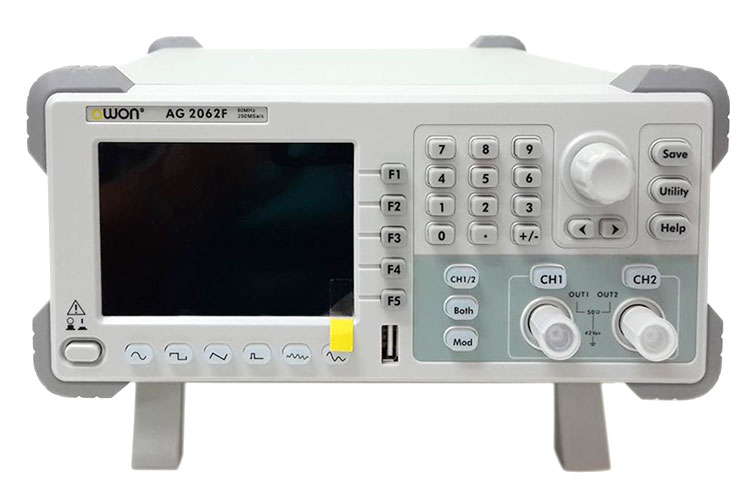

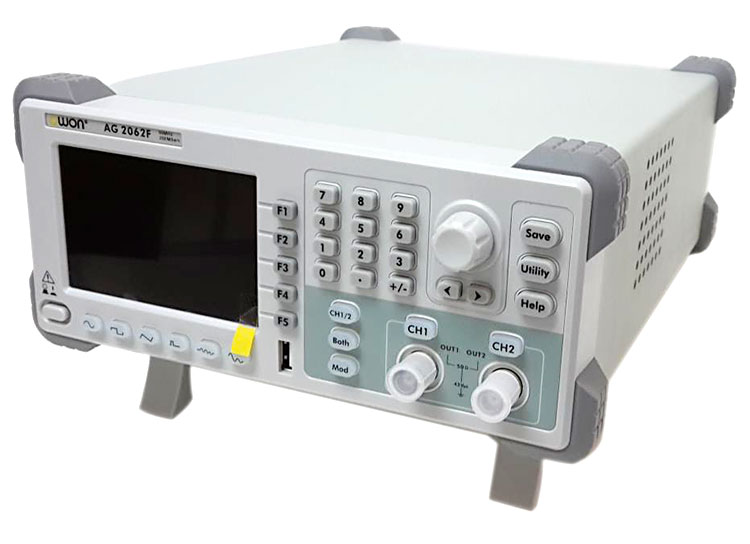

OWON AG-2062F Waveform Generator
Click an image to enlarge
Brand: OWON
Warranty: 1 year
USB Host

Retail price: $399.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact

In stock, 1 left

Buy Add to cart

AG2062F is dual-channel arbitrary waveform generator.


  • Advanced DDS technology, 60MHz frequency output
  • 250MS/s sample rate, and 1µHz frequency resolution
  • Vertical Resolution: 14 bits, 2 pts to 1M pts arb waveform length
  • Comprehensive waveform output: 5 basic waveforms, and 48 built-in arbitrary waveforms
  • Comprehensive modulation functions: AM, FM, PM, FSK, PWM, Sweep, and Burst
  • High-accuracy frequency counter integrated, supported range 100mHz - 200MHz
  • Supported SCPI
  • 4 inch high resolution (480 x 320 pixels) TFT LCD display

Output frequency60 MHz
Sample rate250 MSa/s
Memory depth1 Mpts
WaveformStandard signal of arbitrary waveform generator: Sine, Standard signal of arbitrary waveform generator: Square, Standard signal of arbitrary waveform generator: Noise, Pulse, Ramp, Standard signal of arbitrary waveform generator: EXP, Arbitrary
ModulationAmplitude Modulation, Frequency modulation, Phase Modulation, FSK - frequency shift keying
Amplitude1 mVpp...10 Vpp
Special featuresDDS, frequency counter
InterfaceUSB Host, USB Device
Display4 inch (480 x 320 pixels) TFT LCD
Power supply110/220 V
Dimensions9.3 x 4.3 x 11.6 in / 235 x 110 x 295 mm


  • Channel: dual
  • Frequency Output: 60MHz
  • Sample Rate: 250MS/s
  • Vertical Resolution: 14 bits

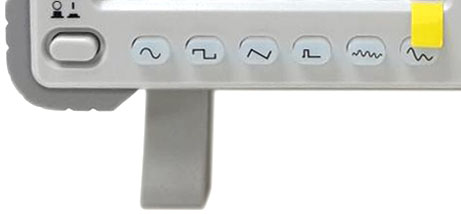

  • Standard Waveforms: Sine, Square, Pulse, Ramp, and Noise
  • Arbitrary Waveform Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 48 built-in waveforms, and user-defined arbitrary waveform

Frequency (resolution: 1µHz)

  • Sine: 1μHz - 60MHz
  • Square: 1μHz - 30MHz
  • Pulse: 1μHz - 10MHz
  • Ramp: 1μHz - 1MHz
  • Noise: 50MHz (-3dB) (typical)
  • Arbitrary Waveform: 1μHz - 10MHz


  • Amplitude 1m Vpp - 10 Vpp (50Ω), 1m Vpp - 20 Vpp (high impedance)
  • Resolution 1mVpp or 14 bits
  • DC Offset Range (AD+DC) ±5V (50Ω), ±10V (high impedance)
  • DC Offset Range Resolution 1mV Load Impedance 50Ω (typical)
  • Load Impedance 50Ω (typical).

Arbitrary Waveform

  • Wave Length: 2 pts to 1M pts
  • Sample Rate: 250MS/s
  • Vertical Resolution: 14 bits
  • Non-volatile Memory: 26 waveforms


  • Modulation Waveform: AM, FM, PM, FSK, Linear / Logarithm Sweep and Burst
  • Modulation Frequency: 2mHz to 20.00KHz (FSK 1μHz - 100KHz)


  • Function: Frequency Period, +Width, -Width +Duty, and -Duty
  • Frequency Range: 100mHz ~ 200MHz
  • Frequency Resolution: 6 digits

Power Amplifier Specification (Optional)

  • IBandwidth DC - 100 kHz
  • Gain X 10
  • Max Output Power 10 W
  • Max Output Voltage 22 Vpp

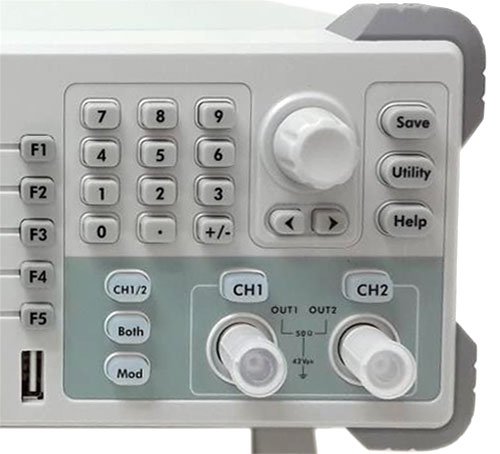

Input / Output

  • Display 4 inch (480 x 320 pixels) TFT LCD

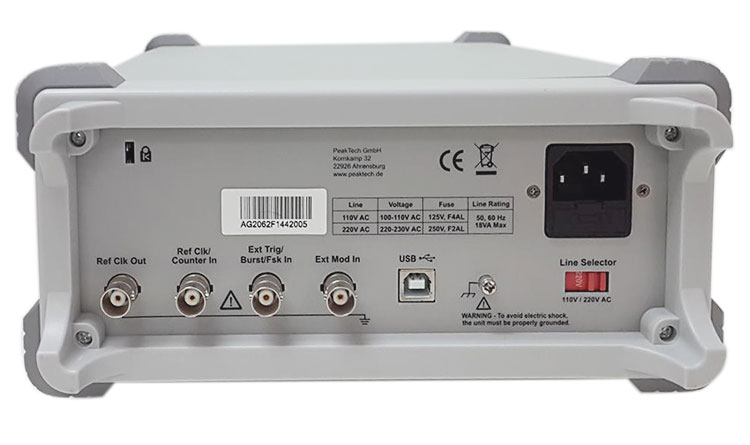

  • Type: counter, external modulation, input / output, external trigger, external reference clock

Communication Interface

  • USB host,
  • USB device,
  • RS-232 (option)

Dimension (WxHxD): 9.3 x 4.3 x 11.6 in / 235 x 110 x 295 mm
Weight (without package): 105.8 oz / 3 kg


  • User Manual
  • CD
  • Power cord
  • USB cable
  • Q9 BNC cable

AG2062F es un generador de forma de onda arbitraria de doble canal.


  • Tecnologнa DDS avanzada, salida de frecuencia de 60MHz
  • Frecuencia de muestreo de 250MS/s, y resoluciуn de frecuencia de 1μHz
  • Resoluciуn vertical: 14 bits, 2 pts a 1M pts de longitud de forma de onda arb
  • Salida de forma de onda completa: 5 formas de onda bбsicas y 48 formas de onda arbitrarias incorporadas
  • Funciones de modulaciуn completas: AM, FM, PM, FSK, PWM, Sweep y Burst
  • Contador de frecuencia de alta precisiуn integrado, rango admitido 100 mHz - 200 mHz
  • SCPI soportado
  • Pantalla TFT LCD de 4 pulgadas de alta resoluciуn (480 x 320 pнxeles)
