ASE-1115 Soldering Station

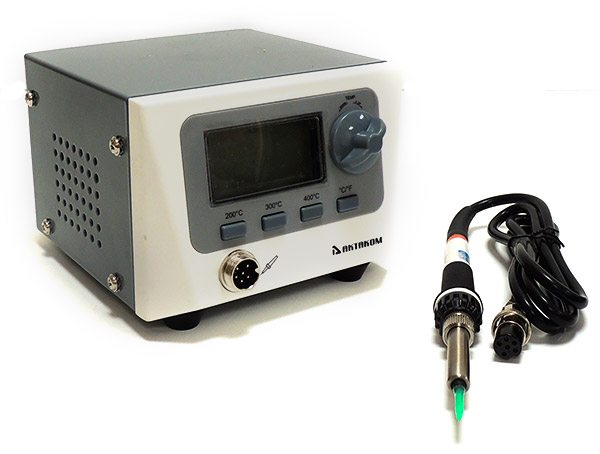

AKTAKOM ASE-1115 Soldering Station
Click an image to enlarge
Brand: AKTAKOM
Manuals:
User's Manual (243.04 Kb)

Retail price: $69.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

Sold out

Subscribe

AKTAKOM ASE-1115 Soldering Station is designed for lead free soldering especially.

Heating up from the room temperature to 662°F (350°C) in 30 seconds.

AKTAKOM ASE-1115 soldering station (analog of ZD-916Z) is used in the fields of electronic research, teaching and production, especially in the repairing and soldering on the electronic appliances and communication equipment.

The soldering iron tool is controlled automatically by the micro-processor. The digital control electronics and high-quality sensor and heat exchange system guarantee precise temperature control at the soldering tip. The highest degree of temperature precision and optimal dynamic thermal behavior under load conditions is obtained by the quick and accurate recording of the measured values in a closed control circuit, and this design is especially for the lead-free production technics.

Specifications

  • Channel: 1 assembling channel
  • Max. station power: 60W

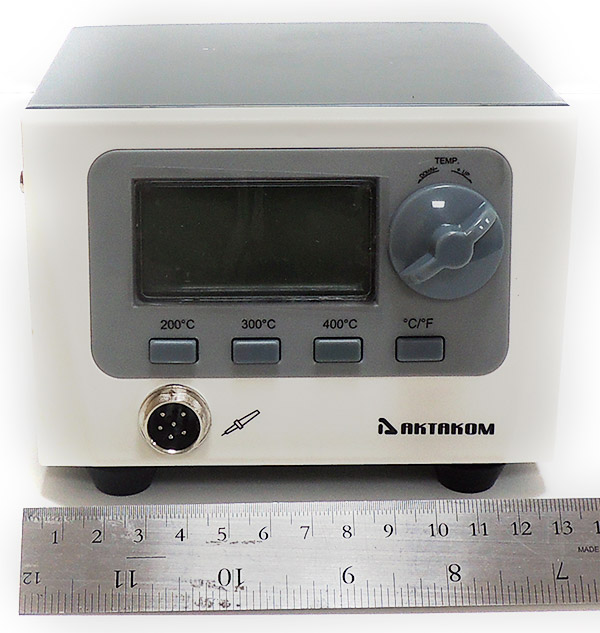

  • LCD:
    - shows the actual temperature of the soldering tip
    - shows the setting temperature
  • Button type control
  • Temperature range: 320°F - 896°F (160°C - 480°C)
  • Max. power of the soldering iron: 60W
  • Soldering iron voltage supply: 24V
  • Ceramic heating element
  • 3 preset temperature types: 392°F (200°C), 572°F (300°C), 752°F (400°C)

Safety instructions

Take care of yourself!

  1. Please read user manual carefully before using the instrument.
  2. Do not use the device if there is visible damage.
  3. Repair and maintenance of the device can be done only by a qualified specialist of the service center.
  4. Before connecting the instrument to the electrical network, observe all known precautions, and make sure that the grounding system is to avoid electric shock.
  5. Use only those accessories that are intended for use with this device.
  6. While working, do not touch the metal parts near the tip of the soldering iron.
  7. After completion of the work, it is necessary to install the soldering gun in the regular holder of the soldering gun.

Frequently Asked Questions

  • Why a «de-tinned» tip fails to work?
  • How to clean the tip?
  • How to care and use of the soldering tip?
  • What temperature should use for soldering?

  • Why a «de-tinned» tip fails to work?

    A de-tinned tip is one which cannot wet with solder. This exposes the plating to oxidation and degrades the heat transfer efficiency of the tip.

    The de-tinning is caused by:

    1) Failure to keep the tip covered with fresh solder while not in use.

    2) High tip temperatures.

    3) Insufficient melting in soldering operations.

    4) Wiping the tip on dirty or dry sponges and rags (Always use a clean, wet, industrial grade, sulfur-free sponge).

    5) Impurities in the solder, iron plating, or on the surfaces to be soldered.


    Up

    How to clean the tip?

    Caution! Never file the tip to remove oxide.

    1. Set the temperature to 250°C.
    2. When the temperature stabilizes, clean the tip with the cleaning sponge and check the condition of the tip.
    3. If there is black oxide on the solder-plated portion of the tip, apply new solder (containing flux) and wipe the tip on the cleaning sponge. Repeat until the oxide is completely removed. Coat with new solder. The solder protects the tip from oxidation and prolongs the life of the tip.
    4. If the tip is deformed or heavily eroded, replace it with a new one.

    Up

    How to care and use of the soldering tip?

    Tip’s temperature High soldering temperatures can degrade the tip. Use the lowest possible soldering temperature. The excellent thermal recovery characteristics ensure efficient and effective soldering event at low temperatures. This also protects the sensitive components from thermal damage. Cleaning Clean the tip regularly with a cleaning sponge, as oxides and carbides from the solder and flux can form impurities on the tip. These impurities can result in defective joints or reduce the tip's heat conductivity. When using the soldering iron continuously, be sure to loosen the tip and remove all oxides least once a week. This helps prevent reduction of the tip temperature. When not in use Never leave the soldering iron sitting at high temperature for long periods of time, as the tip's solder plating will be covered with oxide, which can greatly reduce the tip's heat conductivity. After use Wipe the tip and coat it with fresh solder. This helps to prevent tip oxidation.


    Up

    What temperature should use for soldering?

    600 - 650°F (316 - 343°C) is a good place to start for lead-based solder and 650 - 700°F (343 - 371°C) for lead-free solder.

    Note: if clots form, the temperature is too low.


    Up

    La estación de soldadura ASE-1115 está diseñada especialmente para soldadura sin plomo.

    Calentamiento desde la temperatura ambiente a 662 ° F (350 ° C) en 30 segundos.

    Este dispositivo se utiliza en los campos de la investigación, la enseñanza y la producción electrónicas, especialmente en la reparación y soldadura de aparatos electrónicos y equipos de comunicación.

    El soldador es controlado automáticamente por el microprocesador. El control digital electrónico, el sensor de alta calidad y el sistema de intercambio de calor garantizan un control preciso de la temperatura en la punta del soldador. El grado más alto de precisión de temperatura y el comportamiento térmico dinámico óptimo en condiciones de carga se obtiene mediante el registro rápido y preciso de los valores medidos en un circuito de control cerrado, y este diseño es especialmente para las técnicas de producción sin plomo.
