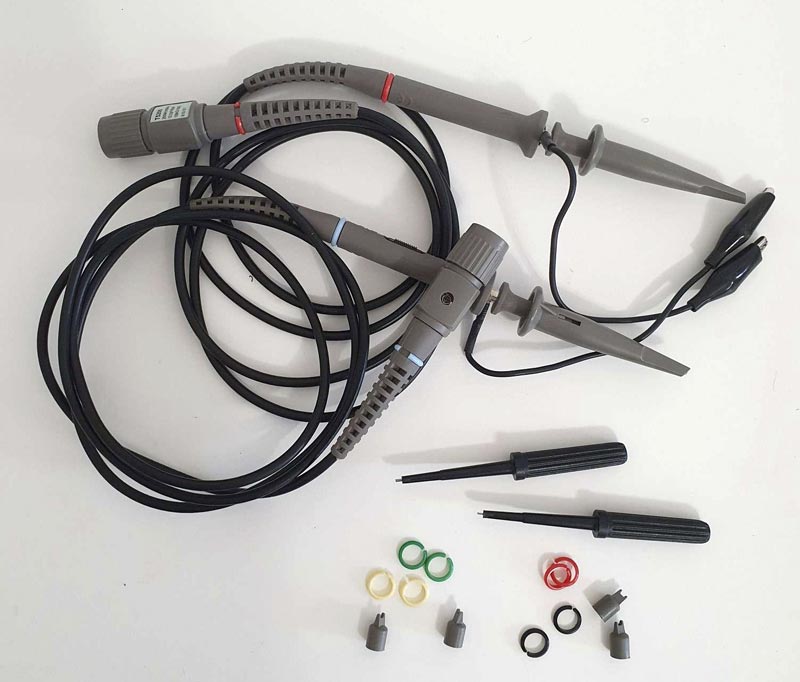

T5100 Oscilloscope Probe 100MHz 1x/10x

T5100 Oscilloscope Probe 100MHz 1x/10x
Click an image to enlarge

Retail price: $14.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

In stock, 1 left

Buy Add to cart

T-5100 Oscilloscope Probes set of 2
10X: 600Vpk
1X: 200Vpk
Bandwidth: 100MHz
Rise time: 3.5ns
Attenuation Ratio: 1X and 10X
Input Resistance: 1 MΩ / 10MΩ±2%
Input Capacitance: 1X: 85pF ~ 135pF / 10X: 16 ~ 20 pF
Maximum Input: 1X: 200 Working voltage (Vp-p) / 10X: 600 Working Voltage (Vp-p)
Compensation Range: 10pF ~ 35pF
Operating Environment: -10C ~ +50C / 0 ~ 85% Relative Humidity
