PS2002H Switching DC Power Supply

PS2002H Switching DC Power Supply
Click an image to enlarge

Retail price:$100.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact

In stock, 1 left

BuyAdd to cart

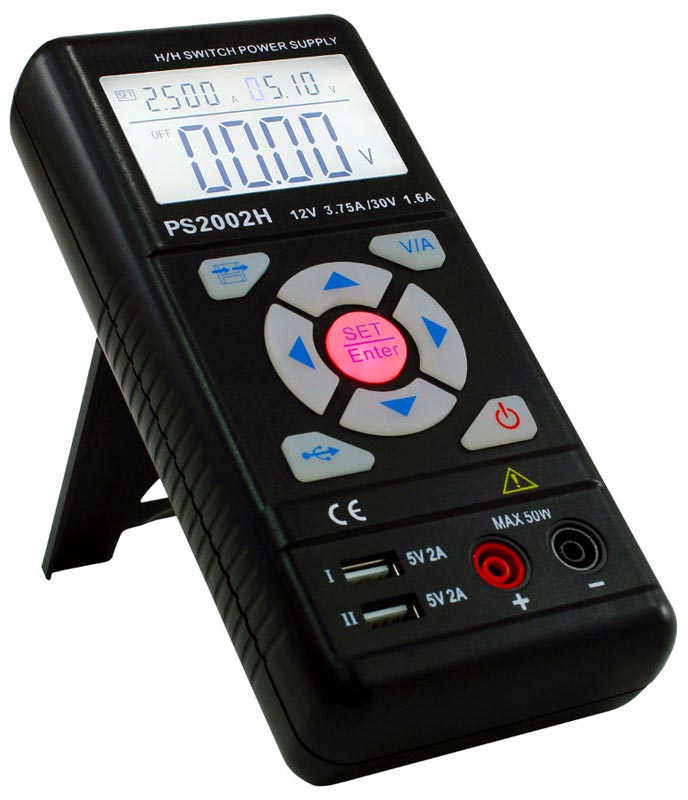

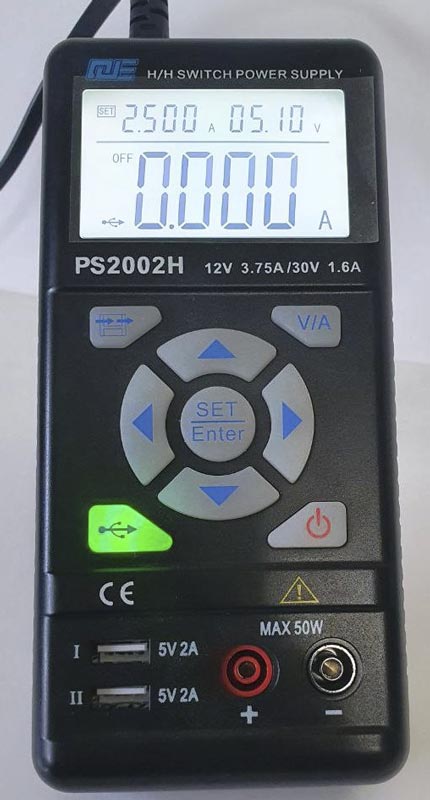

PS2002H switching DC power supply is compact and lightweight and is suitable for both laboratory and industrial use. This single channel digital DC power supply provides output voltage up to 30V and current up to 1.6A or 12V at 4A. Also there are 2 USB ports (5V, 2A) on the front panel that provide convenient charge capability for mobile devices, which is very useful when repairing or developing mobile phones and other USB powered devices.

PS2002H switching DC power supply supports both constant voltage and constant current modes.


  • High precision
  • CC and CV modes
  • 4 digits LCD display
  • Output short circuit protection
  • High speed dynamic response, once power cut-off, automatically protect under power off status
  • The output has the automatic recognition of USB charging port, can be calibrated via software operation

Output voltage (V)30
Output voltage accuracy(0.01% + 3 mV)
Output current (A)4
Output current accuracy(0.2% + 6 mA)
Output power50 W
Power supply110 V / 220 V
Dimensions254 x 76.2 x 44.5 mm / 10 x 3 x 1.75 in


  • Output DC Voltage: 0.0V 30.0V
  • Output DC Current: 0.00V 4.00 A
  • Input Voltage: 110V/AC, 60Hz or 220V 50Hz
  • Voltage and Current adjustment
  • Voltage regulation: CV < 0.01% + 3mV, CC < 0.2% + 6 mA
  • Load regulation: CV < 0.01% + 3mV, CC < 0.02% + 3mA
  • Ripple and noises: CV < 1 mV rms, CC < 3 mA, rms
  • Operating Temperature: 0 - 102 F (0 - 40 C), Relative Humidity: < 80%
  • LCD Accuracy is within 2.5%
  • Size: 254 x 76.2 x 44.5 mm / 10 x 3 x 1.75 in
  • Weight: approx. 1.2 lbs

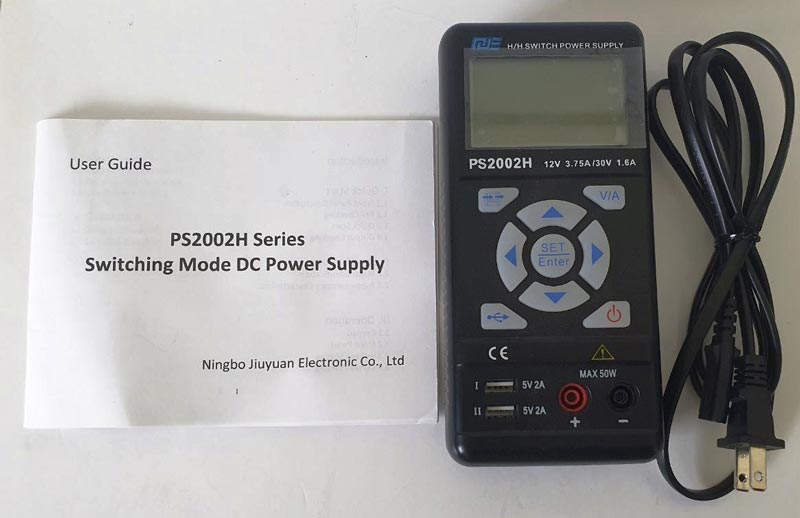

Included accessories

  • Power cord
  • User manual

La fuente de alimentacin conmutada de CC PS2002H es compacta y liviana y es adecuada tanto para uso industrial como de laboratorio. Esta fuente de alimentacin de CC digital de un solo canal proporciona un voltaje de salida de hasta 30 V y una corriente de hasta 1,6 A o 12 V a 4 A. Tambin hay 2 puertos USB (5 V, 2 A) en el panel frontal que brindan una conveniente capacidad de carga para dispositivos mviles, lo cual es muy til al reparar o desarrollar telfonos mviles y otros dispositivos alimentados por USB.

La fuente de alimentacin de CC de conmutacin PS2002H admite modos de voltaje constante y corriente constante.


  • alta precisin
  • Modos CC y CV
  • Pantalla LCD de 4 dgitos
  • proteccin contra cortocircuitos de salida
  • Respuesta dinmica de alta velocidad, una vez que se corta la energa, protege automticamente bajo el estado de apagado
  • La salida tiene el reconocimiento automtico del puerto de carga USB, se puede calibrar a travs de la operacin del software
