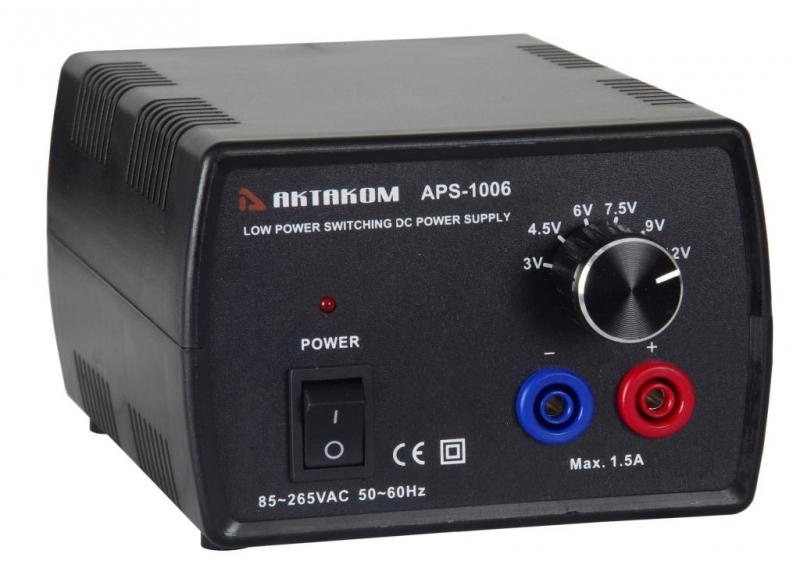

AKTAKOM APS-1006 is a low power switching DC power supply with 6 fixed output voltages (3V, 4.5V, 6V, 7.5V, 9V, 12V) and over current protection. This instrument is an ideal solution for education, laboratory, factory, electronic appliance, maintenance etc.
APS-1006 DC power supply (analog of S7-1201) has compact structure, double insulation, safety and easy operation, wide voltage import, good performance.
Specifications
- Input voltage: 85~265VAC 50/60Hz
- Output voltage: 3V, 4.5V, 6V, 7.5V, 9V, 12V
- Output current: 1.5A
- Load regulation: 20mV
- Line regulation: 15mV
- Ripple&Noise: 1.5mVrms, 5mVpp
- Output accuracy: ±5%
- Protection: Over current
- Dimensions: 110 x 74 x140 mm / 4.3 x 2.9 x 5.5 in
- Weight: 0.3 kg / 10.6 oz
Included accessories

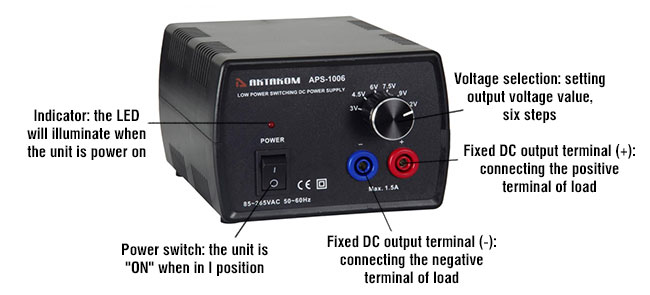

Controls of APS-1006 Power Supply

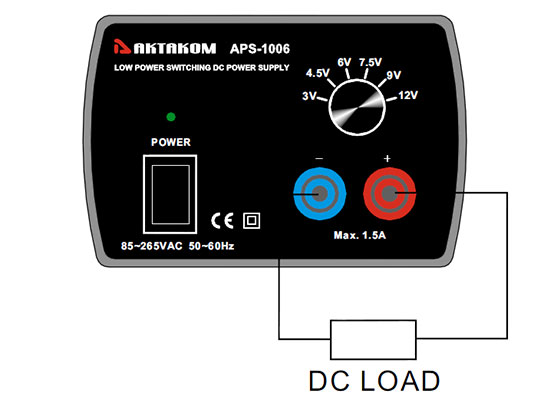

Load connection of APS-1006 Power Supply
Frequently Asked Questions
What are common signs of overload or short circuit?
What do CV and CC mean?
What is the difference between a linear and a switching power supply?
What is a DC power supply?
May I use AKTAKOM power supplies to charge accumulators?
What are common signs of overload or short circuit?
|
-
Sudden switch from CV to CC mode
-
Output voltage drops
-
Protection indicator lights up
In such cases, disconnect the load and verify settings before continuing.
Up
|
What do CV and CC mean?
|
-
CV (Constant Voltage): The voltage stays fixed, current varies with load.
-
CC (Constant Current): The current stays fixed, voltage changes to maintain that current.
The power supply automatically switches between these modes as load conditions change.
Up
|
What is the difference between a linear and a switching power supply?
|
-
Linear power supply: Low noise, stable output, ideal for sensitive analog electronics.
-
Switching power supply: Smaller, lighter, more efficient, but produces higher noise.
Up
|
What is a DC power supply?
|
|
A DC power supply converts AC input from the mains into a stable direct current (DC) output. It’s used to power electronic circuits, charge batteries, and perform testing or calibration in research and manufacturing environments.
Up
|
May I use AKTAKOM power supplies to charge accumulators?
|
AKTAKOM power supplies can’t be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device.
Up
|
El modelo AKTAKOM APS-1006 es una fuente de alimentación DC de conmutación de baja potencia con 6 salidas de voltajes fijas (3V, 4.5V, 6V, 7.5V, 9V, 12V) y protección contra sobretensión.
La unidad tiene una estructura compacta, doble aislamiento, una operación segura y fácil, importación ancha de voltaje, buen rendimiento, aspecto nuevo, etc.
