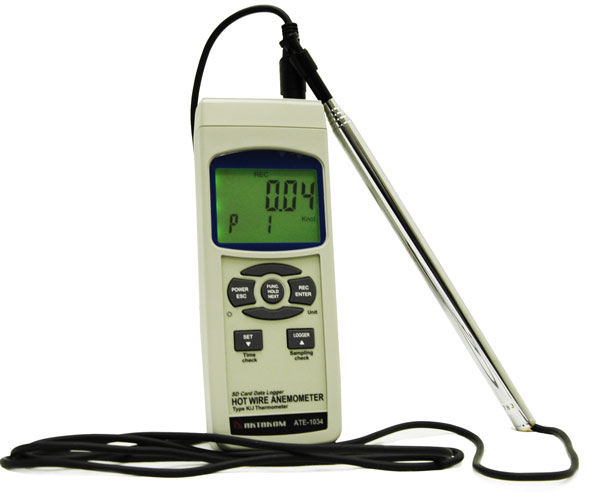

ATE-1034 Hot Wire Anemometer-Thermometer with Excel-formatted Data Logging SD Card and "K/J" Port

AKTAKOM ATE-1034 Hot Wire Anemometer-Thermometer with Excel-formatted Data Logging SD Card and "K/J" Port
Click an image to enlarge
Brand: AKTAKOM
Warranty: 1 year
Manuals:
User's Manual (670 Kb)

USB (through interface converter) RS-232 (Recommended Standard 232)

Real time SD memory card Datalogger!

Retail price: $299.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

Buy Add to cart

ATE-1034 Hot Wire Anemometer-Thermometer with Excel-formatted Data Logging SD Card and "K/J" Port is a combination of hot wire and standard thermistor; the device makes rapid and precise measurements even at low air velocity value.

Features:

  • Slim probe, ideal for grilles & diffusers
  • Air velocity: m/s, Ft/min, Km/h, Knot, Mile/h
  • Air temperature (°C, °F)
  • Air Temp. used thermistor sensor, fast response time
  • Type K, Type J thermocouple thermometer
  • Real time SD memory card Datalogger, Built-in Clock and Calendar, real time data recorder, sampling time set from 1 second to 3600 seconds
  • Manual datalogger is available (set the sampling time to 0), during the use of manual datalogger function it can set the different position (location) No. (position 1 to position 99)
  • Innovation and easy operation, computer doesn’t need any extra software, after the datalogger use just take the SD card away from the meter and plug in the SD card into the computer, it can download all of the measured value with the time information (year/month/date/hour/minute/second) to the Excel directly; then users can make the further data or graphic analysis by themselves
  • SD card capacity: 1 GB to 16 GB
  • LCD with green light backlight, easy reading
  • Can default auto power off or manual power off
  • Data hold, record max. and min. reading
  • Microcomputer circuit, high accuracy
  • Power by UM3/AA (1.5 V) x 6 batteries or DC 9V adapter
  • Interface: RS-232, USB via interface converter
  • Separate probe, easy for operation of different
  • measurement environment
  • Applications: environmental testing, air conveyors, flow hoods, clean rooms, air velocity, air balancing, fans/motors/blowers, furnace velocity, refrigerated case, paint spray booths

Temperature-100...1300 °C / -73.3...2372 °F
Temperature resolution0.1 °C / 0.1 °F
Temperature sensor typeType K thermocouple, Type J thermocouple
Air velocity0.2...25.0 m/s
Air velocity accuracy±(5%+0.1 m/s)
Air velocity resolution0.01 m/s
Air velocity sensor typeTiny glass bead thermistor
Air temperature0...50 °C / 32...122 °F
Air temperature accuracy±0.8 °C / ±1.5 °F
Air temperature resolution0.1 °C / 0.1 °F
Data hold+
Min/Max measurement+
Special featuresSD memory card 1 GB to 16 GB, Datalogger
InterfaceUSB (through interface converter), RS-232
DisplayLCD
Power supply6 x 1.5 V battery
DimensionsInstrument: 8 x 3 x 1.5 in / 203 x 76 x 38 mm, Probe: 0.47 in / 12 mm Dia

Specifications:

General Specifications:

Circuit: Custom microprocessor LSI circuit

Display:

  • LCD size: 2.1in x 1.5in / 52mm x 38mm
  • LCD with green backlight (ON/OFF)

Measurement:

Air velocity:

  • m/S (meters per second)
  • Km/h (kilometers per hour)
  • Ft/min (FPM, feet per minute)
  • Knots (nautical miles per hour)
  • Mile/h (mph, miles per hour)

Air temperature: °C, °F
Type K/ Type J thermometer: °C, °F

Measurement:

Air velocity:

  • m/s (meters per second)
  • Km/h ( kilometers per hour )
  • Ft/min ( FPM, feet per minute )
  • Knots ( nautical miles per hour )
  • Mile/h ( mph, miles per hour )

Air temperature: °C, °F

Type K/ Type J thermometer: °C, °F

Sensor Structure:

  • Air velocity & Air flow: Tiny glass bead thermistor
  • Air temperature: Thermistor
  • Type K, Type J thermometer: Type K/J thermocouple probe, Probes are optional

Datalogger / Sampling Time / Setting range:

Auto:

1 second to 3600 seconds
Sampling time can set to 1 second, but memory data may loss

Manual:

Push the data logger button once will save data one time
Set the sampling time to 0 second
Manual mode, can also select the 1 to 99 position (Location) no.

Memory Card: SD memory card. 1 GB to 16 GB; It recommend use memory card ≤ 4 GB

Advanced setting:

  • Set clock time (Year/Month/Date, Hour/Minute/ Second)
  • Decimal point of SD card setting
  • Auto power OFF management
  • Set beep Sound ON/OFF
  • Set thermometer type to Type K or Type J
  • Set temperature unit to °C or °F
  • Set sampling time
  • SD memory card Format

Temperature compensation: Automatic temp. compensation for the Anemometer function and the type K/J thermometer

Data Hold: Freeze the display reading

Memory Recall: Maximum & Minimum value

Sampling Time of Display: Approx. 1 second

Data Output:

RS-232 serial interface capable of PC connection via USB with Aktakom ACE-1025 interface converter and wide data processing capabilities with ADLM-W software or ASDM and ASDL applications Windows and Android based respectively.

Operating Temperature: 0 to 50°C

Operating Humidity: Less than 85% R.H.

Power Supply:

  • Alkaline or heavy duty DC 1.5 V battery (UM3, AA) x 6 PCs, or equivalent
  • ADC 9V adapter input. (AC/DC power adapter is optional)

Power Current:

  • Normal operation (w/o SD card save data and LCD Backlight is OFF): Approx. DC 30 mA.
  • When SD card save the data and LCD Backlight is OFF): Approx. DC 50 mA.

Electrical Specifications (23±5°C):

Measurement Range Resolution Accuracy
m/s 0.2 to 5.0 0.01 ±(5% + a) reading or ±(1% + a) full scale
5.1 to 25.0 m/s 0.1 m/s
Km/h 0.70 to 18.00 0.01
18.0 to 72.0 0.1
Mile/h (mph) 0.50 to 11.20 0.01
11.2 to 44.7 0.1
Knot 0.40 to 9.70 0.01
9.7 to 38.8 0.1
Ft/min 40-3940 ft/min 1 Ft/min

a = 0.1m/s, 0.3km/h, 0.2mile/h, 0.2 knot, 20ft/min

Note:
m/s - meters per second
km/h - kilometers per hour
ft/min - feet per minute
knot - nautical miles per hour
mile/h - miles per hour (international knot)

Air temperature:
Measuring Range: 32°F to 122°F / 0°C to 50°C
Resolution: 0.1°F / 0.1°C
Accuracy: 1.5°F / ±0.8°C

Type K/J thermometer:

Sensor Type Resolution Range Accuracy
Type K 0.1°C -50.0 to 1300.0°C ± (0.4 % + 0.5°C )
-50.1 to -100.0°C ± (0.4 % + 1°C )
0.1°F -58.0 to 2372.0°F ± (0.4 % + 1°F )
-58.1 to -148.0°F ± (0.4 % + 1.8°F )
Type J 0.1°C -50.0 to 1200.0°C ± (0.4 % + 0.5°C )
-50.1 to -100.0°C ± (0.4 % + 1°C )
0.1°F -58.0 to 2192.0°F ± (0.4 % + 1°F )
-58.1 to -148.0°F ± (0.4 % + 1.8°F )

Above specification tests under the environment RF Field Strength less than 3 V/M & frequency less than 30 MHz only

Dimensions:

  • Main instrument: 8x3x1.5in / 203x76x38mm

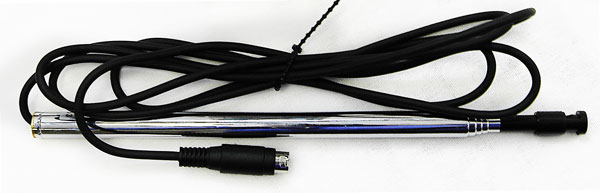

  • Telescope Probe :

Round, 0.5in / 12mm Dia x 11in / 280mm (min. length)
Round, 0.5in / 12mm Dia x 37in / 940mm (max. length)

Accessories:

General accessories:

  • Instruction manual
  • Telescope Probe
  • Hard carrying case

Optional Accessories:

  • SD Card (1 G)
  • SD Card (2 G)
  • Type K thermocouple probe
  • AC to DC 9V adapter
  • USB cable, USB-01
  • RS232 cable, UPCB-02
  • Data Acquisition software,SW-U801-WIN

Frequently Asked Questions

  • Can I using Aktakom Data Logger Monitor (ADLM-W) software load all of the information from the memory card to plot a graph?
  • How can I switch on and off the display backlight of ATE-1033 or ATE-1033BT (ATE-1034, ATE-1034BT)?
  • How can I activate and deactivate auto turn-off of ATE-1033 or ATE-1033BT (ATE-1034, ATE-1034BT)?
  • How can I switch on or off the beep when operating ATE-1033 or ATE-1033BT (ATE-1034, ATE-1034BT)?

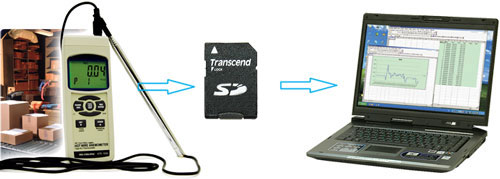

  • How to collect your recorder data using Datalogger memory card

  • Can I using Aktakom Data Logger Monitor (ADLM-W) software load all of the information from the memory card to plot a graph?

    The environment meter records data to the memory card in *.xls format. All of the data can be copied to the PC after the measurement process.

    Aktakom Data Logger Monitor (ADLM-W) software can be used for the measurement data transmission (using Aktakom ACE-1025 interface converter) that means for online monitoring only.


    Up

    How can I switch on and off the display backlight of ATE-1033 or ATE-1033BT (ATE-1034, ATE-1034BT)?

    When you switch on the device the display backlight should switch on automatically.

    During the measurement process you may press «POWER/ESC» button once not keeping it pressed.

    Backlight will be switched off.

    If you would like to switch it on you need to press «POWER/ESC» button once again.


    Up

    How can I activate and deactivate auto turn-off of ATE-1033 or ATE-1033BT (ATE-1034, ATE-1034BT)?

    To activate or deactivate auto turn-off function press «SET ▼» button and keep it pressed within next 2 seconds.

    The device will enter the extended setting mode.

    Sequentially press «FUNC./HOLD/NEXT» button until you see «PoFF» symbols down the display.

    By pressing «SET▼» or «LOGGER▲» buttons select activation (yes) or deactivation (no) auto turn-off function.

    To confirm your choice press «REC/ENTER» button.


    Up

    How can I switch on or off the beep when operating ATE-1033 or ATE-1033BT (ATE-1034, ATE-1034BT)?

    In order to switch on/off the beep you need to press «SET ▼» and keep it pressed for 2 seconds.

    The device will enter the extended setting mode.

    Sequentially press «FUNC./HOLD/NEXT» button until you see «bEEP» symbols down the display.

    By pressing «SET▼» or «LOGGER▲» buttons select switching on (yes) or off (no) the beep.

    To confirm your choice press «REC/ENTER» button.


    Up

    How to collect your recorder data using Datalogger memory card

    Once you have finished to record your measurements with your Data Logger memory card just take off the card from your equipment and stick in to your computer. You'll be able to read the plain files using Microsoft Excel or any open source software.

    SD card capacity: 1 GB to 16 GB available everywhere


    Up

    Compatible Software

    Aktakom Data Logger Monitor (ADLM-W)

    ADLM-w software is designed for data reading from devices of AKTAKOM ATT, ATE series, for measurement data acquisition, its processing, displaying and storage in a PC with Windows XP x32, Windows 7 x64, Windows 7x32, Windows 8 x64, Windows Vista OS.

    Learn more...

    Download
    (8.68 Mb)
    Product registration required

    Aktakom ATE Easy Monitor (ATEE Monitor)

    AKTAKOM ATE Easy Monitor software provides the numerical indication of 4 channel measurements as well as the data recording into file in CSV format. For the device connection the use of ACE-1025/ACE-1026 USB-RS232 interface converters is required.

    Learn more...

    Free for registered users

    Download
    (2.16 Mb)
    Product registration required

    Aktakom Data Logger Monitor (ADLM-A)

    ADLM-A software is designed for data reading from devices of AKTAKOM ATT, ATE series, for measurement data acquisition, its processing, displaying and storage in a tablet PC with Android OS of 4.0 and more advanced versions.

    Learn more...

    El AKTAKOM ATE-1034 es una combinación de cable conductor caliente y termistor estándar, el dispositivo realiza mediciones rápidas y precisas incluso a bajos valores de velocidad del viento.

    Características:

    • Sonda delgada, ideal para rejillas y difusores
    • Velocidad del aire: m / s, ft / min, Km / h, nudos, millas / h
    • La temperatura del aire (° C, ° F)
    • El sensor del Termistor para la temperatura del aire es de respuesta rápida
    • Termómetro Tipo K, termopar tipo J
    • Registrador en tiempo real con memoria SD, incorpora Reloj y Calendario en tiempo real de registro de datos, el tiempo de muestreo regulable de 1 a 3600 segundos
    • Registrador manual de datos disponible (ajuste del tiempo de muestreo a 0), durante el uso de la función de registro de datos manual, puede ajustar la posición diferente (ubicación) N º (posición 1 a la posición 99)
    • Operación fácil, la computadora no necesita ningún software adicional, después de que el Registrador (datalogge) guarde, utilice sólo la tarjeta SD y conectela en el ordenador, puede descargar la totalidad del valor medido con la información de la hora (año / mes / día / hora / minuto / segundo) transferir a Excel directamente, el usuario puede hacer análisis gráfico con los datos por sí mismos
    • Capacidad de la tarjeta SD: 1 GB a 16 GB
    • Pantalla LCD con luz de fondo verde claro, de fácil lectura
    • Por defecto apagado automatico y tambien manual
    • Datos en pausa, grabacion de lecturas max. y min.
    • Circuito del microordenador, de alta precisión
    • Alimentación por UM3/AA (1,5 V) x 6 baterías o adaptador de 9V DC
    • Interfaz RS232/USB \
    • Sonda independiente, fácil para la operación
    • Medición de medio ambiente
    • Aplicaciones: pruebas ambientales, transportadores de aire, campanas de flujo, habitaciones limpias, velocidad del aire, balanceo de flujos de aire, ventiladores / motores / sopladores, velocidad del viento en horno, caja refrigerada, cabinas de pintura en aerosol
