ATK-2103 Clamp Meter

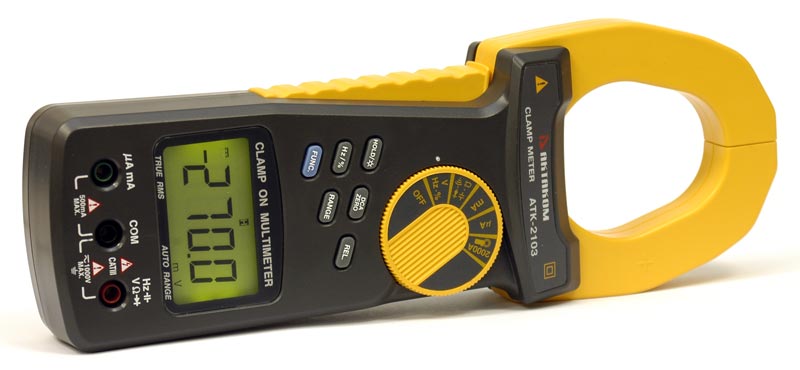

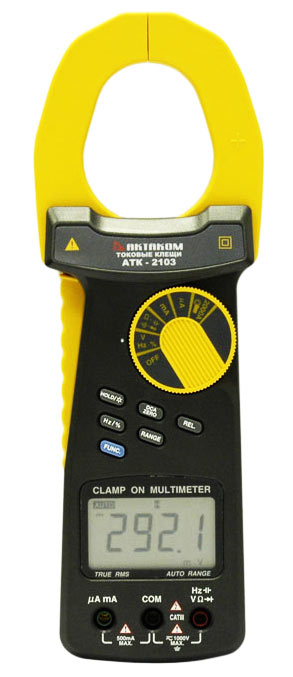

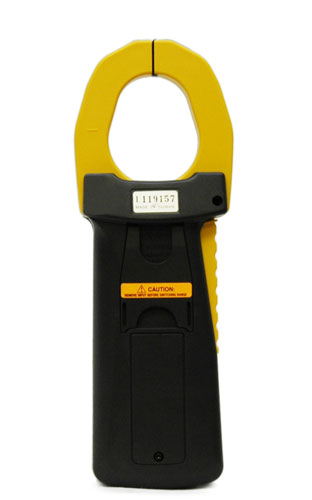

AKTAKOM ATK-2103 Clamp Meter
Click an image to enlarge
Brand:AKTAKOM
Warranty:1 year
True RMS

Retail price :$89.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

In stock

BuyAdd to cart

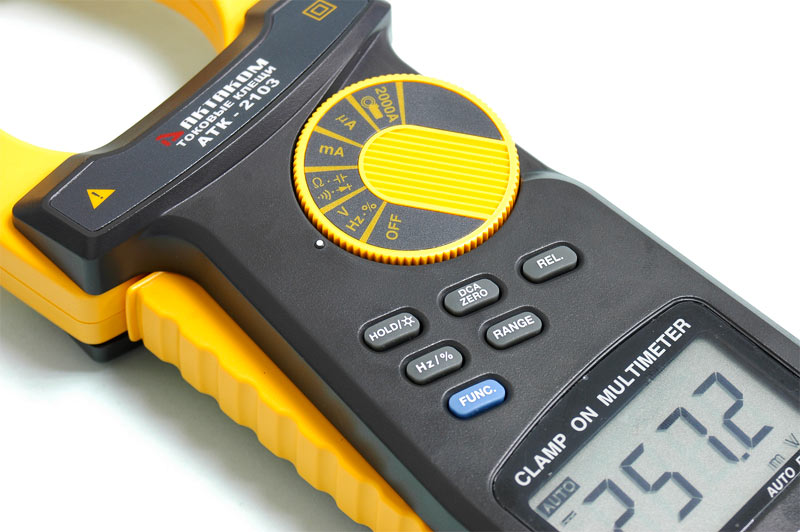

AKTAKOM ATK-2103 contains 2 devices in one housing: multimeter and clamp meter! ATK-2103 clamp meter (analog of CM-9930) is capable of measuring up to 8 electric quantities, continuity testing. Big diameter of clamp meter jaws allows you to measure current in flat wires 2.4 in / 60 mm wide as well as round wires with 2 in / 50 mm diameter.

Features

  • True RMS reading for ACV & ACA measurement
  • 4000 counts, Auto range, multi-functions for ACA, DCA, ACV, DCV, Ohms, Capacitance, Hz, Duty cycle, diode and continuity test
  • Wide ranges (2000A, 400 A) clamp on current measurement both for ACA and DCA
  • 4 ranges (400 A, 4000 A, 40 mA, 400 mA) direct current input measurement both for ACA and DCA
  • LSI circuit provides high reliability and durability
  • Overload protection circuit is provided for all ranges
  • Data hold
  • Backlight

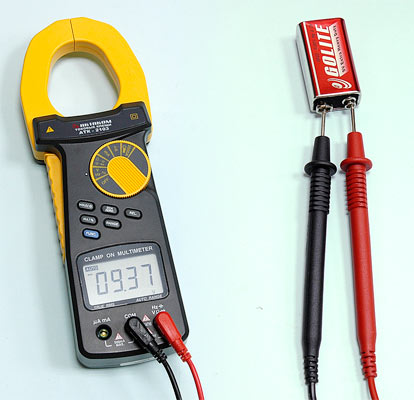

DC Voltage (DCV)1000 V
DCV Accuracy0.5%
DCV Resolution0.1 mV

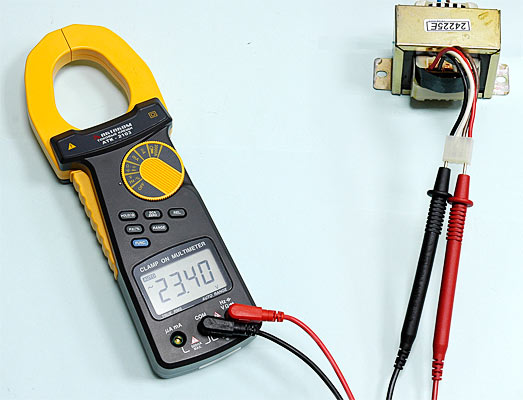

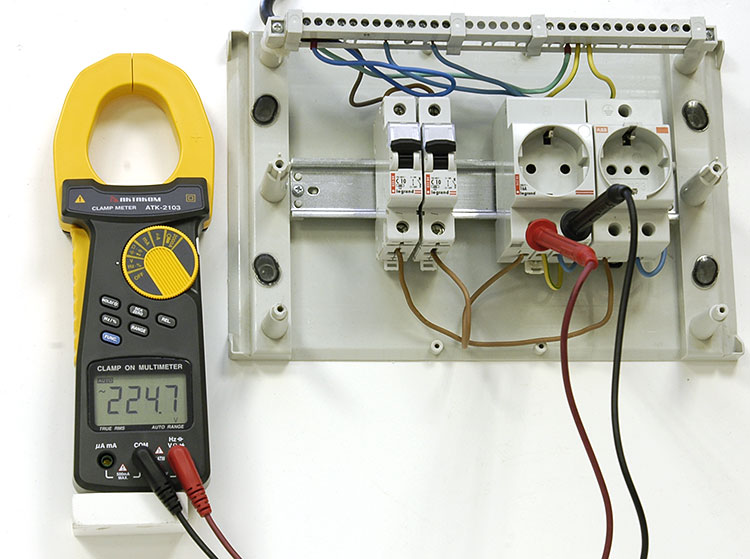

AC Voltage (ACV)1000 V
ACV Accuracy1.2%
ACV Resolution1 mV

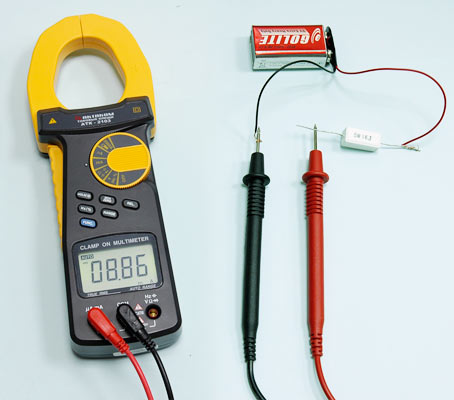

DC Current (DCA)2000 A
DCA Accuracy1.2%
DCA Resolution0.1 A

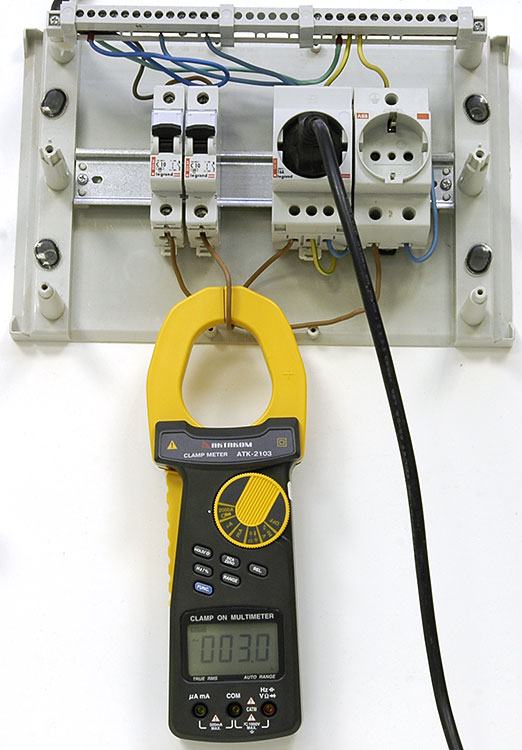

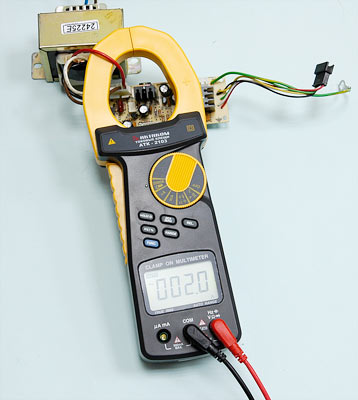

AC Current (ACA)2000 A
ACA Accuracy1.2%
ACA Resolution0.1 A

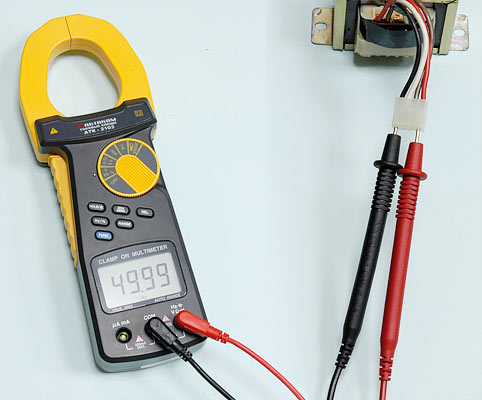

Frequency10 Hz...500 kHz
Duty Cycle1...99%

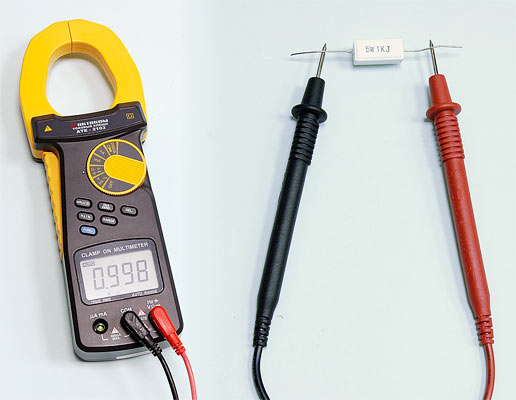

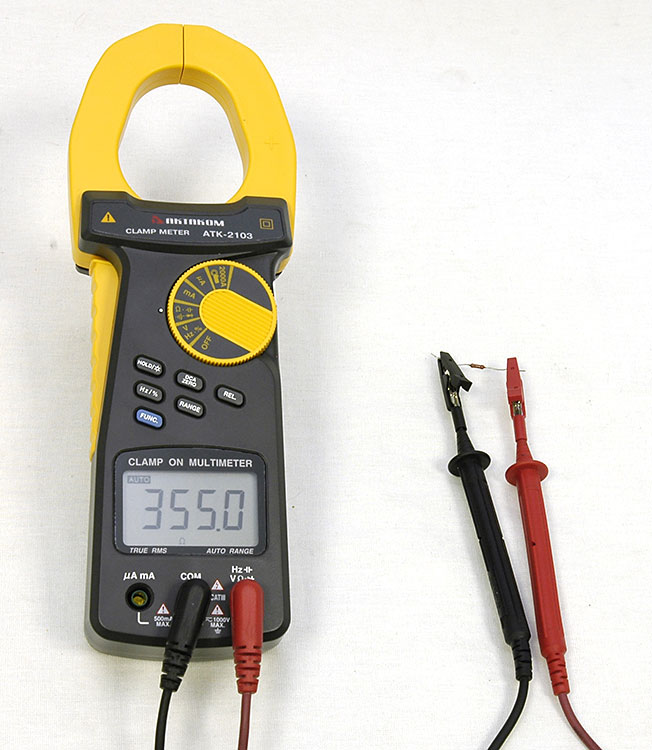

Resistance0.1 Ω...24 MΩ

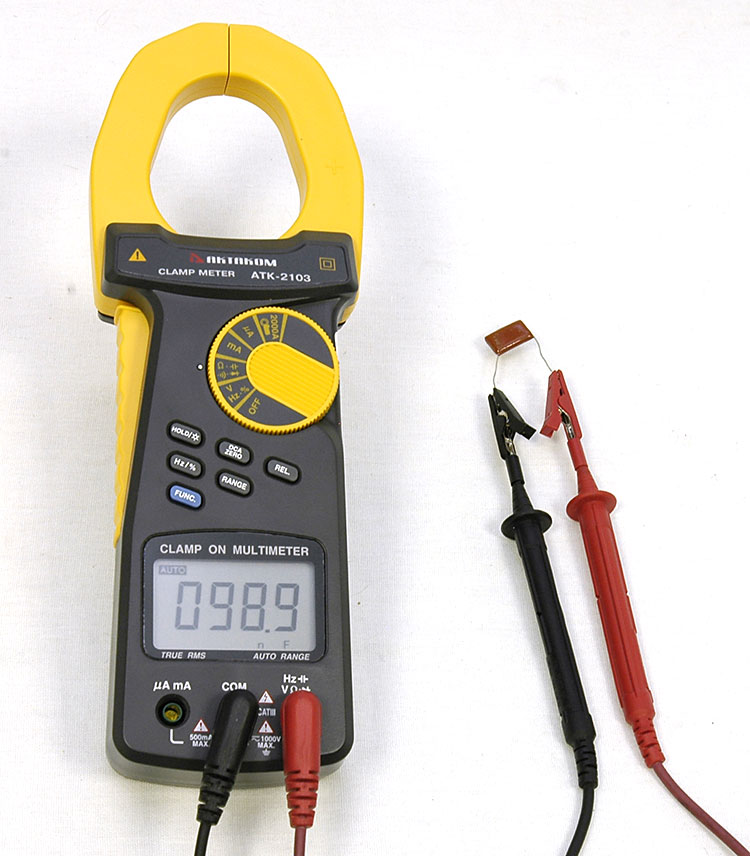

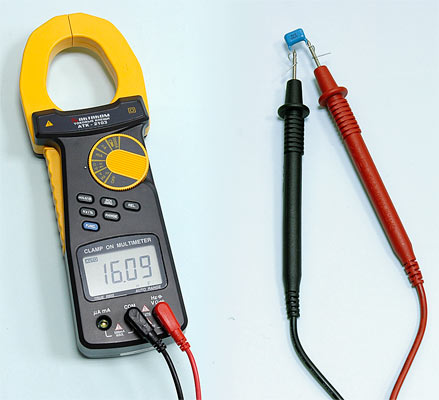

Capacitance50 F
Diode test+

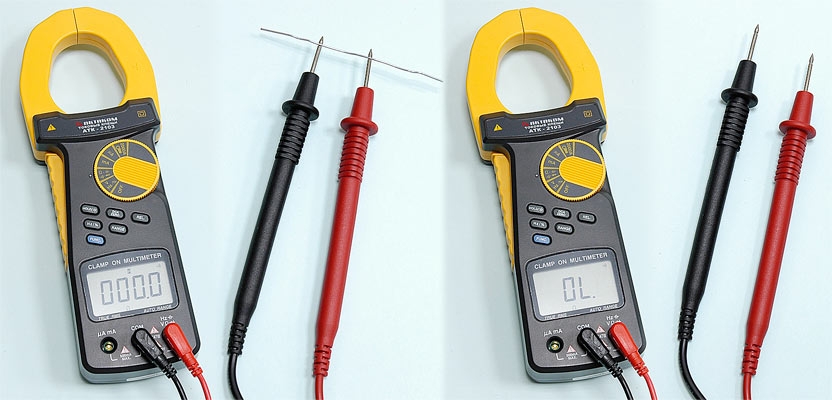

Continuity check+
True RMS+
Relative measurement+
Jaw size2.01 in / 51 mm
Display4 digit LCD, max. indication: 4000
Power supply9 V battery
Dimensions10 x 2.9 x 1.5 in / 255 x 73 x 38 mm

Accuracy tables

DC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValue Value+error
400 mV 0.1 mV (0.5%+2 digits) 2.1995 mV mV
4 V 0.001 V (1.2%+5 digits) 0.052988 V V
40 V 0.01 V (1.2%+5 digits) 0.52988 V V
400 V 0.1 V (1.2%+5 digits) 5.2988 V V
1000 V 1 V (1.2%+5 digits) 16.988 V V

AC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 mV 0.1 mV (0.5%+2 digits) 2.1995 mV mV
4 V 0.001 V (1.2%+5 digits) 0.052988 V V
40 V 0.01 V (1.2%+5 digits) 0.52988 V V
400 V 0.1 V (1.2%+5 digits) 5.2988 V V
1000 V 1 V (1.2%+5 digits) 16.988 V V

DC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 A 0.1 A (1.2%+5 digits) 5.2988 A A
4000 A 1 A (1.2%+5 digits) 52.988 A A
40 mA 0.01 mA (1.2%+5 digits) 0.52988 mA mA
400 mA 0.1 mA (1.2%+5 digits) 5.2988 mA mA
400 A 0.1 A (2%+5 digits) 8.498 A A
2000 A 1 A (2%+8 digits) 47.98 A A

AC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 A 0.1 A (1.2%+5 digits) 5.2988 A A
4000 A 1 A (1.2%+5 digits) 52.988 A A
40 mA 0.01 mA (1.2%+5 digits) 0.52988 mA mA
400 mA 0.1 mA (1.2%+5 digits) 5.2988 mA mA
400 A 0.1 A (2%+5 digits) 8.498 A A
2000 A 1 A (2%+8 digits) 47.98 A A

Frequency

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
5 Hz 0.001 Hz (1%+5 digits) 0.05499 Hz Hz
50 Hz 0.01 Hz (1%+5 digits) 0.5499 Hz Hz
500 Hz 0.1 Hz (1%+5 digits) 5.499 Hz Hz
5 kHz 0.001 kHz (1%+5 digits) 0.05499 kHz kHz
50 kHz 0.01 kHz (1%+5 digits) 0.5499 kHz kHz
500 kHz 0.1 kHz (1%+5 digits) 5.499 kHz kHz

Resistance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 Ω 0.1 Ω (1%+5 digits) 4.499 Ω
4 kΩ 0.001 kΩ (1%+5 digits) 0.04499 kΩ kΩ
40 kΩ 0.01 kΩ (1%+5 digits) 0.4499 kΩ kΩ
400 kΩ 0.1 kΩ (1%+5 digits) 4.499 kΩ kΩ
4 MΩ 0.001 MΩ (1%+5 digits) 0.04499 MΩ MΩ
40 MΩ 0.01 MΩ (1%+5 digits) 0.4499 MΩ MΩ

Capacitance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
50 nF 0.01 nF (3%+5 digits) 1.5497 nF nF
500 nF 0.1 nF (3%+5 digits) 15.497 nF nF
5 F 0.01 F (3%+5 digits) 0.1997 F F
50 F 0.1 F (3%+5 digits) 1.997 F F

Specifications

General specifications:

  • Display: 0.6 in / 15 mm, 4 digit LCD, max. indication: 4000
  • Measurement range: ACA, DCA, ACV, DCV, Ohms, Capacitance, Hz, Duty cycle, diode and continuity test
  • Polarity: Automatic switching
  • Current Sensor: Hall effect sensor
  • Over-input: Indication of "1" or "-1"
  • Sampling time: 0.35 sec. approx.

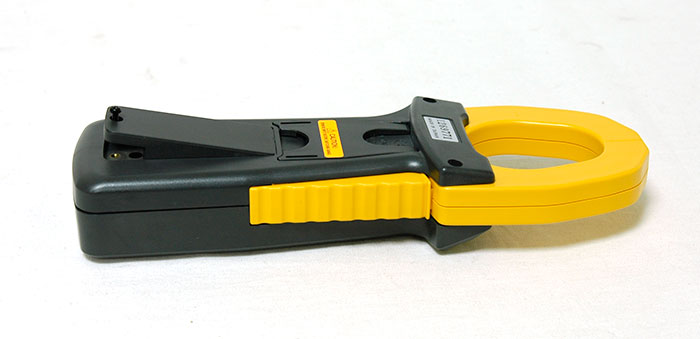

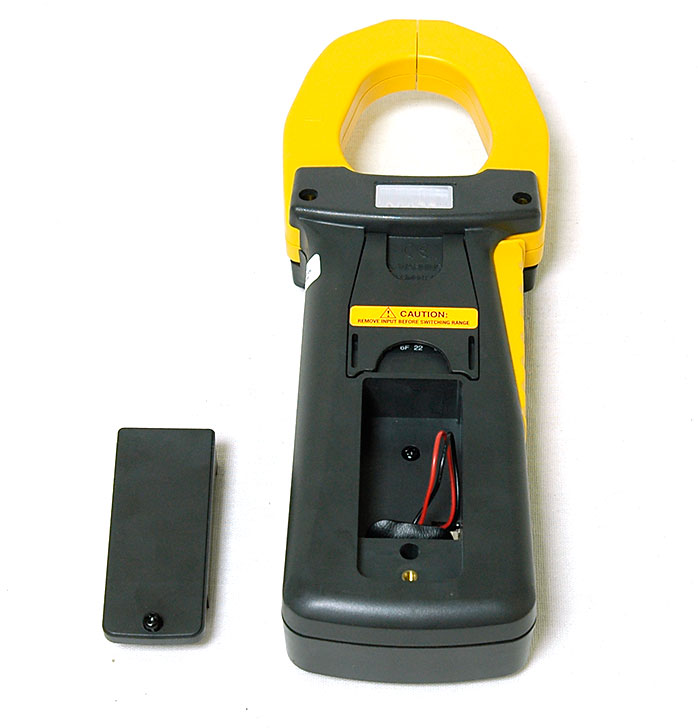

  • Battery: DC 9V battery, heavy duty or Alkaline type, 006P, MN1604 ( PP3) or equivalent
  • Power consumption: approx. DC 5 mA
  • Operating temperature: 32F to 122F / 0C to 50C
  • Operating humidity: less than 80% RH
  • Dimensions: 10 x 2.9 x 1.5 in / 255 x 73 x 38 mm
  • Weight: 0.85 lb / 380 g

Electrical Specifications:

Function Range Resolution Accuracy Overload protection
DC/AC voltage 400 mV (DC only) 0.1 mV ( 0.5 % + 2d ) AC/DC 1000 V
4 V 0.001 V DCV: (1 % + 2d)
ACV: (1.2 % + 5d)
40 V 0.01 V
400 V 0.1 V
1000 V 1 V

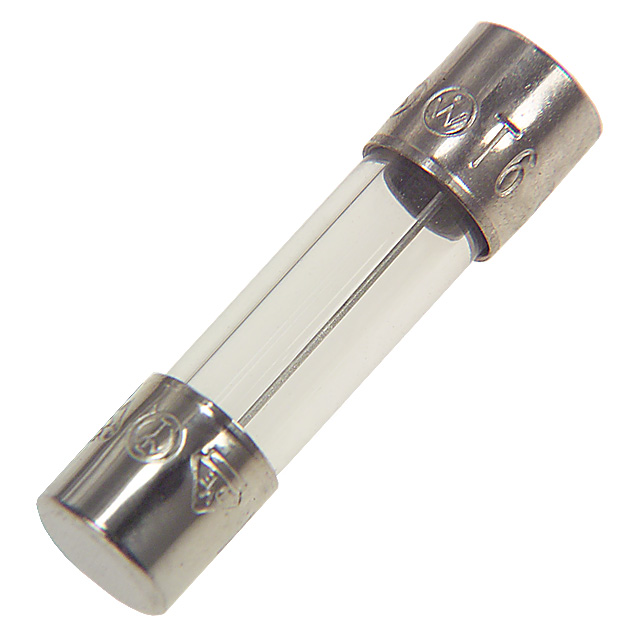

DC/AC current (direct input) 400 A 0.1 A (1.2% + 5d) AC/DC 500 mA (fuse)
4000 A 1 A
40 mA 0.01 mA
400 mA 0.1 mA
DC/AC current (clamp on) 400 A 0.1 A (2 % + 5 d) AC/DC2000A/1000V
2000 A 1 A (2 % + 8 d)
Note: True rms measurement both for ACV, ACA function Input impedance for ACV and DCV range is 10 MΩ ACA, ACV frequency response is from 45 to 1 KHz ACA, ACV specification be tested on sine wave 50/60 Hz.
Ohms 400 Ω 0.1 Ω (1 % + 5 d) AC / DC 400V
4 kΩ 1 Ω
40 kΩ 10 Ω
400 kΩ 100 Ω
4 MΩ 1 kΩ (2 % + 2 d)
40 MΩ 10 kΩ (3.5 % + 5d)
Capacitance 50 nF 10 pF (3 % + 5d) AC / DC 400V

500 nF 100 pF

5 F 0.001 F

50 F 0.01 F
Frequency (>5 V) 5 Hz 0.001 Hz (1 % + 5 d) AC / DC 1000V

50 Hz 0.01 Hz

500 Hz 0.1Hz

5 kHz 1 Hz

50 kHz 0.01 kHz

500 kHz 0.1 kHz
Duty cycle 1 % to 99% 0.1 %

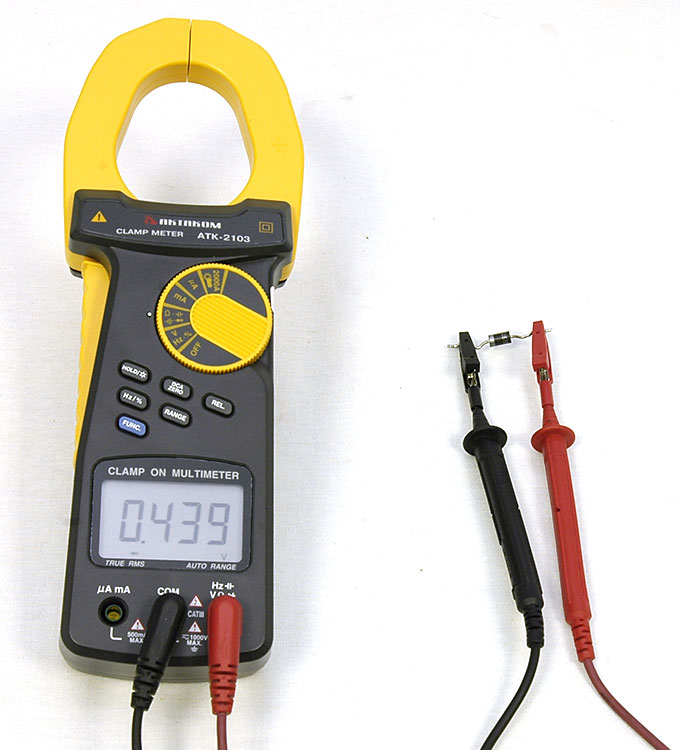

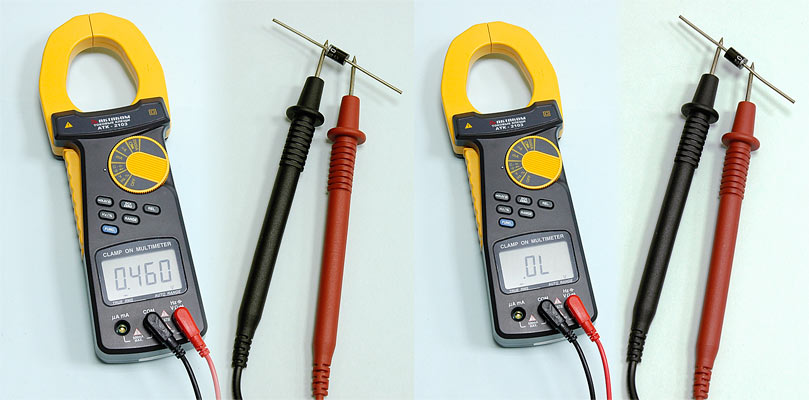

Diode Short/non conductance, good/defect test

Accessories

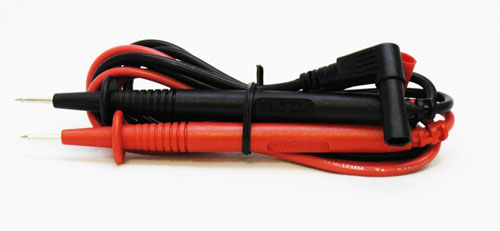

  • Test leads
  • User manual

AKTAKOM ATK-2103 contiene 2 dispositivos en una carcasa: multmetro y pinza amperimtrica. La pinza amperimtrica ATK-2103 (anloga a la CM-9930) es capaz de medir hasta 8 magnitudes elctricas, prueba de continuidad.El gran dimetro de las mordazas de la pinza amperimtrica le permite medir la corriente en cables planos de 60 mm de ancho, as como en cables redondos de 50 mm de dimetro.

Caractersticas


  • Lectura RMS real para medicin de ACV y ACA
  • 4000 conteos, rango automtico, multifuncin para ACA, DCA, ACV, DCV, ohmios, capacitancia, Hz, ciclo de trabajo, diodo y prueba de continuidad
  • Amplios rangos (2000 A, 400 A) abrazaderas en la medicin de corriente tanto para ACA como para DCA
  • 4 rangos (400 A, 4000 A, 40 mA, 400 mA) medicin de entrada de corriente continua para ACA y DCA
  • El circuito LSI proporciona alta confiabilidad y durabilidad
  • El circuito de proteccin contra sobrecarga se proporciona para todos los rangos
  • retencin de datos
  • Iluminar desde el fondo
