Measuring operation
Item Description
1 - UP or Picture button
2 - ESC button
3 - Down or VIDEO button
4 - Mode button

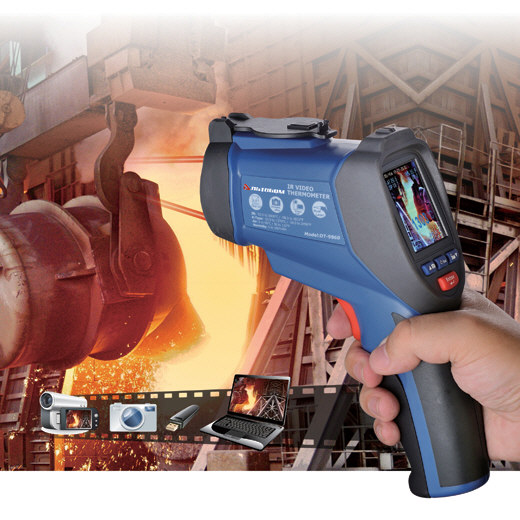

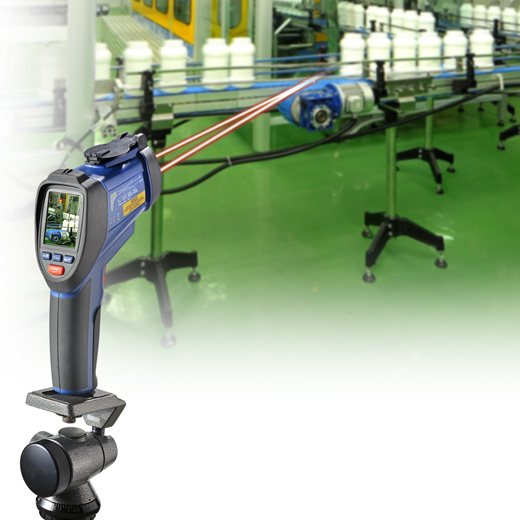

The IR VIDEO thermometer has six modes. On the power on mode, press the ESC button, the unit will display the six modes. You can use UP or DOWN button to select any mode you need.
| Items | Description |
|---|
| CAM mode | measure the IR temp, air temp. &air humi. With camera |
| IR mode | measure the IR temp. Very fast |
| DEWPOINT | measure the IR temp. And dewpoint temp |
| DATALOG | Datalog mode |
| GALLERY | display the picture/ datalog and video |
| SETTINGS | setting parameter |
Symbol
CAM Mode
Use to measure IR temp, air temp, air humi, dewpoint temperature and wet bulb temperature with camera. It can display the IR MAX temp., MIN temp, DIF temp, AVG temp.
Press and hold trigger to measure the temperature. This mode can take picture and take video.
Take picture function.
On the CAM mode, press the ↑ button to enter picture taking, then press SAVE with ↑ button to save picture, or press CENCEL with ↓ button to cancel.
Take video function.
On the CAM mode, press the ↓ button to enter video taking mode, then press START with ↓ button to take videos, or press ESC button to esc.
Press STOP with ↓ button to stop the video.
IR Mode
Use to measure IR temp, air temp, air humi, dewpoint temperature and wet bulb temperature without camera. It is can display the IR MAX temp, MIN temp, DIF temp, AVG temp.
Press and hold trigger to measure the temperature.
DEWPOINT Mode
measure the IR temp, and dewpoint temp. Press and hold trigger to measure the temperature.
Data log
In the DATALOG mode, first set the parameter like high alarm value, low alarm value, interval time, and the line color, then press the trigger to start logging. The unit will automatically record data, press the ESC button to esc the DATALOG mode, then the data will automatically save.
Set the datalog parameter
Set high alarm value
Press the ENTER button, use the ↑ and ↓ button to adjust the value, then press the ENTER button to confirm.
Set low alarm value
Press the ENTER button, use the ↑ and ↓ button to adjust the value, then press the ENTER button to confirm.
Set interval time
Press the ENTER button, use the ↑ and ↓ button to adjust the value, then press the ENTER button to confirm.
Select the color
Press the ENTER button, use the ↑ and ↓ button to select the color, then press the ENTER button to confirm.
Temperature measurement
