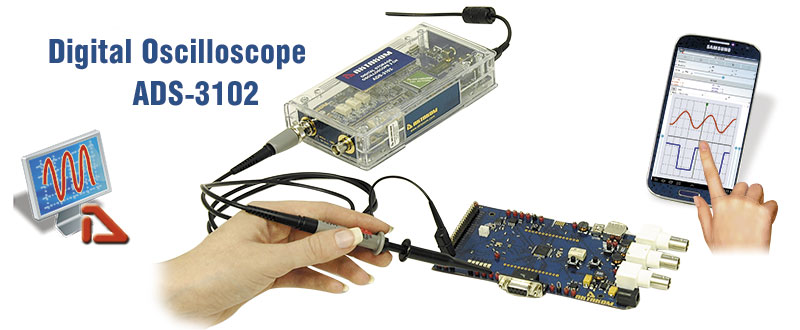

ADS-3102 Dual-channel USB PC-based Oscilloscope with Spectrum Analyzer

AKTAKOM ADS-3102 Dual-channel USB PC-based Oscilloscope with Spectrum Analyzer
Click an image to enlarge
Warranty: 1 year
USB (Universal Serial Bus)

Retail price : $499.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact

In stock

Buy Add to cart

Compact 2-channel digital storage USB oscilloscope. It’s designed as an attachment to a computer (PC). PC connection is made via USB port. Original design and perfect technical characteristics attract specialists’ attention.


  • 2 independent channels with bandwidth up to 100 MHz
  • write buffer up to 128 kB per channel (specified by user)
  • arbitrarily selected length of prerecord/postrecord
  • high sensibility (up to 10 mV/div)
  • automatic settings for input signals
  • wide range of cursor and automatic measurements
  • static measurements and histograming
  • spectrum analyzer (FFT)
  • digital luminophor
  • alarm signaling
  • PC connection via USB 2.0.



  • Sampling rate: 10 GHz (stroboscopic mode)
  • Sampling rate: 100 MHz (real time mode)
  • Vertical deflection ratio: 10 mV/div...10 V/div with step 1-2-5
  • Resolution: 8 bits
  • Frequency range on level: –3 dB: 0 Hz...100 MHz (DC), 1,2 Hz...100 MHz (AC)
  • Input resistance: 1 MΩ or 50 Ω
  • Max. input voltage: ±50 V (RВХ=1 MΩ)
  • Min. clock cycle: 20 ns
  • Min. durability of synchronizing pulse: 10 ns
  • Sweep ratio range: 10 ns/div....0,1 s/div
  • Calibrator: 1 kHz, 3 V (peak to peak)
  • Power supply: +5 V
  • Weight: 0,19 kg / 6.7 oz
  • Dimensions: 5.9 x 3.3 x1.4 in / 150 x 85 x 32 mm.
  • DC 5v adapter
  • Software
  • User's Manual

Optional accessories:

ADS-3102 applications
