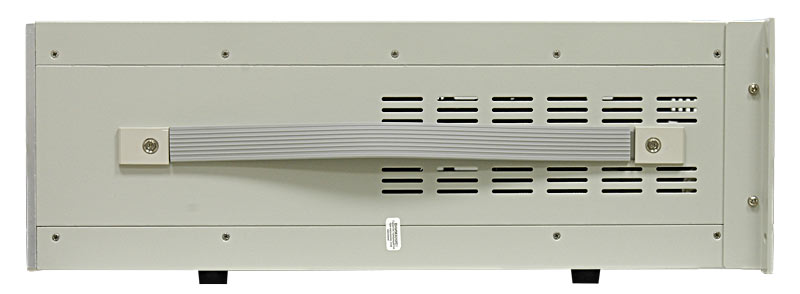

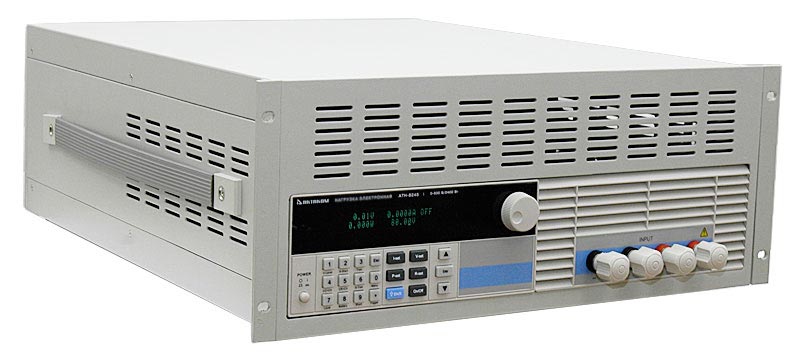

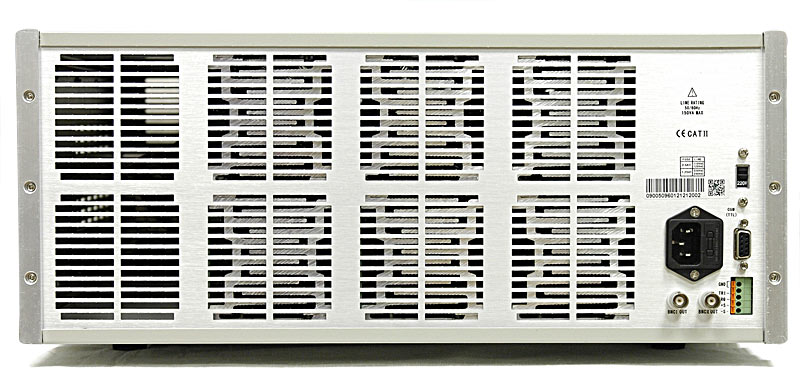

M9716 Programmable Electronic Load

Maynuo M9716 programmable electronic load is designed to work as a load when testing, configuring and adjusting power supplies, amplifiers and other electronic devices with a supply voltage of up to 150 V, a load current of up to 240 A, and an absorbed power of up to 2400 W.

This programmable electronic load provides great performance, reliability and ease of operation with high functionality. This electronic load supports different stabilization modes (constant voltage, constant current, constant resistance, constant power) as well as a number of test functions: battery test, dynamic test, external trigger.

Maynuo M9716 Electronic Load Features and Benefits

• VFD display
• Operation modes: CV (constant voltage), CC (constant current), CR (constant resistance), CW (constant power), CC+CV, CR+CV
• Protection for current, voltage, power, overheating, reverse polarity
• Soft start function
• Battery testing
• Support for dynamic testing with rising and falling edge setting
• External Trigger Support
• Voltage drop compensation
• List work
• Automatic testing
• USB / RS-232 control

Specifications

Stantard Accessories

• Power cord
• User manual
