ATH-8120 Programmable Electronic Load

Click an image to enlarge

Brand:

Retail price: $3,000.00

Check shipping cost

Depending on a destination shipping cost may vary.
See shipping page for international rates
or contact sales@tmatlantic.com

In stock, 3 left

Buy Add to cart

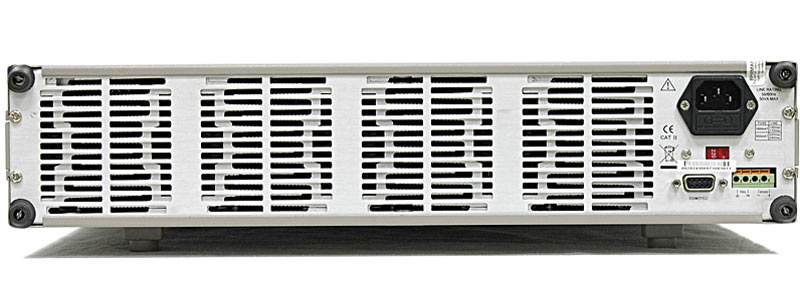

AKTAKOM ATH-8120 Programmable Electronic Load - rear view

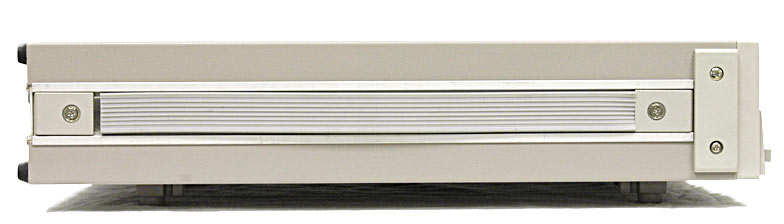

AKTAKOM ATH-8120 Programmable Electronic Load - side view

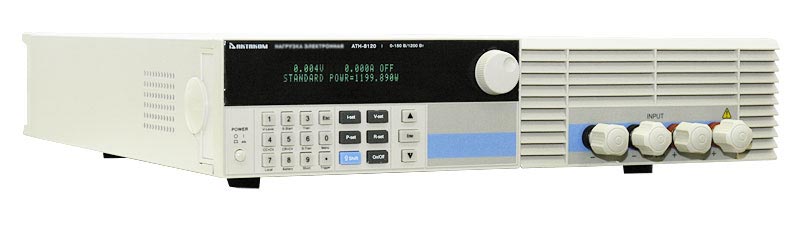

AKTAKOM ATH-8120 programmable electronic load is a cost-effective solution for solar cell and power supply testing, battery and other DC power sources research with a supply voltage of up to 150 V, a load current of up to 240 A, and an absorbed power of up to 1200 W.

ATH-8120 programmable DC electronic load (analog of Maynuo M9714) provides great performance, reliability and ease of operation with high functionality. This electronic load supports different stabilization modes (constant voltage, constant current, constant resistance, constant power) as well as a number of test functions (battery test, dynamic test, external trigger) which cover a wide range of applications.

ATH-8120 (M9714) Electronic Load Features and Benefits

Operation modes: CV (constant voltage), CC (constant current), CR (constant resistance), CW (constant power), CC+CV, CR+CV
Protection for current, voltage, power, overheating, reverse polarity
Soft start function
Battery testing
Support for dynamic testing with rising and falling edge setting
External Trigger Support
Voltage drop compensation
List work
Automatic testing
USB / RS-232 control
VFD display

Interface

RS-232

Specifications

Input Rating	Power	1200W
	Current	0-240A
	Voltage	0-150V
CC Mode	Range	0-24A	0-240A
	Resolution	1mA	10mA
	Accuracy	0.05%+0.05%FS	0.1%+0.05%FS
CV Mode	Range	0.1-19.999V	0.1-150V
	Resolution	1mV	10mV
	Accuracy	0.03%+0.02%FS	0.03%+0.02%FS
CR Mode (Voltage and current input value >=10% full measurement)	Range	0.3-10kOhm	0.3-5kOhm
	Resolution	16 bit	16 bit
	Accuracy	0.1%+0.1%FS	0.1%+0.1%FS
CW Mode (Voltage and current input value >=10% full measurement)	Range	0-1200W	0-1200W
	Resolution	1mW	10mW
	Accuracy	0.1%+0.1%FS	0.1%+0.1%FS
Voltage Measurement	Voltage	0-19.999V	0-150V
	Resolution	1mV	10mV
	Accuracy	0.015%+0.03%FS	0.015%+0.03%FS
Current Measurement	Current	0-24A	0-240A
	Resolution	0.1mA	1mA
	Accuracy	0.05%+0.05%FS	0.1%+0.1%FS
Power Measurement (Voltage and current input value >=10% full measurement)	Power	100W	1200W
	Resolution	1mW	10mW
	Accuracy	0.1%+0.1%FS	0.1%+0.1%FS
Battery Test	Battery Input: 0.1-150V; Max. Measurement: Capacity=999AH; Resolution=0.1mA; Time Range=1s-16H
Dynamic Test	Transition List: 0-25kHz; 2.5A/µS; T1&T2: 60µs-999s; Accuracy: +15% offset+10%FS
Current soft-startup Time	1ms; 2ms; 5ms; 10ms; 20ms; 50ms; 100ms; 200ms; 500ms; 1000ms; Accuracy: +15% offset + 10%FS
Short Circuit	Current (CC)	=26.4A	=264A
	Voltage (CV)	0V
	Resistance (CR)	=7mOhm
Temperature	Operatign	0~40°C
Temperature	Nonoperating	-10~70°C
Dimension	WxHxD	428 x 103.5 x 453.5mm
Weight		17.6kg

Stantard Accessories

Power cord
User manual

Compatible Software

AKTAKOM ElectronicLoadPro (AELP)

AKTAKOM ElectronicLoadPro software is designed to control programmable electronic loads from a PC. This software allows to set up input voltage, current, resistance and power as well as supports electronic load advanced functions: dynamic and automatic testing, I-V curve scan, battery testing.

Learn more...

Free for registered users

Download
(19.99 Mb)
Product registration required
