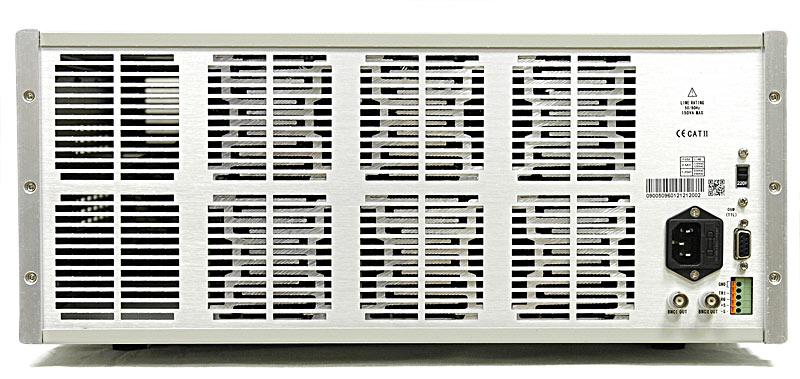

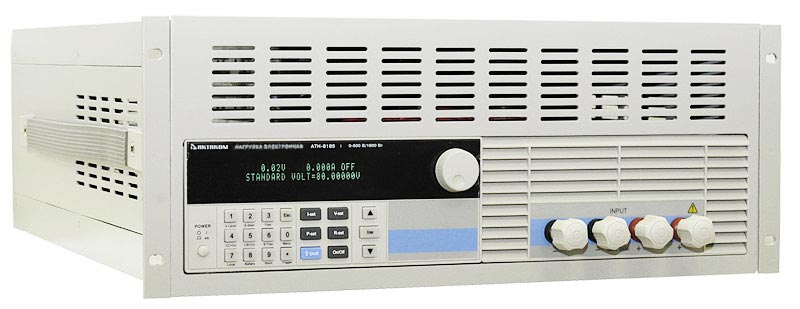

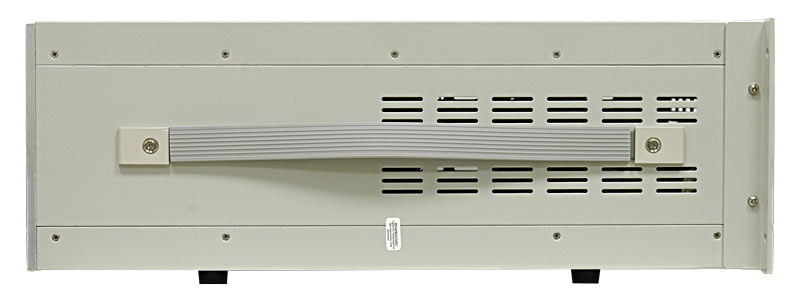

ATH-8180 Programmable Electronic Load

AKTAKOM ATH-8180 Programmable Electronic Load
Click an image to enlarge
Brand: AKTAKOM
RS-232 (Recommended Standard 232)

Retail price: $3,200.00

Depending on a destination shipping cost may vary.
See shipping page for international rates
or contact sales@tmatlantic.com

In stock, 2 left

Buy Add to cart

AKTAKOM ATH-8180 programmable electronic load is a cost-effective solution for solar cell and power supply testing, battery and other DC power sources research with a supply voltage of up to 150 V, a load current of up to 240 A, and an absorbed power of up to 1800 W.

ATH-8180 programmable DC electronic load (analog of Maynuo M9715) provides great performance, reliability and ease of operation with high functionality. This electronic load supports different stabilization modes (constant voltage, constant current, constant resistance, constant power) as well as a number of test functions (battery test, dynamic test, external trigger) which cover a wide range of applications.

ATH-8180 Electronic Load Features and Benefits

  • Operation modes: CV (constant voltage), CC (constant current), CR (constant resistance), CW (constant power), 2 combined modes: CC+CV, CR+CW
  • Protection for current, voltage, power, overheating, reverse polarity
  • Soft start function
  • Battery testing
  • Support for dynamic testing with rising and falling edge setting
  • External Trigger Support
  • Voltage drop compensation
  • List work
  • Automatic testing
  • USB / RS-232 control
  • VFD display

InterfaceRS-232

Specifications

Input Rating Power 1800W
Curent 0-240A
Voltage 0-150V
CC Mode Rrange 0-24A 0-240A
Resolution 1mA 10mA
Accuracy 0.05%+0.05%FS 0.1%+0.05%FS
CV Mode Range 0.1-19.999V 0.1-150V
Resolution 1mV 10mV
Accuracy 0.03%+0.02%FS 0.03%+0.02%FS
CR Mode (Voltage and current input value >=10% full measurement) Range 0.03-10K Oh 0.03-5K Oh
Resolution 16 bit 16 bit
Accuracy 0.1%+0.1%FS 0.1%+0.1%FS
CW Mode (Voltage and current inputvalue 》=10% full measurement) Range 0-1800W 0-1800W
Resolution 1mW 10mW
Accuracy 0.1%+0.1%FS 0.1%+0.1%FS
Voltage Measurement Voltage 0-19.999V 0-150V
Resolution 1mV 10mV
Accuracy 0.015%+0.03%FS 0.015%+0.03%FS
Current Measurement Current 0-24A 0-240A
Resolution 0.1mA 1mA
Accuracy 0.03%+0.05%FS 0.1%+0.1%FS
Power Measurement (Voltage and current input value >=10% full measurement) Power 100W 1800W
Resolution 1mW 10mW
Accuracy 0.1%+0.1%FS 0.1%+0.1%FS
Battery Test Battery Input:0.5-120V; Max. Measurement: Capacity = 999AH; Resolution = 0.1mA; Time Range = 1s-16h
Dynamic Test Transition List: 0-25kHz; 2.5A/µs; T1&T2: 60µs-999s; Accuracy: +15% offset +10%FS
Current soft-startup Time 1ms; 2ms; 5ms; 10ms; 20ms; 50ms; 100ms; 200ms; Accuracy: +15% offset +10%FS
Short Circuit Current (CC) =26.4A =264A
Voltage (CV) 0V
Resistance (CR) =6mOhm
Temperature Operating 0~40°C
Nonoperating -10°C~70°C
Dimension WxHxD (mm) 207x428x453.5
Weight kg 32

Stantard Accessories

  • Power cord
  • User manual

AKTAKOM ElectronicLoadPro (AELP)

AKTAKOM ElectronicLoadPro software is designed to control programmable electronic loads from a PC. This software allows to set up input voltage, current, resistance and power as well as supports electronic load advanced functions: dynamic and automatic testing, I-V curve scan, battery testing.

Learn more...

Free for registered users

Download
(19.99 Mb)
Product registration required
