APS-3333 DC Power Supply 2 x 30V; 2 x 3A; 5V/3A; 3 channel

AKTAKOM APS-3333 DC Power Supply 2 x 30V; 2 x 3A; 5V/3A; 3 channel
Click an image to enlarge
Brand:AKTAKOM

Retail price :$190.00

Depending on a destination shipping cost may vary.
See shipping page for international rates
or contact sales@tmatlantic.com

In stock

BuyAdd to cart

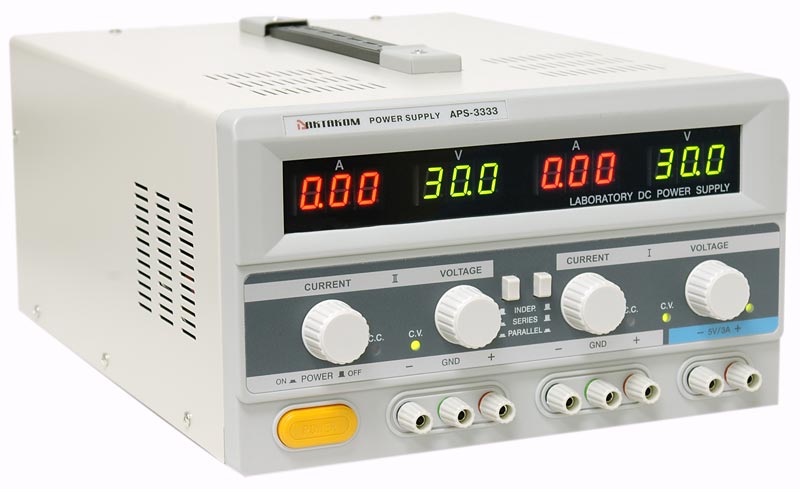

AKTAKOM APS-3333 Power supply with digital indication is designed for the use in debugging process, repair or in laboratory research.

APS-3333 power supply (analog of QJ3003EIII) outputs smoothly regulated stabilized DC Voltage up to 30V and stabilized current up to 3A.

  • 3 digit LCDs 4 pcs
  • Short circuit protection
  • Stabilization mode (current, voltage)

Channels3
Output voltage (V)30
Output voltage accuracy(1% + 2 digits)
Output voltage display resolution0.1 V
Output current (A)3
Output current accuracy(2% + 2 digits)
Output current display resolution0.01 A
Output power195 W
Ripple and Noise10 mV
Series working method0...60 V / 0...3 A
Parallel working method0...30 V / 0...6 A
Display4 3-digit LCDs
Power supply110 V / 220 V
Dimensions15.2 x 10.5 x 6.5 in / 385 x 268 x 164 mm

Specifications

  • Number of channels: 3
  • Output voltage (channel 1 and 2): 0...30 V x 2
  • Output current (channel 1 and 2): 03 A x 2
  • Output voltage/current (channel 3): 5V / 3A
  • Inaccuracy of output voltage setting: 1% + 2 digits
  • Inaccuracy of output current setting: 2% + 2 digits
  • Voltage ripple and noise, RMS (typical): 10mV
  • Current ripple and noise, RMS (typical): 2mA
  • Power supply: 110V/220V
  • Dimensions: 15.2 x 10.5 x 6.5 in / 385 x 268 x 164 mm
  • Weight: 22.1 lb / 10.5 kg.

Standard accessories

  • Power cord
  • User manual

Frequently Asked Questions

  • May I use AKTAKOM power supplies to charge accumulators?

  • May I use AKTAKOM power supplies to charge accumulators?

    AKTAKOM power supplies cant be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device.


    Up

    AKTAKOM APS-3333 La fuente de alimentacin con indicacin digital est diseada para su uso en el proceso de depuracin, reparacin o investigacin de laboratorio.

    Las salidas de la fuente de alimentacin APS-3333 regulan sin problemas el voltaje de CC estabilizado hasta 30 V y la corriente estabilizada hasta 3A.

    • LCD de 3 dgitos - 4 piezas
    • Proteccin contra cortocircuitos
    • Modo de estabilizacin (corriente, tension)
