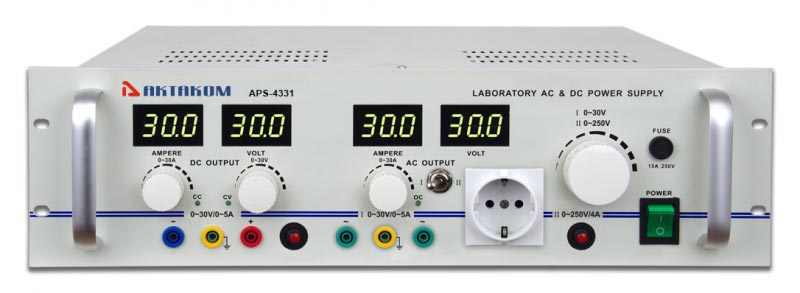

APS-4331 AC and DC Power Supply 30V / 30A

AKTAKOM APS-4331 AC and DC Power Supply 30V / 30A
Click an image to enlarge
Brand: AKTAKOM

Retail price : $1,500.00

Depending on a destination shipping cost may vary.
See shipping page for international rates
or contact sales@tmatlantic.com

Sold out

Subscribe

AKTAKOM APS-4331 is a combined AC and DC power supply with high performance and low noise. APS-4331 bench power supply (analog of M10-AD3030W) is a perfect instrument for research laboratory, factory or electronic appliance maintenance.

Features

  • DC constant voltage and constant current
  • AC output over load protection
  • Output from front panel and rear panel
  • 19-inch rack mount (3U) and benchtop

Channels3
Output voltage (V)30
Output current (A)30
Ripple and Noise50 mV
Power supply220 V
Dimensions16.5 x 18.9 x 5.3 in / 420 x 480 x 135 mm

Specifications

DC output

  • Voltage: 0~30V
  • Current: 0~30A
  • Line Regulation:
    • CV: 6×10-4+3mV
    • CC: 2×10-3+3mA
  • Load Regulation:
    • CV: 3×10-3+5mV
    • CC: 2×10-3+5mA
  • Ripple & Noise:
    • CV: 50mVrms
    • CC: 50mArms
  • Display Accuracy: Voltmeter ±(1.0%Rdg + 2digits); Ampmeter ±(1.0%Rdg + 2digits)

AC output

  • Voltage: 0~30V (I), 0~250V (II)
  • Current: 0~30A (I), 0~4A (II)
  • Display Accuracy: Voltmeter ±(1.0%Rdg + 2digits); Ampmeter ±(1.0%Rdg+2digits)
  • Input Voltage: 220~240VAC ±10%
  • Dimensions: 16.5 x 18.9 x 5.3 in / 420 x 480 x 135 mm
  • Weight: 48.5 lbs / 22 kg

Frequently Asked Questions

  • May I use AKTAKOM power supplies to charge accumulators?

  • May I use AKTAKOM power supplies to charge accumulators?

    AKTAKOM power supplies can’t be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device.
