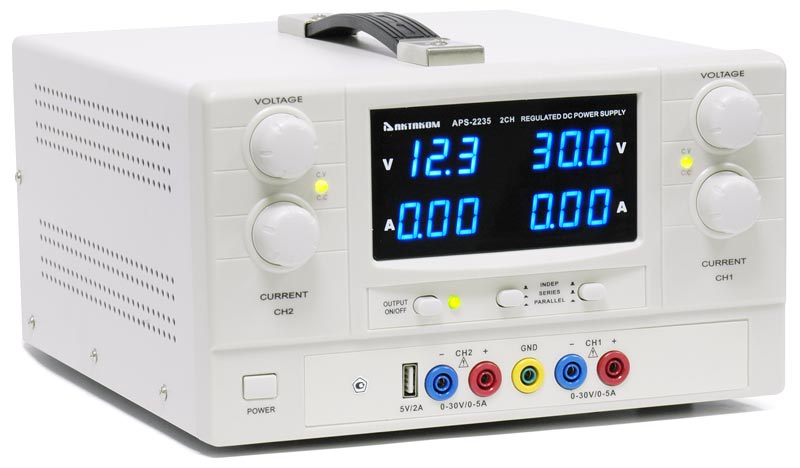

APS-2235 DC Power Supply 30V / 5A 2 Channels

AKTAKOM APS-2235 DC Power Supply 30V / 5A 2 Channels
Click an image to enlarge
Brand:AKTAKOM
Warranty:1 year

Retail price :$190.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

Sold out

Subscribe

AKTAKOM APS-2235 DC power supply provides smoothly regulated stabilized voltage and stabilized current with high precision and low ripple and noise. APS-2235 regulated DC power supply (analog of M10-QD305) is perfect choice for repair and debugging processes and an ideal instrument for research laboratories.

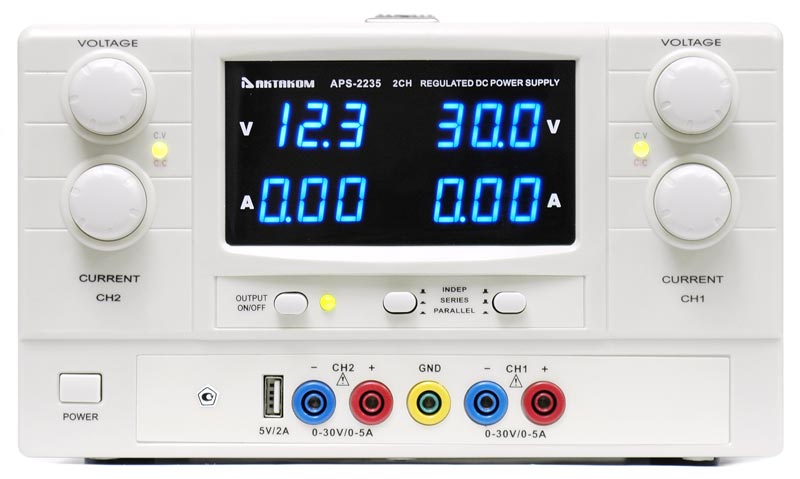

AKTAKOM APS-2235 bench power supply has a digital indication, all information is displayed on 4 LED displays.

Features

  • 4 digital LED displays
  • Indicators of CC and CV stabilization
  • Separate indication of current and voltage
  • Short circuit protection
  • Current / voltage stabilization mode
  • Tracking mode
  • Additional USB 5V/2A output to charge mobile devices

Channels2
Output voltage (V)30
Output voltage accuracy(0.5% + 2 digits)
Output voltage display resolution0.1 V
Output current (A)5
Output current accuracy(0.5% + 10 digits)
Output current display resolution0.01 A
Ripple and Noise10 mV
Series working method0...60 V / 0...5 A
Parallel working method0...30 V / 0...10 A
Display4 digital LED displays
Power supply220 V
Dimensions18.5 x 10.04 x 6.1 in / 470 x 255 x 155 mm

Specifications

  • Input voltage: 220VAC~240VAC 10% / 50Hz
  • 2 channels
  • Output voltage: 030V x 2 (independent channels)
  • Output current: 05A x 2 (independent channels)
  • Ripple and noise: 10mV rms
  • Protection: current-limit
  • Display accuracy
    - Volt indication: (0.5%Rdg+2 digits)
    - Ampere indication: (0.5%Rdg+10 digits)
  • Dimensions: 18.5 x 10.04 x 6.1 in / 470 x 255 x 155 mm
  • Weight: 19.8 lb / 9 kg

Standard accessories

  • User Manual
  • Power Cord

Frequently Asked Questions

  • May I use AKTAKOM power supplies to charge accumulators?

  • May I use AKTAKOM power supplies to charge accumulators?

    AKTAKOM power supplies cant be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device.


    Up

    La fuente de alimentacin AKTAKOM APS-2235 proporciona suavidad regulada de voltaje y corriente estabilizados. Este modelo es la eleccin perfecta para los procesos de reparacin y depuracin y una fuente de alimentacin ideal para laboratorios de investigacin.

    Caractersticas

    • Pantalla LED de 4 dgitos
    • Indicadores de estabilizacin de CC y CV
    • Indicador separados de corriente y voltaje
    • Proteccin de cortocircuito
    • Modo de estabilizacin Corriente / voltaje
    • Modo de rastreo
    • 2 canales
