APS-2232 DC Power Supply 30V / 20A 2 Channels

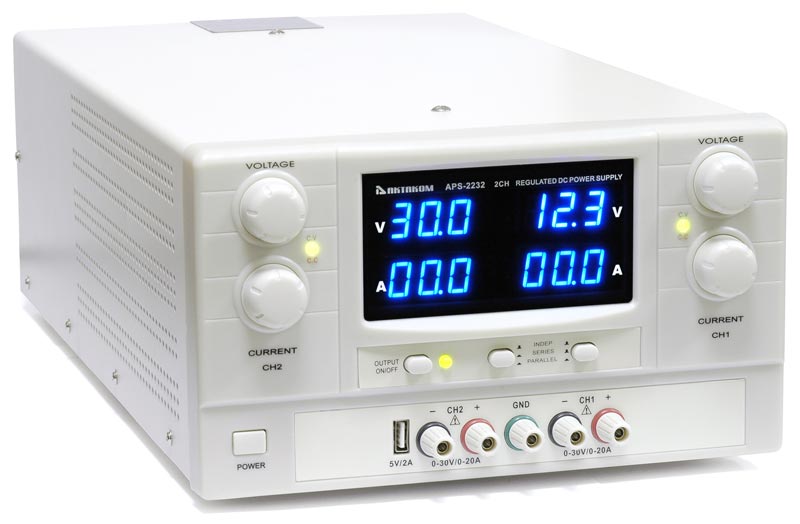

AKTAKOM APS-2232 DC Power Supply 30V / 20A 2 Channels
Click an image to enlarge
Brand:AKTAKOM
Warranty:1 year

High performance and precision multichannels DC regulated power supply. Widely used in debugging process, repair and laboratory research.

Retail price :$699.00

Depending on a destination shipping cost may vary.
See shipping page for international rates
or contact sales@tmatlantic.com

Sold out

Subscribe

AKTAKOM APS-2232 DC power supply is a perfect instrument for debugging process, repair and laboratory research as well as science investigation, college, factory, electronic appliance maintenance and etc. APS-2232 outputs smoothly adjustable stabilized DC voltage and stabilized current.

APS-2232 is a high performance and precision regulated DC power supply (analog of M10-QD3020) with 2 channel outputs and low ripple and noise. It has constant voltage mode, constant current mode, auto current cut off protection function, overload protection and auto tracking mode. In auto tracking mode this power supply can auto connect CH1 and CH2 output either by parallel or series method internally to provide double current or voltage output.

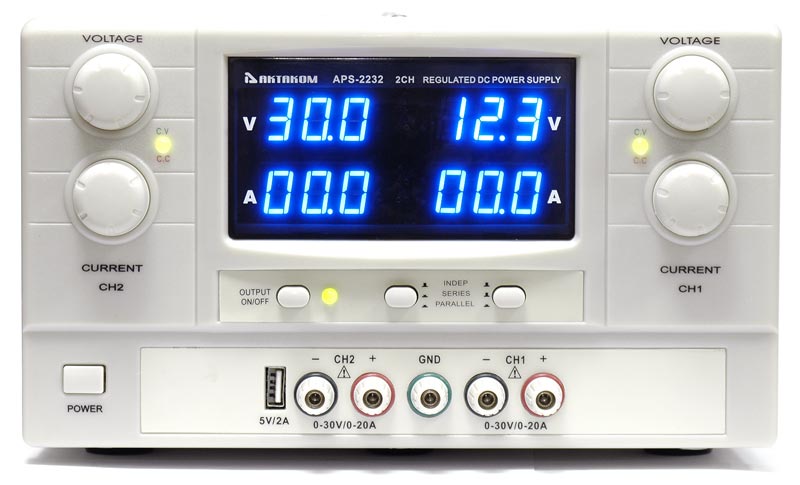

AKTAKOM APS-2232 bench power supply has a digital indication, all information is displayed on 4 LED displays.

Features

  • 2 adjustable channels output
  • 0-30V linear voltage and current output display
  • 4 LED displays for voltage and current output display
  • Low noise and ripple
  • Additional USB 5V/2A output to charge mobile devices
  • Current output protection
  • CV/CC mode automatic changer
  • Auto tracking output
  • Auto parallel or series connection
  • Doubling voltage with series connection
  • Doubling current with parallel connection

Channels2
Output voltage (V)30
Output voltage accuracy(0.5% + 2 digits)
Output voltage display resolution0.1 V
Output current (A)20
Output current accuracy(0.5% + 10 digits)
Output current display resolution0.1 A
Ripple and Noise10 mV
Series working method0...60 V / 0...20 A
Parallel working method0...30 V / 0...40 A
Display4 LED displays
Power supply220 V
Dimensions18.5 x 10 x 6.1 in / 470 x 255 x 155 mm

Specifications

  • Channels: 2
  • Output voltage: 030V x 2 (independent channels)
  • Output current: 020A x 2 (independent channels)
  • Input Voltage: 220V AC 10% at 50/60Hz
  • Operating temperature: 32F to 104F / 0C - 40C
  • Operating humidity: ≤80%RH
  • Digital Display: 3 Digits Display (0.5%+2d)
  • Chassis and Terminal: ≤20MΩ, at DC500V
  • Chassis and Power Cord: ≤30MΩ, at DC500V
  • Dimensions: 18.5 x 10 x 6.1 in / 470 x 255 x 155 mm
  • Weight: 50.7 lb / 23 kg

CV mode

  • Voltage range: 0 to maximum rated current
  • Line Effect: ≤5x10-4 +3mV
  • Loading Effect:
    ≤5x10-4 +3mV (output current ≤ 10A)
    ≤1x10-3+3mV (output current > 10A)
  • Recovery Time: ≤100s (50% of loading effect with min. loading of 0.5A)
  • Current Range: 0 to maximum rated current

CC mode

  • Line Effect: ≤4x10-3 +3mA
  • Loading Effect: ≤4x10-3 +3mA

Standard accessories

  • User Manual
  • Power Cord

Frequently Asked Questions

  • May I use AKTAKOM power supplies to charge accumulators?

  • May I use AKTAKOM power supplies to charge accumulators?

    AKTAKOM power supplies cant be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device.


    Up

    AKTAKOM APS-2232 es ampliamente utilizado en el proceso de depuracin, reparacin e investigacin de laboratorio. ATH-2232 emite una tensin de CC estabilizada suavemente ajustable y una corriente estabilizada. Adems, es una fuente de alimentacin perfecta para la investigacin cientfica, la universidad, la fbrica, el mantenimiento de aparatos electrnicos, etc., donde se necesita una fuente de alimentacin de CC de alto rendimiento y precisin regulada.

    APS-2232 es una fuente de alimentacin regulada por CC multicanal de alto rendimiento y precisin con salidas de 2 canales. Tiene modo de voltaje constante, modo de corriente constante, funcin de proteccin de corte de corriente automtico, proteccin de sobrecarga y modo de seguimiento automtico. En el modo de seguimiento automtico, esta fuente de alimentacin puede conectar automticamente las salidas CH1 y CH2, ya sea por un mtodo paralelo o en serie internamente, para proporcionar una salida de voltaje o corriente doble.

    La estructura de la unidad es bastante compacta, el APS-2232 ocupa un rea de trabajo muy pequea. Otras caractersticas de esta fuente de alimentacin incluyen alto rendimiento, baja ondulacin y ruido, diseo moderno, etc.

    APS-2232 tiene una indicacin digital, toda la informacin se muestra en 4 pantallas LED.

    Caracteristicas

    • 2 canales ajustables de salida
    • Pantalla de salida de tensin y corriente lineal de 0-30 V
    • 4 pantallas LED para voltaje y salida de corriente
    • Bajo ruido y ondulacin
    • Caracterstica preestablecida de tensin y corriente
    • Proteccin de salida de corriente
    • Cambiador automtico de modo CV / CC
    • Salida de seguimiento automtico
    • Conexin automtica en paralelo o en serie
    • Doble tensin con conexin en serie.
    • Doble corriente con conexin paralela.
