APS-1262 DC Power Supply 60V / 20A, 1 channel

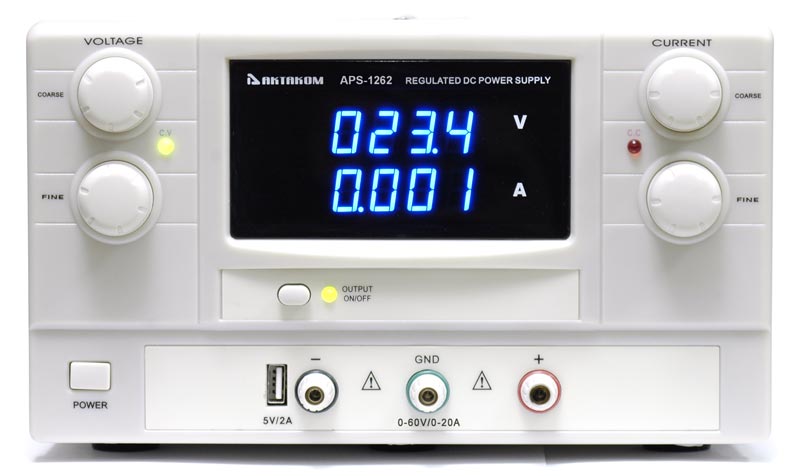

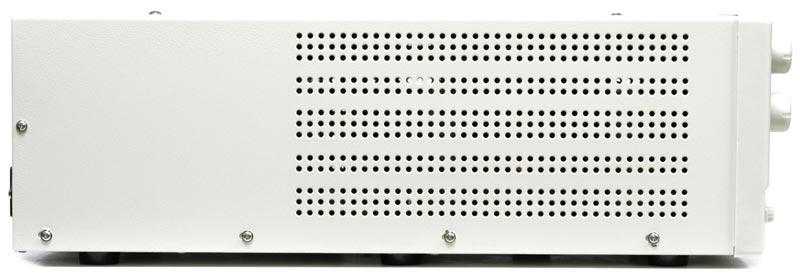

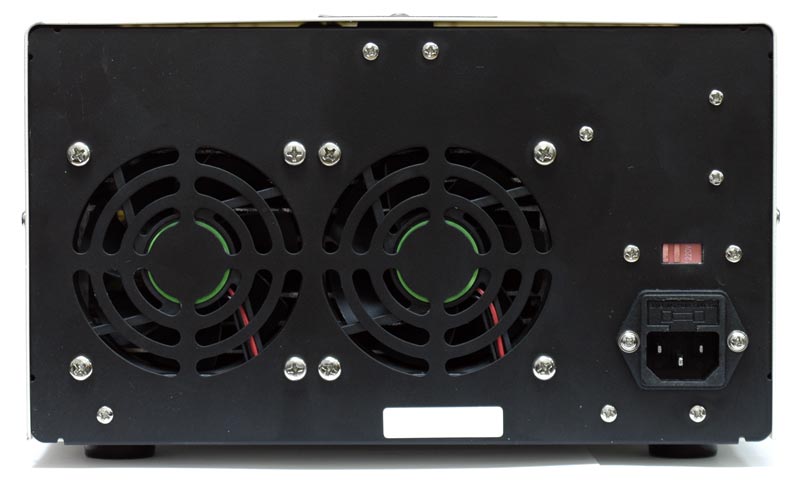

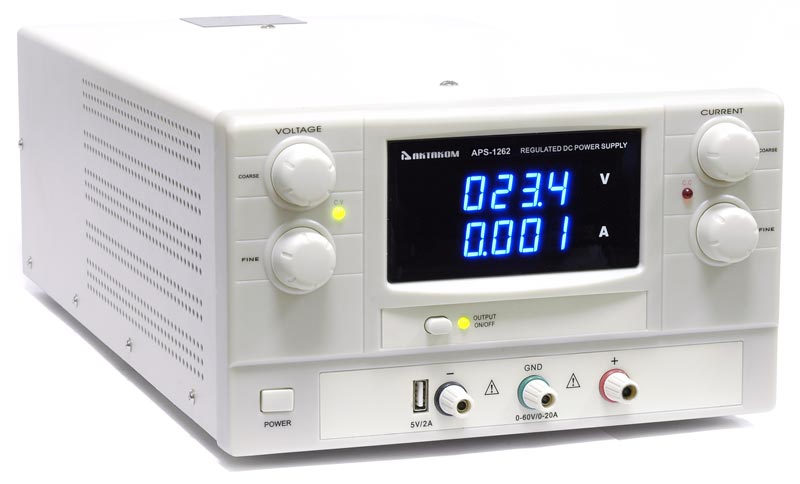

AKTAKOM APS-1262 DC Power Supply 60V / 20A, 1 channel
Click an image to enlarge

Retail price:$790.00

Depending on a destination shipping cost may vary.
See shipping page for international rates
or contact sales@tmatlantic.com
Sold out


AKTAKOM APS-1262 is a high-precision regulated DC power supply which is widely used in debugging process, repair and laboratory research. Besides other applications its a perfect power supply for science investigation, college, factory, electronic appliance maintenance and etc.

APS-1262 single channel benchtop power supply (analog of M10-QS6020) outputs smoothly adjustable stabilized DC voltage and stabilized current. Constant voltage and constant current are switchable automatically and the current limit protection point can be set arbitrarily. In the constant current mode, output current is continuously adjustable.


  • 2 LED displays
  • Short circuit protection
  • Stabilization mode (current, voltage)
  • Additional USB 5V/2A output to charge mobile devices

Output voltage (V)60
Output voltage accuracy(0.5% + 200 mV)
Output voltage display resolution0.1 V
Output current (A)20
Output current accuracy(1% + 20 mA)
Output current display resolution0.01 A
Ripple and Noise10 mV
Display2 LED displays
Power supply110 V / 220 V
Dimensions18.1 x 9.8 x 5.3 in / 460 x 250 x 135 mm


  • Number of channels: 1
  • Output voltage: 0...60 V
  • Output current: 0...20 A
  • Inaccuracy of output voltage setting: 0.2% + 2 digits
  • Inaccuracy of output current setting: 1% + 2 digits
  • Voltage ripple and noise, RMS (typical): 10mV
  • Power supply: 110V/220V
  • Dimensions: 18.1 x 9.8 x 5.3 in / 460 x 250 x 135 mm
  • Weight: 44 lb / 20 kg

Included accessories

  • Power cord
  • User manual

Frequently Asked Questions

  • May I use AKTAKOM power supplies to charge accumulators?

  • May I use AKTAKOM power supplies to charge accumulators?

    AKTAKOM power supplies cant be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device.


    AKTAKOM APS-1262 es una fuente de alimentacin regulada por CC de alta precisin que se usa ampliamente en el proceso de depuracin, reparacin e investigacin de laboratorio. Adems de otras aplicaciones, es una fuente de alimentacin perfecta para investigacin cientfica, universidad, fbrica, mantenimiento de aparatos electrnicos, etc.

    APS-1262 emite una tensin de CC estabilizada suavemente ajustable y una corriente estabilizada. El voltaje constante y la corriente constante son conmutables automticamente y el punto de proteccin del lmite de corriente puede establecerse arbitrariamente. En el estado actual constante, la corriente de salida es continuamente ajustable.

    La estructura de la unidad es bastante compacta, esto permite que el APS-1262 ocupe un espacio mnimo y organice un rea de trabajo de alto rendimiento. Otras caractersticas de esta fuente de alimentacin incluyen alto rendimiento, disponibilidad de proteccin contra cortocircuitos, diseo moderno, etc.


    • 2 LCD
    • Proteccin contra cortocircuitos
    • Modo de estabilizacin (corriente, tension)
