APS-3610 DC Power Supply 60 V / 10 A 1 Channel

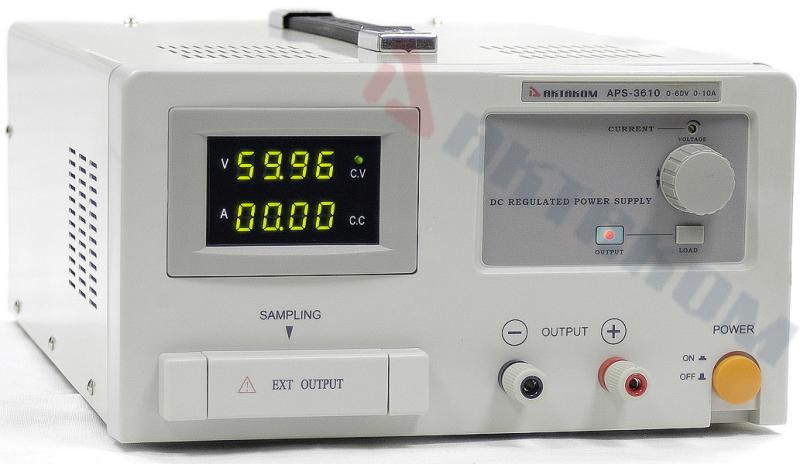

AKTAKOM APS-3610 is a single channel DC power supply with adjustable current limit. APS-3610 provides accurate stable DC power with low noise.

APS-3610 regulated power supply (analog of QJ6010E) is ideal for test benches, laboratories, schools and repair facilities. Multiturn voltage control knob helps user to accurately dial in precise voltage. It is easy to read digital outputs (voltage and current) on a large display accurately.

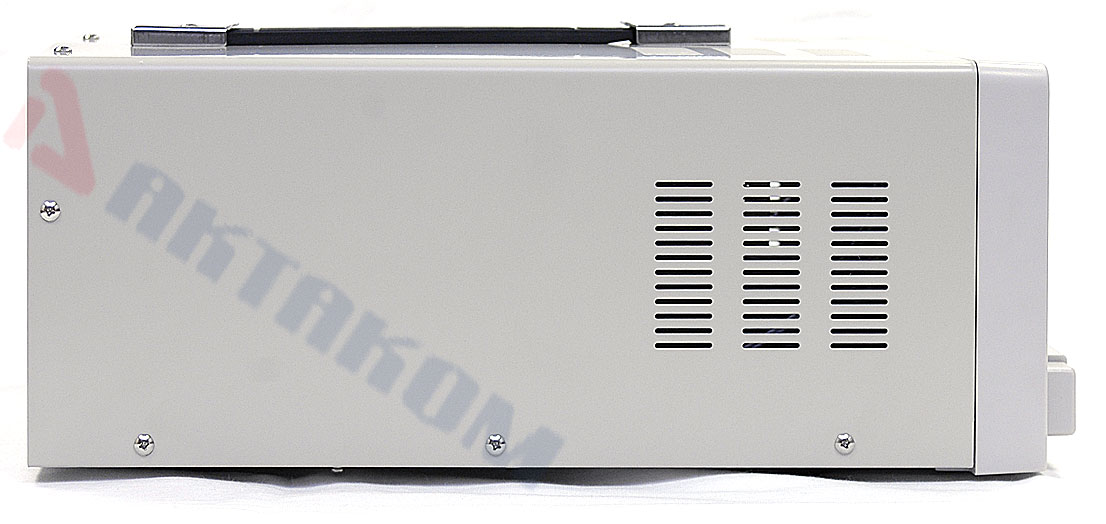

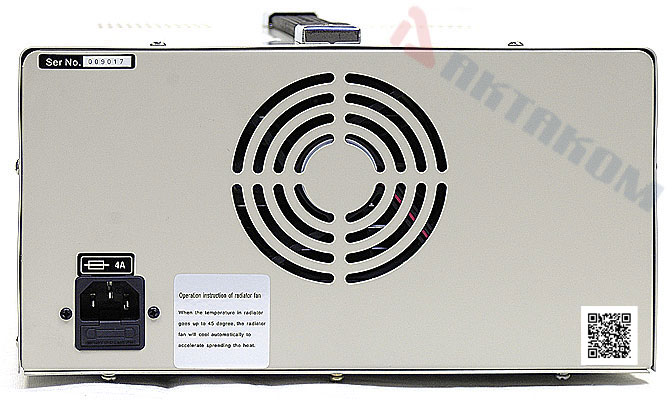

This instrument incorporates a cooling fan for reliable performance.

Push button switch allows user to connect and disconnect the load.

Features

• Four-wire (4-wire) connection scheme

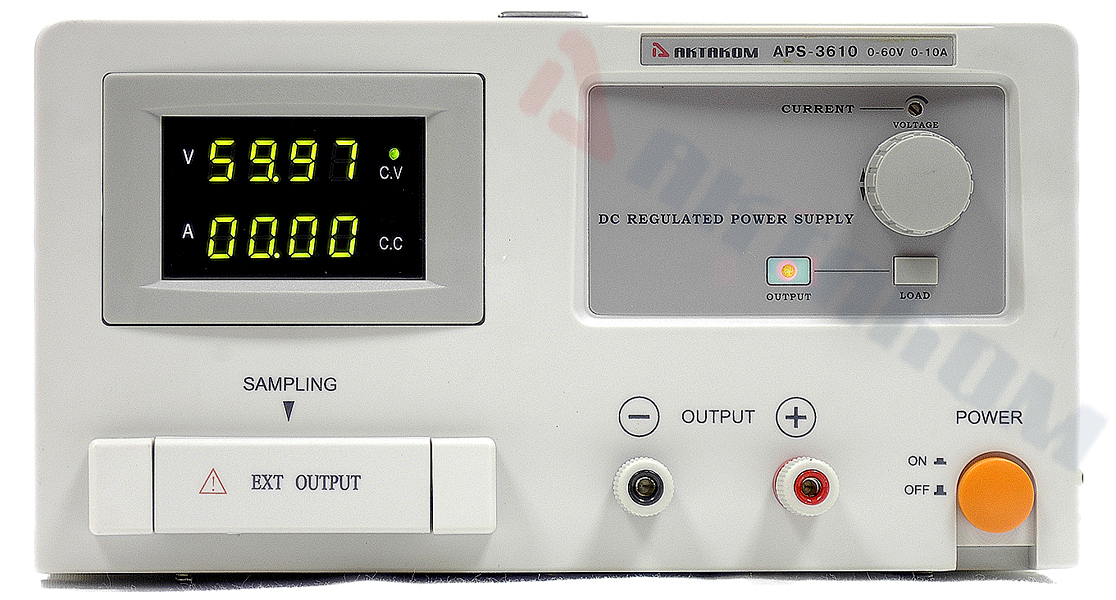

• Attractive digital display shows voltage & current
• A cooling fan
• High precision voltage regulation
• Dual terminal system: Safety test style or expandable screw terminals
• Overload protection circuit
• Output polarity: positive or negative
• Rugged reinforced metal frame construction

Channels	1
Output voltage (V)	60
Output voltage accuracy	±(1% + 20 mV)
Output voltage display resolution	10 mV
Output current (A)	10
Output current accuracy	±(1% + 20 mA)
Output current display resolution	0.01 A
Ripple and Noise	10 mV
Load stability	±(1% + 10 mV)
Display	2 LED displays
Power supply	110 V / 220 V
Dimensions	10.4 x 5.5 x 14.2 in / 265 x 140 x 360 mm

Specifications

• 60V, 10A
• 1 Channel
• 4-wire circuit
• Power on/off load
• Resolution of 10mV / 10mA
• Output Polarity: Positive and Negative
• Digital Display shows Voltage and Current value
• Overload Protection Circuit
• Ripple and Noise: 10 mV
• Input Voltage: 100V/220V 50Hz/60Hz
• Dimensions: 10.4x5.5x14.2in / 265x140x360mm
• Weight: 37.5lb / 17kg

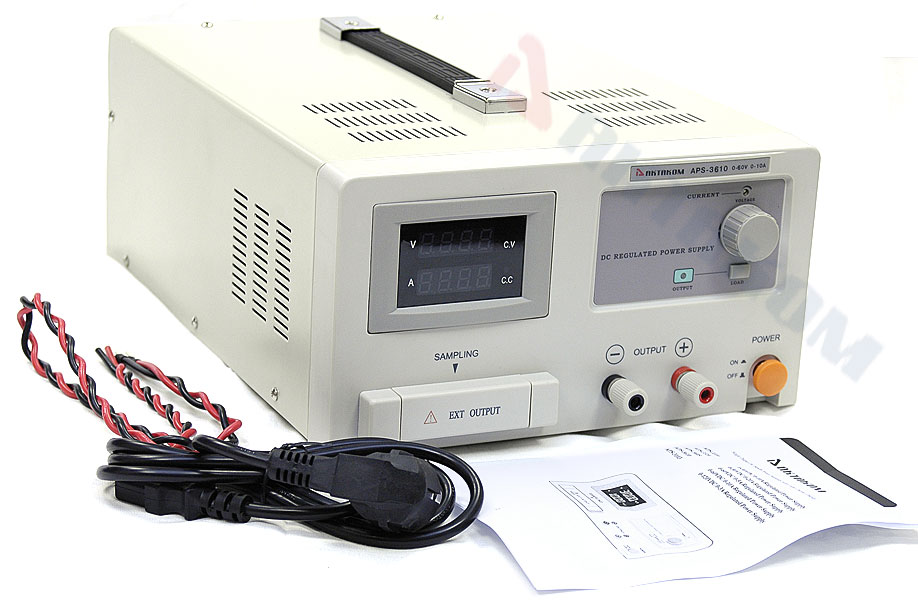

Included accessories

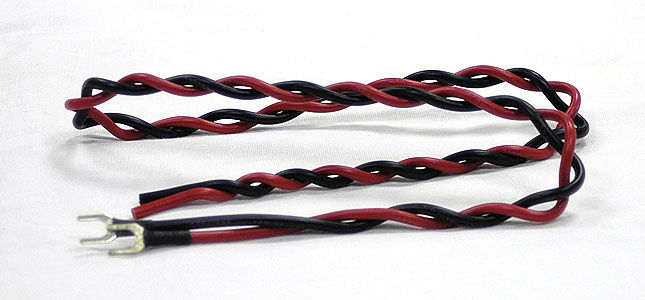

• Pair of high power Cables with connectors

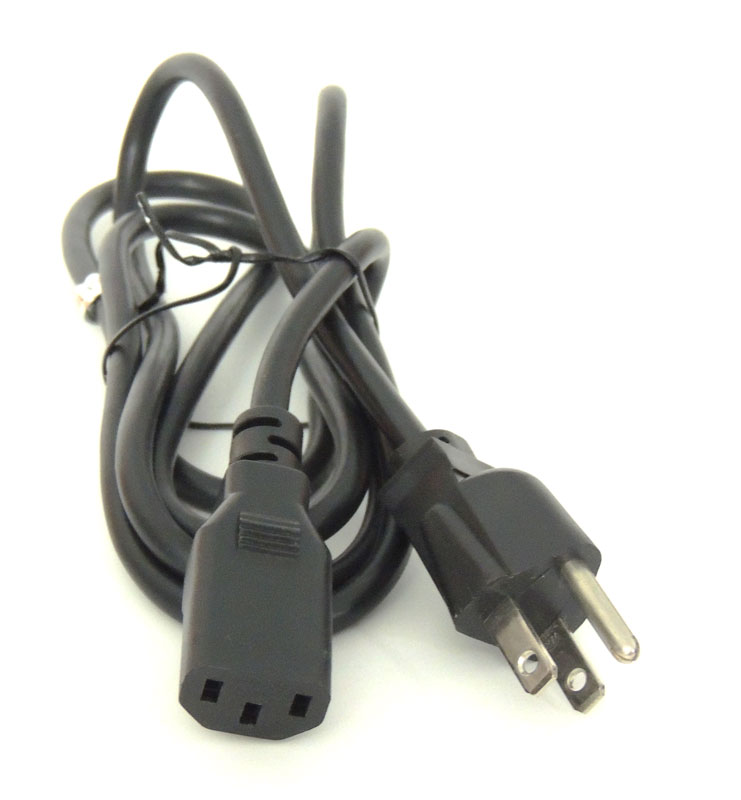

• Power Cord

User Manual

Power supply to load four-wire connection method

The sampling terminals are used under the following conditions: if the load has a distance from the power supply, the sampling terminals may be used to compensate for the inherent when using voltage drop a longer power line.

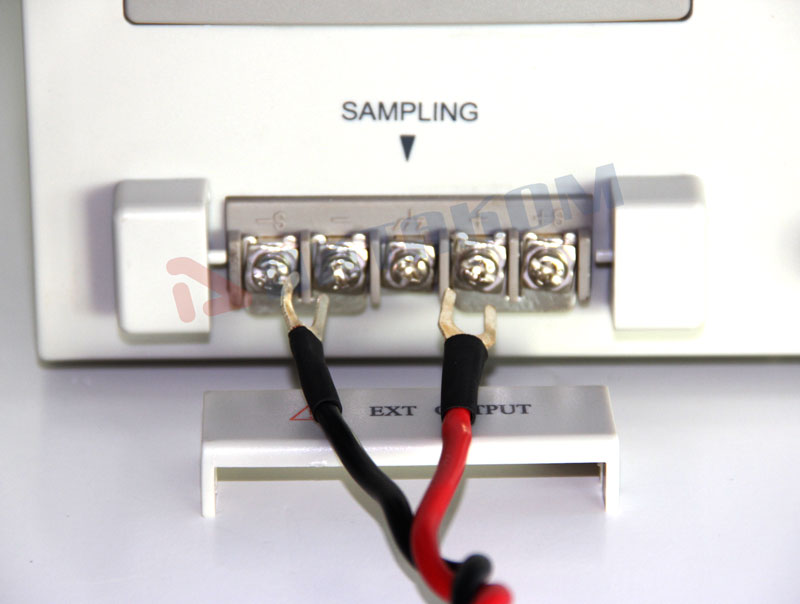

Sampling terminals connection to compensate the voltage drop

Sampling connection diagram

Attention! Disconnect the installed S- and S+ shorting wires when using the sampling connections.

Frequently Asked Questions

What is the maximum current consumption of APS-3610 power supply at full load?

How can I work in the current stabilization mode?

What instruction should I follow to work in the voltage stabilization mode?

Do AKTAKOM power supplies have short circuit protection?

May I use AKTAKOM power supplies to charge accumulators?

What is the maximum current consumption of APS-3610 power supply at full load?
At full load 60 V and 10 A (600 W DC) AKTAKOM APS-3610 DC power supply consumes 110 V and 10.4 A, ie 1144 VA. Up

How can I work in the current stabilization mode?

If OUTPUT indicator is red than press LOAD button. In that case OUTPUT indicator should go out and the current indicator will display the set current value. By using VOLTAGE adjustment rotary switch set the required output voltage (at the same time nothing should be connected to the output terminals «+» and «-»). By using CURRENT rotary switch set the maximum allowable current value (current limit value) for your load. If in the operating mode the load resistance change will cause the excess of the specified current limit, the power supply will automatically switch to the current stabilization mode and the output voltage will proportionally fall. Connect the load to the power supply and press LOAD button. OUTPUT indicator should become red. Before you disconnect the load press LOAD button. OUTPUT indicator will go out. Before switching off the power supply, disconnect the load. Up

What instruction should I follow to work in the voltage stabilization mode?

If OUTPUT indicator is red than press LOAD button. In that case OUTPUT indicator should go out and the current indicator will display the set current value. Adjust VOLTAGE adjustment rotary switches in order to obtain the maximum allowable load voltage on the power supply output. If in the operating mode the load resistance change will cause the excess of the specified voltage limit, the power supply will automatically switch to the voltage stabilization mode with setting on terminals «+» and «-» of the preset voltage value limit, and the output current will proportionally fall. By using CURRENT rotary switch set the maximum allowable current value (current limit value) for your load. Connect the load to the power supply and press LOAD button. OUTPUT indicator should become red. Before you disconnect the load press LOAD button. OUTPUT indicator will go out. Before switching off the power supply, disconnect the load. Up

Do AKTAKOM power supplies have short circuit protection?

Yes they have. Almost all modern power supplies have two operation modes: voltage stabilization mode and current stabilization mode. In case of short circuit the power supply automatically switches from the output voltage stabilization mode to the output current stabilization mode, and the output voltage starts proportionally dropping. At the same time the current in the load connected to the power supply will be limited with the value set with the screwdriver slot used to adjust the output current value on the front panel of the power supply. For the best protection it is recommended to set a low current value. In case of short circuit the current in the connected load will be limited with the value set on the power supply. Up

May I use AKTAKOM power supplies to charge accumulators?

AKTAKOM power supplies can’t be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device. Up

La Fuente DC de Poder regulada AKTAKOM APS-3310 proporciona energía de corriente precisa y estable. Es ideal para bancos de pruebas, laboratorios, escuelas e instalaciones de reparación. El botón multi-control de voltaje a su vez ayuda al usuario a marcar el voltaje exacto. La gran pantalla ayuda a leer los datos de forma digital (voltaje y corriente) con precisión.

Características

• Potencia de salida: 0-60VDC @ 0-10A.
• Tecnología SMD.
• Pantalla digital atractiva para mostrar el voltaje y la corriente.
• Ventilador de refrigeración.
• Alta precisión de la regulación de tensión.
• Sistema de terminal doble: terminales de tornillo expansible a toda prueba de seguridad.
• Circuito de protección por sobrecargas.
• Salida de polaridad: positiva o negativa.
• Armazón resistente de metal reforzado.
• Ondulación y ruido: 3 mV rms
• Dimensiones: 10.4x5.5x14.2in / 265x140x360mm
• Peso: 37.5lb / 17kg
