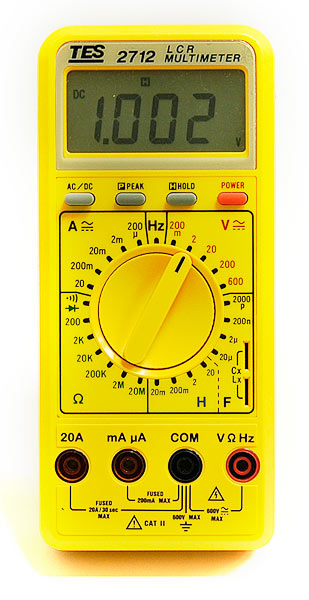

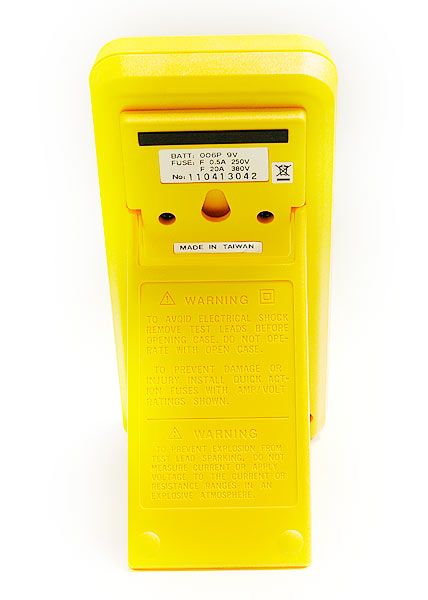

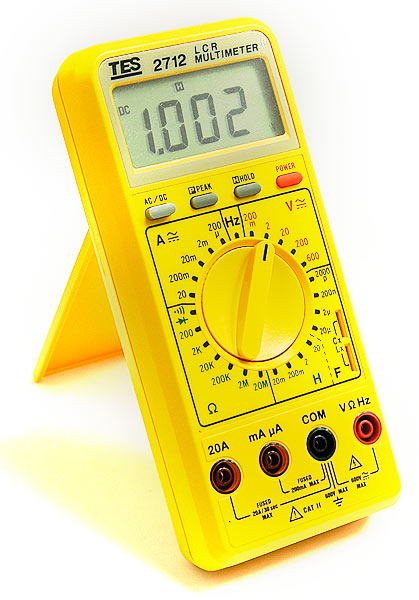

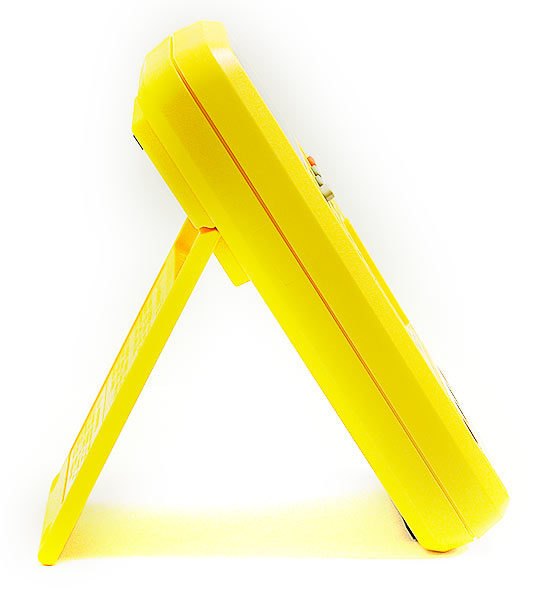

TES-2712 handheld digital multimeter is a complete laboratory in one device which combines the majority of measurement functions. TES-2712 handheld digital multimeter provides wide ranges, high level of reliability, complete safety against overload in case of a wrong connection and ergonomic design.
"Absolute measurement error" service allows you to estimate the measurement accuracy considering uncertainty (error) in the absolute value. It's important if you take measurements at the range edge when the error value contributes to the value displayed on the device screen.
To get the value range it'd be enough to enter the estimate of the value under measurement into Value input field and to see the range of possible values taking all of the standardized errors into consideration.
Note: a point is used as a separator of the integer and fractional part.
DC Voltage
Range
Resolution
Accuracy
Absolute error
Value-error
Value
Value+error
200 mV
0.1 mV
±(0.5%+1 digits)
±1.0995 mV
mV
2 V
1 mV
±(0.5%+1 digits)
±0.010995 V
V
20 V
10 mV
±(0.5%+1 digits)
±0.10995 V
V
200 V
100 mV
±(0.5%+1 digits)
±1.0995 V
V
600 V
1 V
±(0.5%+2 digits)
±4.995 V
V
AC Voltage
Range
Resolution
Accuracy
Absolute error
Value-error
Value
Value+error
200 mV
0.1 mV
±(1%+5 digits)
±2.499 mV
mV
2 V
1 mV
±(1%+5 digits)
±0.02499 V
V
20 V
10 mV
±(1%+5 digits)
±0.2499 V
V
200 V
100 mV
±(1%+5 digits)
±2.499 V
V
600 V
1 V
±(1.2%+5 digits)
±12.188 V
V
DC Current
Range
Resolution
Accuracy
Absolute error
Value-error
Value
Value+error
200 µA
0.1 μA
±(1%+1 digits)
±99002 µA
µA
2 mA
1 μA
±(1%+1 digits)
±990.02 mA
mA
20 mA
10 µA
±(1%+1 digits)
±0.2099 mA
mA
200 mA
100 µA
±(1%+1 digits)
±2.099 mA
mA
20 A
10 mA
±(1.2%+3 digits)
±0.26988 A
A
AC Current
Range
Resolution
Accuracy
Absolute error
Value-error
Value
Value+error
200 µA
0.1 µA
±(1.2%+3 digits)
±2.6988 µA
µA
2 mA
1 µA
±(1.2%+3 digits)
±0.026988 mA
mA
20 mA
10 µA
±(1.2%+3 digits)
±0.26988 mA
mA
200 mA
100 µA
±(1.2%+3 digits)
±2.6988 mA
mA
20 A
10 mA
±(1.5%+3 digits)
±0.32985 A
A
Frequency
Range
Resolution
Accuracy
Absolute error
Value-error
Value
Value+error
2 kHz
1 Hz
±(0.5%+2 digits)
±0.011995 kHz
kHz
20 kHz
10 Hz
±(0.5%+2 digits)
±0.11995 kHz
kHz
200 kHz
100 Hz
±(0.5%+2 digits)
±1.1995 kHz
kHz
2 MHz
1 kHz
±(0.5%+2 digits)
±0.011995 MHz
MHz
20 MHz
10 kHz
±(0.5%+2 digits)
±0.11995 MHz
MHz
Resistance
Range
Resolution
Accuracy
Absolute error
Value-error
Value
Value+error
200 Ω
0.1 Ω
±(0.8%+2 digits)
±1.7992 Ω
Ω
2 kΩ
1 Ω
±(0.8%+2 digits)
±0.017992 kΩ
kΩ
20 kΩ
10 Ω
±(0.8%+2 digits)
±0.17992 kΩ
kΩ
200 kΩ
100 Ω
±(0.8%+2 digits)
±1.7992 kΩ
kΩ
2 MΩ
1 kΩ
±(0.8%+2 digits)
±0.017992 MΩ
MΩ
20 MΩ
10 kΩ
±(1.5%+3 digits)
±0.32985 MΩ
MΩ
Capacitance
Range
Resolution
Accuracy
Absolute error
Value-error
Value
Value+error
2000 pF
1 pF
±(3%+10 digits)
±69.97 pF
pF
200 nF
100 pF
±(3%+10 digits)
±6.997 nF
nF
2 µF
1 nF
±(3%+10 digits)
±0.06997 µF
µF
20 µF
10 nF
±(3%+10 digits)
±0.6997 µF
µF
3½ digit display
Frequency mesasurement
Data-hold
Peak-hold function
Inductance, capacitance & ohm measurement
Dimensions: 7x3.2x1.5in / 180x82x38mm
Weight: 0.8lb / 365g (include battery)
Accessories

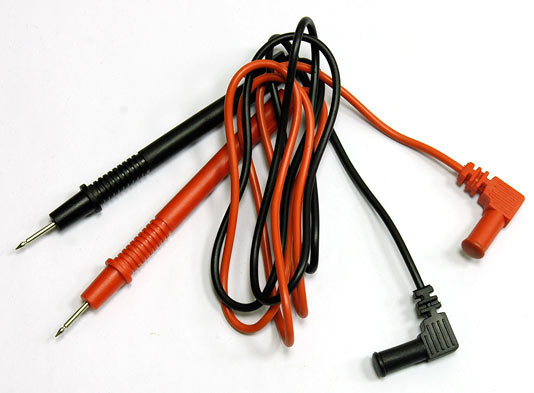

Test leads
Battery
User manual
Un completo laboratorio en un solo dispositivo el sueño del profesional de mas larga data. Hay un gran número de dispositivos que permiten la medición de magnitudes eléctricas en varias combinaciones. TES-2712 es un dispositivo compacto que combina la mayoría de los parámetros medibles. Rango de medida ampliados, alto nivel de confiabilidad, seguridad completa contra sobrecarga en caso de una conexión incorrecta, el diseño ergonómico de satisface las necesidades de los más difíciles de complacer al cliente.
Características
3 ½ dígitos.
Mediciones de frecuencia.
Conservador de datos (Data-hold).
Funcion de conservacion de maximas (Peak-hold).
Inductancia, capacitancia y medicion de resistencia ohm
