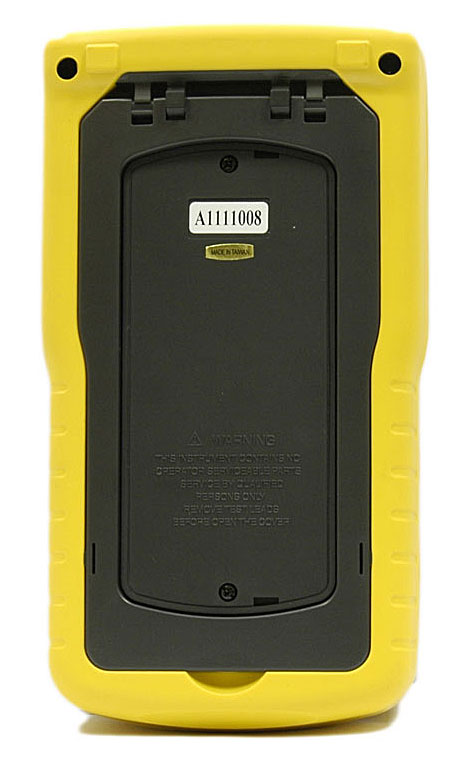

ACM-3192 Three Phase Power Analyzer

AKTAKOM ACM-3192 three phase power analyzer is designed to help maintenance engineers to identify power quality and energy efficiency issues. ACM-3192 three phase power analyzer (analog of Lutron DW-6092) has a unique function of real time SD card data recording in Excel format to help with power quality logging, troubleshooting and analysis.

ACM-3192 Power Analyzer Features and Benefits

• Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4
• Voltage and current is the True RMS value
• True Power (KW,MW,GW) measurement
• Apparent power ( KVA, MVA, GVA) measurement
• Reactive power (KVAR MVAR, GVAR) measurement
• Watt-Hour (WH, SH, QH, PFH)
• Power factor (PF), Phase angle
• Voltage measurement range: 10 to 600 ACV
• Current measurement range: 0.2A to 1200 ACA
• Programmable CT ratio (1 to 600) and PT ratio (1 to 1000)
• ACV input impedance is 10 MΩ
• Built-in clock and calendar
• Real time data record to SD memory card with no additional software use
• Sampling time set from 2 to 7200 seconds.

Interface	RS-232
Display	3.2 x 2.4 in / 81.4 x 61 mm; 320 x 240 pixels, with backlight

Specifications

• Display: 3.2 x 2.4 in / 81.4 x 61 mm; 320 x 240 pixels, with backlight
• Measurement:
  - ACV
  - ACA
  - AC WATT (True Power)
  - AC WATT (Apparent Power)
  - AC WATT (Reactive Power)
  - Power factor
  - Phase angle
  - Frequency
• Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4
• Voltage ranges: 10 ACV to 600 ACV, auto range
• Current ranges: 0.2 ACA to 1200 ACA, auto range/manual range
• ACV input impedance is 10 MΩ
• Frequency: 40 Hz to 1 KHz
• Data Hold: Freeze the display reading
• Data Record: SD Card Record
• Sampling time set from 2 to 7200 seconds.
• RS-232 interface
• Operating temperature: 32°F to 122°F / 0°C to 50°C
• Operating humidity: Less than 80% R.H.
• Power supply: 8x1.5 V (AA) batteries / AC adapter
• Dimensions:
  Clamp: 8.3 x 2.5 x 1.3 in / 210 x 64 x 33 mm
  Meter: 8.86 x 4.92 x 2.52 in / 225 x 125 x 64 mm
• Weight:
  Clamp: 16.5 oz / 467 g
  Meter: 33.7 oz / 955 g

AC voltage (TRUE RMS)

Range	Resolution	Accuracy
10.0 V…600.0 V Phase to neutral line	0.1 V	±(0.5% + 0.5 V)
10.0 V…600.0 V Phase to phase

Alternating current (TRUE RMS)

Range	Resolution	Accuracy
20 A	0.001 A (<10 A)	±(0.5% + 0.1 A)
	0.001 A (≥10 A)
200 A	0.01 A (<100 A)	±(0.5% + 0.5 A)
	0.1 A (≥100 A)
1200 A	0.1 A (<1000 A)	±(0.5% + 5 A)
	1 A (≥1000 A)

Power factor (PF)

Range	Resolution	Accuracy
0.00…1.00	0.01	±0.04

Phase angle

Range	Resolution	Accuracy
-180°…180°	0.1°	±1° *ACOS(PF)

Frequency

Range	Resolution	Accuracy
45…65 Hz	0.1 Hz	0.1 Hz

Active power

Range	Resolution	Accuracy
0.000…9.999 KW	0.001 KW	±(1% + 0.008 KW)
10.00…99.99 KW	0.01 KW	±(1% + 0.08 KW)
100.0…999.9 KW	0.1 KW	±(1% + 0.8 KW)
1.000…9.999 MW	0.1 KW	±(1% + 0.008 MW)

Apparent power

Range	Resolution	Accuracy
0.000…9.999 KVA	0.001 KVA	±(1% + 0.008 KVA)
10.00…99.99 KVA	0.01 KVA	±(1% + 0.08 KVA)
100.0…999.9 KVA	0.1 KVA	±(1% + 0.8 KVA)
1.000…9.999 MVA	0.1 KVA	±(1% + 0.008 MVA)

Reactive power

Range	Resolution	Accuracy
0.000…9.999 KVAR	0.001 KVAR	±(1% + 0.008 KVAR)
10.00…99.99 KVAR	0.01 KVAR	±(1% + 0.08 KVAR)
100.0…999.9 KVAR	0.1 KVAR	±(1% + 0.8 KVAR)
1.000…9.999 MVAR	0.1 KVAR	±(1% + 0.008 MVAR)

Watt Hour

Range	Resolution	Accuracy
0.000…9.999 KWH	0.001 KWH	±(1% + 0.008 KWH)
10.00…99.99 KWH	0.01 KWH	±(1% + 0.08 KWH)
100.0…999.9 KWH	0.1 KWH	±(1% + 0.8 KWH)
1.000…9.999 MWH	0.1 KWH	±(1% + 0.008 MWH)

VA hour

Range	Resolution	Accuracy
0.000…9.999 KVAH	0.001 KVAH	±(1% + 0.008 KVAH)
10.00…99.99 KVAH	0.01 KVAH	±(1% + 0.08 KVAH)
100.0…999.9 KVAH	0.1 KVAH	±(1% + 0.8 KVAH)
1.000…9.999 MVAH	0.1 KVAH	±(1% + 0.008 MVAH)

Reactive power hour

Range	Resolution	Accuracy
0.000…9.999 KVARH	0.001 KVARH	±(1% + 0.008 KVARH)
10.00…99.99 KVARH	0.01 KVARH	±(1% + 0.08 KVARH)
100.0…999.9 KVARH	0.1 KVARH	±(1% + 0.8 KVARH)
1.000…9.999 MVARH	0.1 KVARH	±(1% + 0.008 MVARH)

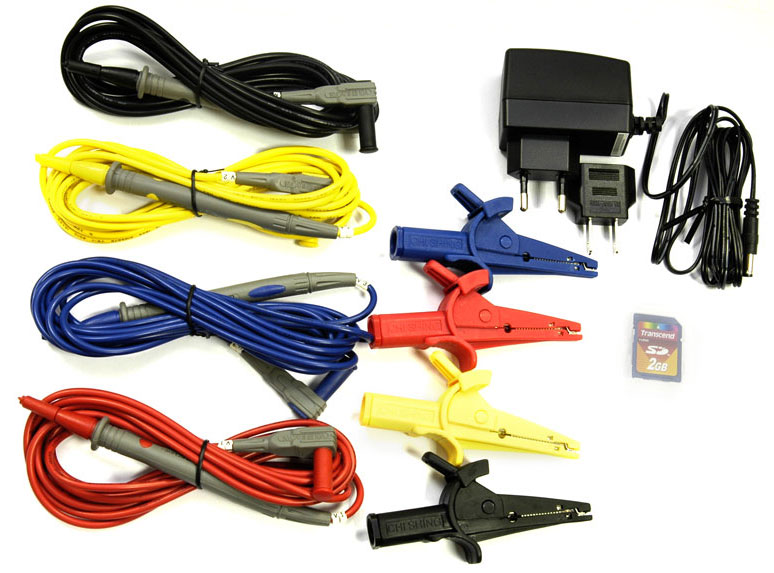

Accessories

• 4 Test Leads
• 4 Alligator clips

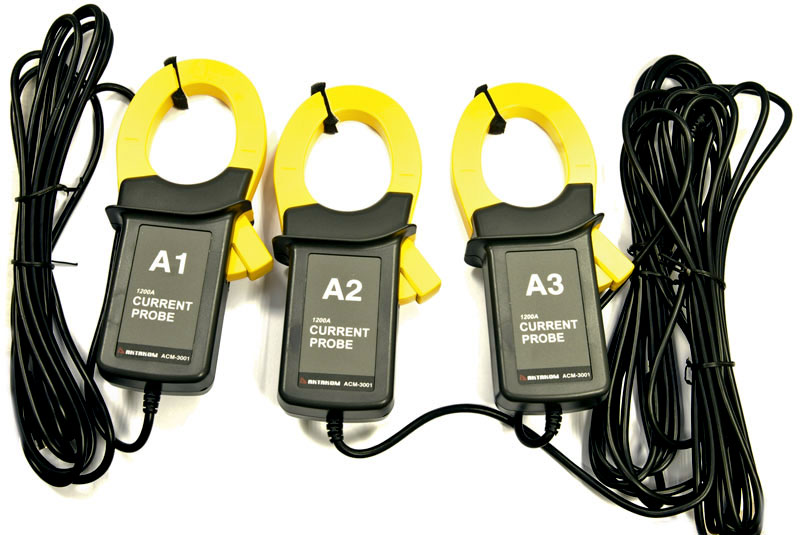

• 3 Clamp Probes
• AC to DC 9V adapter
• 2 G SD memory card
• Carrying bag

AKTAKOM ACM-3192 es un analizador de energía trifásico multifuncional con una función única de grabación en tarjeta SD en tiempo real en formato Excel.

Caracteristicas

• Análisis para sistema de alimentación múltiple trifásico, 1P / 2W, 1P / 3W, 3P / 3W, 3P / 4
• El voltaje y la corriente es el verdadero valor RMS
• Medida de potencia verdadera (KW, MW, GW)
• Medida de potencia aparente (KVA, MVA, GVA)
• Medición de potencia reactiva (KVAR MVAR, GVAR)
• Watt-Hour (WH, SH, QH, PFH)
• Factor de potencia (PF), ángulo de fase
• Rango de medición de voltaje: 10 a 600 ACV
• Rango de medición de corriente: 0.2A a 1200 ACA
• Proporción de CT programable (1 a 600) y relación PT (1 a 1000)
• La impedancia de entrada ACV es de 10 MΩ
• Reloj y calendario incorporados.
• Registro de datos en tiempo real en la tarjeta de memoria SD sin uso adicional de software
• iempo de muestreo ajustado de 2 a 7200 segundos.
