AM-6007 Milliohm Meter

AKTAKOM AM-6007 Milliohm Meter
Click an image to enlarge
Brand:AKTAKOM
RS-232 (Recommended Standard 232)

Milliohmmeter AM-6007 is designed to measure low values of resistance in circuits and their components, as well as contact resistances. The measurements are performed with 2 and 4-wire Kelvin clips.

Retail price :$599.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

In stock, 2 left

BuyAdd to cart

Milliohmmeter AM-6007 is designed to measure low values of resistance in circuits and their components, as well as contact resistances. The measurements are performed with 2 and 4-wire Kelvin clips.

Measuring range: 1,000 milliohms ... 6.0000 ohms
Error: 0.05%
Test current: 100 mA, 1 mA, 10 mA, 100 mA, 1 A, 5 A
Range selection: Automatic and manual
Cable length measurement: m, ft
Memory: 3000 measurements
Screen: Wide LCD display, 6.5 4 bits off the backlight
Power supply: 12V DC 2A, or acc.10 hours of battery life
Interface: RS-232C / USB
Dimensions: 257x155x57 mm
Weight: 1.16 kg

InterfaceRS-232

Measuring range: 1,000 milliohms ... 6.0000 ohms
Error: 0.05%
Test current: 100 mA, 1 mA, 10 mA, 100 mA, 1 A, 5 A
Range selection: Automatic and manual
Cable length measurement: m, ft
Memory: 3000 measurements
Screen: Wide LCD display, 6.5 4 bits off the backlight
Power supply: 12V DC 2A, or acc.10 hours of battery life
Interface: RS-232C / USB
Dimensions: 257x155x57 mm
Weight: 1.16 kg

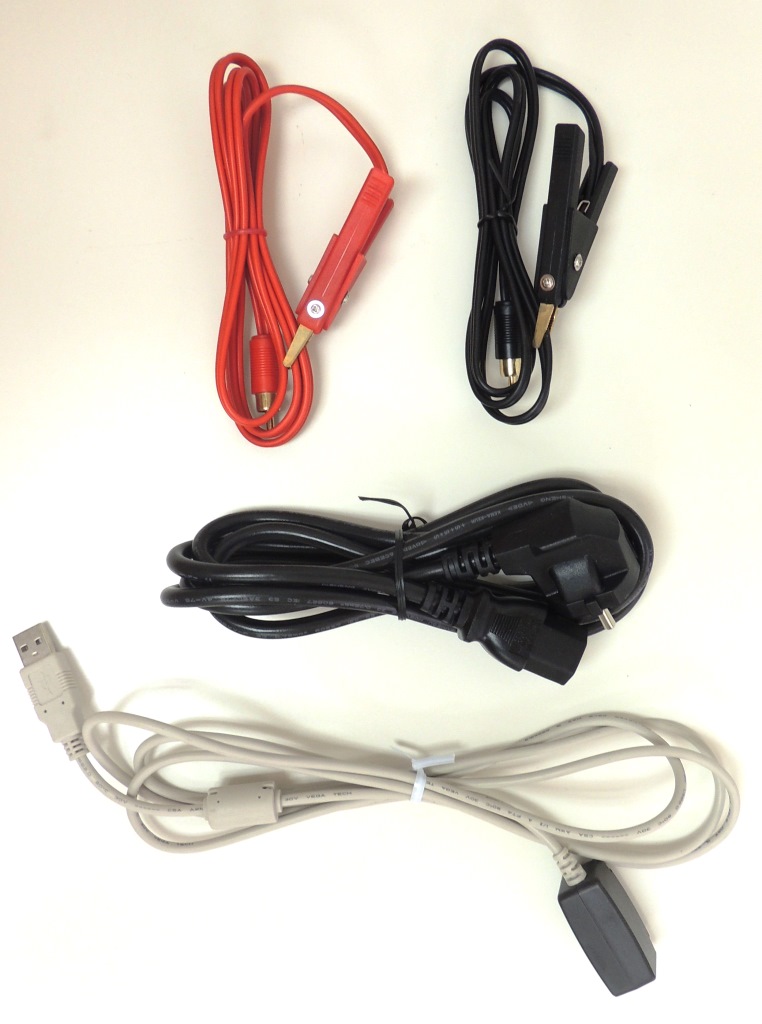

• Cable RS-232 / USB
• Battery
• Adapter
• 2 and 4-wire Kelvin clips
• Manual

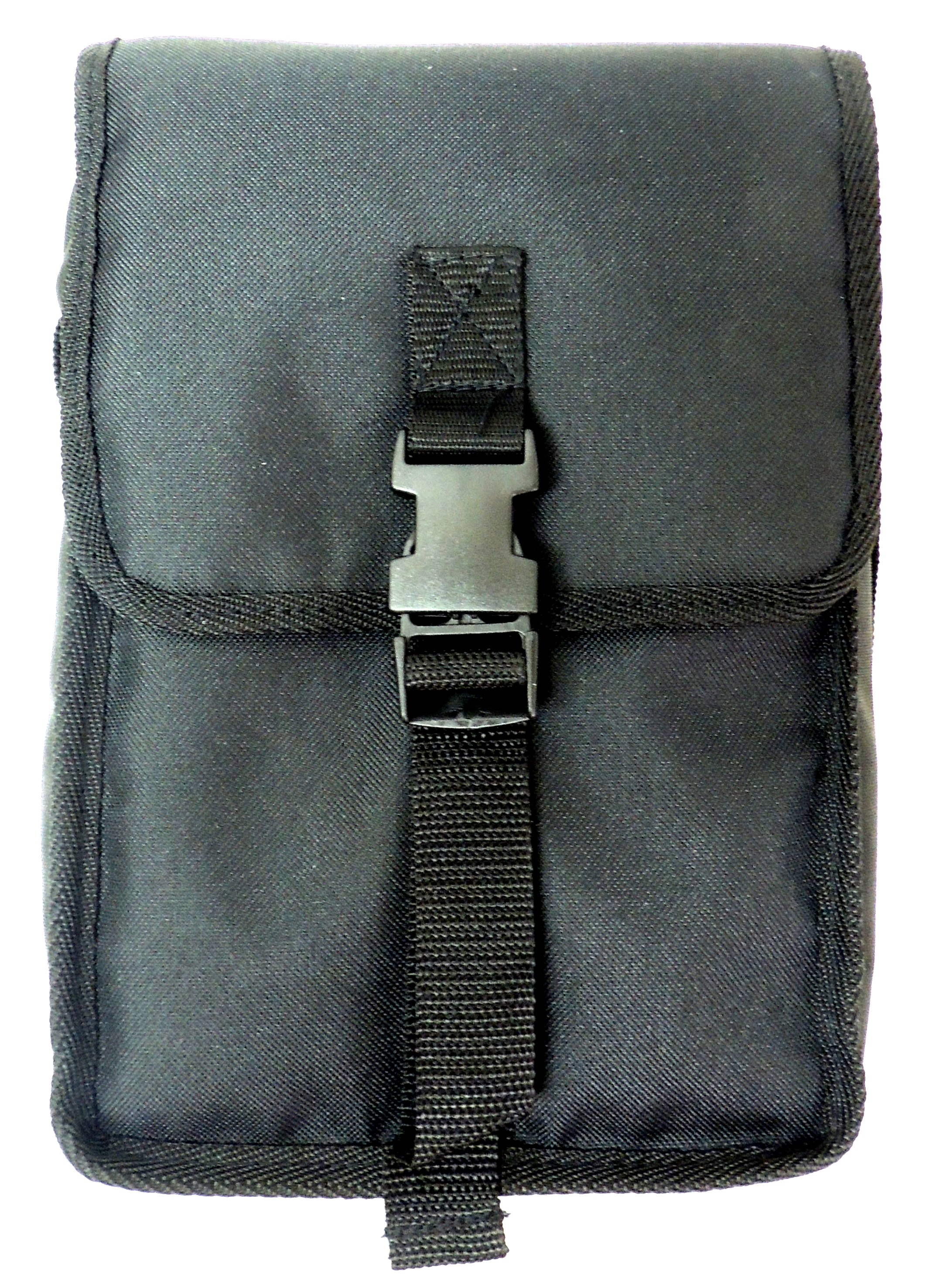

• Carrying bag

El Milliohmmeter AM-6007 est diseado para medir valores bajos de resistencia en circuitos y sus componentes, as como resistencias de contacto. Las mediciones se realizan con clips Kelvin de 2 y 4 hilos.

Rango de medicin: 1,000 miliohmios ... 6.0000 ohmios
Error: 0.05%
Corriente de prueba: 100 mA, 1 mA, 10 mA, 100 mA, 1 A, 5 A
Seleccin de rango: automtico y manual.
Medida de longitud de cable: m, ft
Memoria: 3000 medidas.
Pantalla: Pantalla LCD ancha, 6.5 4 bits de la luz de fondo
Fuente de alimentacin: 12V DC 2A, o acc.10 horas de duracin de la batera
Interfaz: RS-232C / USB
Dimensiones: 257x155x57 mm.
Peso: 1.16 kg.
