ATE-2036BT Thermometer, Real Time SD Memory Card Datalogger with Bluetooth interface

AKTAKOM ATE-2036BT Thermometer, Real Time SD Memory Card Datalogger with Bluetooth interface
Click an image to enlarge
Brand:AKTAKOM
Warranty:1 year
USB (through interface converter) RS-232 (Recommended Standard 232) Bluetooth (IEEE 802.15.1)

Real time SD memory card Datalogger with Bluetooth interface.

Retail price :$189.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

Sold out

Subscribe

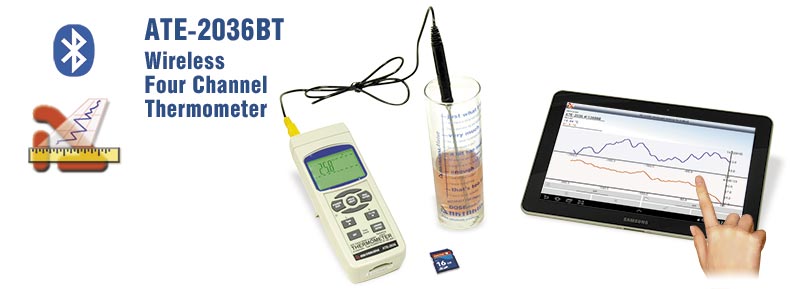

AKTAKOM ATE-2036BT is a 4 channels thermometer with real time SD memory card datalogger with Bluetooth interface. Bluetooth interface provides wireless connection for data displaying and logging on a PC (Windows OS) and any mobile device containing this interface (Android OS).

Features:

  • Type K/J/T/E/R/S, Pt 100ohm, measurement with 4 displays
  • Shows 4 channels on the LCD at the one time
  • Type K: -148 to 2372F / -100 to 1300C
  • Type J: -148 to 2192F / -100 to 1200C
  • Pt 100ohm: -327.82 to 1562F / -199.9 to 850.0C
  • C/F, 0.1 degree / 1 degree
  • 4 channels (T1, T2, T3, T4), T1-T2
  • Microcomputer circuit provides intelligent function and high accuracy
  • Offset adjustment for the Type K/J/T/E/R/S measurement
  • Offset adjustment for the Pt 100 measurement
  • Measuring unit can select to C or F
  • Real time SD memory card Datalogger, Built-in Clock and Calendar, real time data recorder, sampling time set from 1 second to 3600 seconds
  • Manual datalogger is available (set the sampling time to 0), during the use of manual datalogger function it can set the different position (location) No. (position 1 to position 99)
  • Innovation and easy operation, computer doesnt need any extra software, after the datalogger use just take the SD card away from the meter and plug in the SD card into the computer, it can download all of the measured value with the time information (year/month/date/hour/minute/second) to the Excel directly; then users can make the further data or graphic analysis by themselves
  • SD card capacity: 1 GB to 16 GB
  • LCD with green light backlight, easy reading
  • Can default auto power off or manual power off
  • Data hold, record max. and min. reading
  • Microcomputer circuit, high accuracy
  • Power by UM3/AA (1.5V) x 6 batteries or DC 9V adapter
  • Interface: RS-232, USB via interface converter, Bluetooth
  • Heavy duty & compact housing case

Temperature-199.9...1700 C / -327...3092 F
Temperature resolution0.1 C / 0.1 F
Temperature sensor typeType K thermocouple, Type J thermocouple, Type E thermocouple, Type T thermocouple, Type R thermocouple, Type S thermocouple, PT100
Data hold+
Min/Max measurement+
Special featuresSD memory card
InterfaceUSB (through interface converter), RS-232, Bluetooth
DisplayLCD
Power supply6 x 1.5 V battery, AC/DC power adapter
Dimensions7.0 x 2.7 x 1.9 in / 177 x 68 x 45 mm

Specifications:

General Specifications:

Circuit: Custom one-chip of microprocessor LSI circuit

Display:

LCD size: 2.1x1.5in/52x38mm
LCD with green backlight (ON/OFF)

Channels: T1, T2, T3, T4, T1-T2

Sensor type:

  • Type K thermocouple probe
  • Type J/T/E/R/S thermocouple probe
  • PT 100ohm probe

Cooperate with 0.00385 alpha coefficient, meet DIN IEC 751

Resolution: 0.1C/1C, 0.1F/1F

Datalogger / Sampling Time / Setting range:

Auto:

1 second to 3600 seconds
Sampling time can set to 1 second but memory data may loss

Manual:

Push the data logger button once will save data one time
Set the sampling time to 0 second
Manual mode, can also select the 1 to 99 position (Location) no.

Memory Card: SD memory card. 1 GB to 16 GB

Advanced setting:

  • Set clock time (Year/Month/Date, Hour/Minute/ Second)
  • Decimal point of SD card setting
  • Auto power OFF management
  • Set beep Sound ON/OFF
  • Set temperature unit to C or F
  • Set sampling time
  • SD memory card Format

Temperature Compensation: Automatic temp. compensation for the type K/J/T/E/R/S thermometer

Linear Compensation: Linear Compensation for the full range

Offset Adjustment: Available for Type K/J/T/E/R/S and Pt 100ohm

Probe Input Socket:

Type K/J/T/E/R/S 2 pin thermocouple socket

Pt 100ohm: Ear phone socket

Over Indication: Show " _ _ _ _ "

Data Hold: Freeze the display reading

Memory Recall: Maximum & Minimum value

Sampling Time of Display: Approx. 1 second

Data Output:

RS-232 serial interface capable of PC connection via USB with Aktakom ACE-1025 interface converter and wide data processing capabilities with ADLM-W software or ASDM and ASDL applications Windows and Android based respectively.

Power off: Auto shut off saves battery life or manual off by push button

Operating Temperature: 0 to 50C

Operating Humidity: Less than 85%R.H.

Power Supply:

  • Alkaline or heavy duty DC 1.5 V battery (UM3, AA) x 6 PCs, or equivalent
  • ADC 9V adapter input. (AC/DC power adapter is optional)

Power Current:

  • Normal operation (w/o SD card save data and LCD Backlight is OFF): Approx. DC 8.5mA
  • When SD card save the data and LCD Backlight is OFF): Approx. DC 30mA

If LCD backlight is on the power consumption will increase approx. 14mA

Electrical Specifications (235C):

PT 100 ohm
Resolution Range Accuracy
0.1C -199.9 to 850.0C (0.4%+1C)
0.1F -327.0 to 999.9F (0.4%+1.8F)
1F 1000 to 1562F (0.4%+2F)

Pt 100ohm probe TP-101 is the optional accessory

Type K/J/T/E/R/S:

Sensor Type Resolution Range Accuracy
Type K 0.1C -50.1 to -100.0C (0.4%+1C)
-50.0 to 999.9C (0.4%+0.5C)
1C 1000 to 1300C (0.4%+1C)
0.1F -58.1 to -148.0F (0.4%+1.8F)
-58.0 to 999.9F (0.4%+1F)
1F 1000 to 2372F (0.4%+2F)
Type J 0.1C -50.1 to -100.0C (0.4%+1C)
-50.0 to 999.9C (0.4%+0.5C)
1C 1000 to 1150C (0.4%+1C)
0.1F -58.1 to -148.0F (0.4%+1.8F)
-58.0 to 999.9F (0.4%+1F)
1F 1000 to 2102F (0.4%+2F)
Type T 0.1C -50.1 to -100.0C (0.4%+1C)
-50.0 to 400.0C (0.4%+0.5C)
0.1F -58.1 to -148.0F (0.4%+1.8F)
-58.0 to 752.0F (0.4%+1F)
Type E 0.1C -50.1 to -100.0C (0.4%+1C)
-50.0 to 900.0C (0.4%+0.5C)
0.1F -58.1 to -148.0F (0.4%+1.8F)
-58.0 to 999.9F (0.4%+1F)
1F 1000 to 1652F (0.4%+2F)
Type R 1C 0 to 600C (0.5%+1C)
601 to 1700C (0.5%+1C)
1F 32 to 1112F (0.5%+2F)
1113 to 3092F (0.5%+2F)
Type S 1C 0 to 600C (0.5%+1C)
601 to 1500C (0.5%+1C)
1F 32 to 1112F (0.5%+2F)
1113 to 2732F (0.5%+2F)

Remark:

a. Accuracy value is specified for the meter only
b. Accuracy is tested under the meter environment temperature within 235C
c. Linearity Correction: memorizes the thermocouple curve into the intelligent CPU circuit
Above specification tests under the environment RF Field Strength less than 3 V/M & frequency less than 30MHz only

Weight: 1.08lb/489g
Dimensions: 7.0x2.7x1.9in/177x68x45mm

General accessories:

  • Instruction manual
  • Hard carrying case, CA-06
  • Soft carrying case, CA-05A

Optional Accessories:

  • Type K thermocouple probe; TP-01, TP-02A. TP-03, TP-04
  • Pt 100ohm probe, TP-101
  • SD Card (1 G)
  • SD Card (2 G)
  • AC to DC 9V adapter
  • USB cable, USB-01
  • RS-232 cable, UPCB-02
  • Data Acquisition software, SW-U801-WIN

ATE-2036BT applications

Type K measurement

  1. Power on the meter by pressing the "Power" (3-2, Fig. 1)button once. When the meter is already on pressing "Power" button once (>2s) will turn off the meter
  2. Meter default Temp. sensor type is Type K, the display will show "K" indicator
  3. The default temperature unit is°C (°F)
  4. Insert the Type K probes into the "T1, T2, T3, T4 input socket" (3-9, Fig. 1).
  5. The LCD will show the 4 channels (T1, T2, T3, T4) of temperature value at the same time. If the certain channels do not insert the temperature probes the relative channel display will show over range "- - - - -".

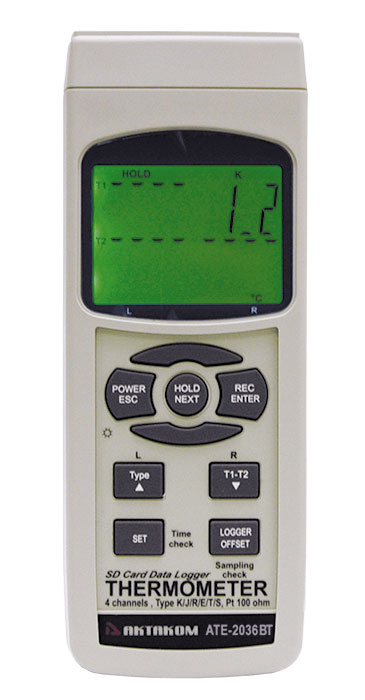

ATE_2036 3-1 Display
3-2 Power Button (ESC, Backlight Button)
3-3 Hold Button (Next Button)
3-4 REC Button (Enter Button)
3-5 Type Button (▲ Button, L Button)
3-6 T1-T2 Button (▼ Button, R Button)
3-7 SET Button (Time check Button)
3-8 Logger Button (OFFSET Button, Sampling time check Button)
3-9 T1,T2,T3,T4 input socket (Type K, Type J)

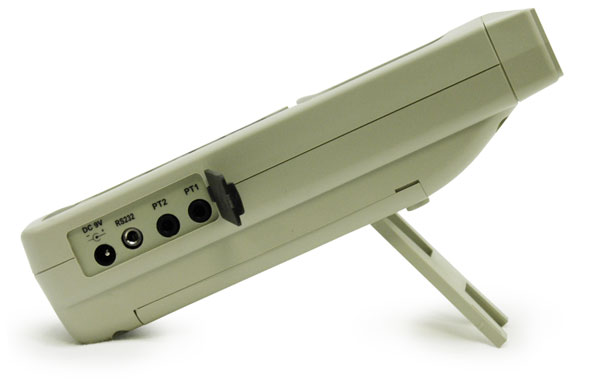

3-10 PT1 input socket (Pt 100 ohm)
3-11 PT2 input socket (Pt 100 ohm)
3-12 RS-232 output terminal
3-13 DC 9V adapter socket

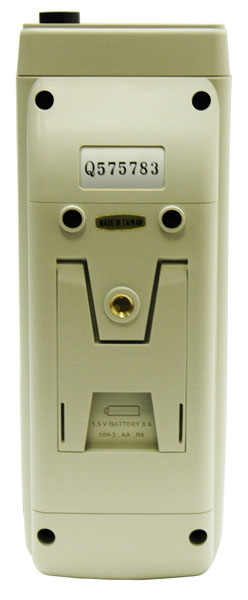

3-14 Tripod Fix Nut
3-15 Battery Cover Screws
3-16 Battery compartment/Cover
3-17 Stand

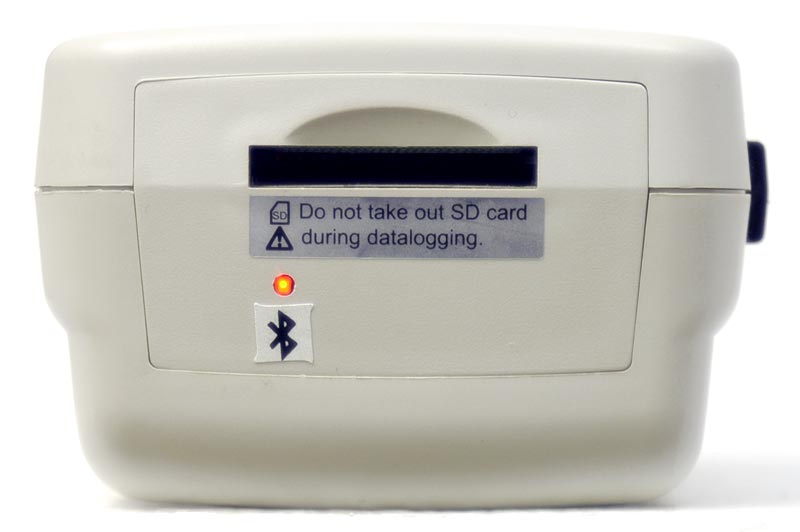

3-18 SD card socket

Pt 100 ohm measurement

  1. All the measuring procedures are same as the Type K except to select the Temp. Sensor type to "Pt" by pressing the "Type Button" (3-5, Fig. 1) once in sequence until the right down LCD display show "Pt" text as:
  2. Insert the Pt 100 ohm probe (optional, PT-101) to

    PT1 input socket (3-10, Fig. 1)
    PT2 input socket (3-11, Fig. 1)

    * The Pt 100 ohm measurement only allow max. two channels (two probes) input.

Type J/T/E/R/S measurement

All the measuring procedures are same as the Type K except to select the Temp. Sensor type to "Type J/K/T/E/R/S" by pressing the "Type Button" (3-5, Fig. 1) once in sequence until the up LCD display show "J/T/E/R/S" indicator.

T1-T2 measurement

If the meter already insert two probes:
Type K/J/T/E/R/S: T1, T2 input socket
Pt 100 ohm: PT1, PT2 input socket

Pressing the "T1-T2 button" (3-6, Fig. 1), display will show the difference temperature value between T1, T2 (PT1, PT2) as:


Frequently Asked Questions

  • Can I using Aktakom Data Logger Monitor (ADLM-W) software load all of the information from the memory card to plot a graph?

  • Can I using Aktakom Data Logger Monitor (ADLM-W) software load all of the information from the memory card to plot a graph?

    The environment meter records data to the memory card in *.xls format. All of the data can be copied to the PC after the measurement process.

    Aktakom Data Logger Monitor (ADLM-W) software can be used for the measurement data transmission (using Aktakom ACE-1025 interface converter) that means for online monitoring only.


    Up

    Aktakom ATE Easy Monitor (ATEE Monitor)

    AKTAKOM ATE Easy Monitor software provides the numerical indication of 4 channel measurements as well as the data recording into file in CSV format. For the device connection the use of ACE-1025/ACE-1026 USB-RS232 interface converters is required.

    Learn more...

    Free for registered users

    Download
    (2.16 Mb)
    Product registration required

    Aktakom Data Logger Monitor (ADLM-A)

    ADLM-A software is designed for data reading from devices of AKTAKOM ATT, ATE series, for measurement data acquisition, its processing, displaying and storage in a tablet PC with Android OS of 4.0 and more advanced versions.

    Learn more...

    Aktakom Data Logger Monitor (ADLM-W)

    ADLM-w software is designed for data reading from devices of AKTAKOM ATT, ATE series, for measurement data acquisition, its processing, displaying and storage in a PC with Windows XP x32, Windows 7 x64, Windows 7x32, Windows 8 x64, Windows Vista OS.

    Learn more... Download
    (8.68 Mb)
    Product registration required

    Aktakom Smart Data Logger (ASDL)

    Aktakom Smart Data Logger (ASDL) software is designed for data reading received from AKTAKOM ATT and ATE series devices, measurement data acquisition, its processing, displaying, including graphs, and saving to a mobile device with Android 4.0 or more advanced OS version.

    Learn more...

    Aktakom Smart Data Monitor (ASDM)

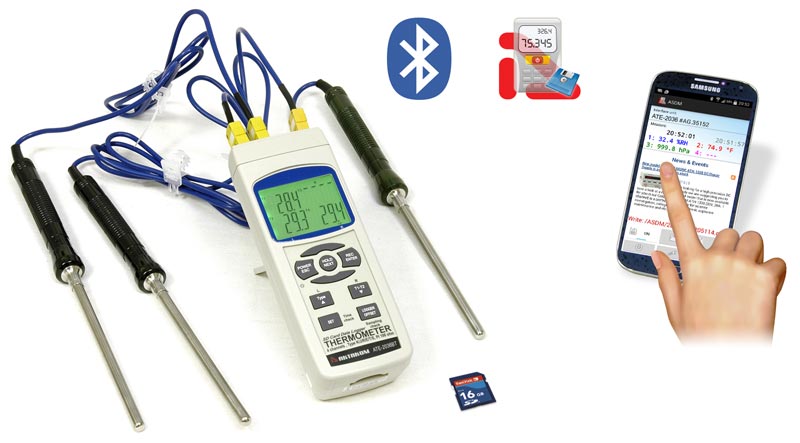

    Aktakom Smart Data Monitor (ASDM) software is designed for the connection to AKTAKOM ATT and ATE series via Bluetooth interface, for measurement data acquisition, its displaying and saving to a mobile device with Android 4.0 or newer OS.

    Learn more...

    Free for registered users
