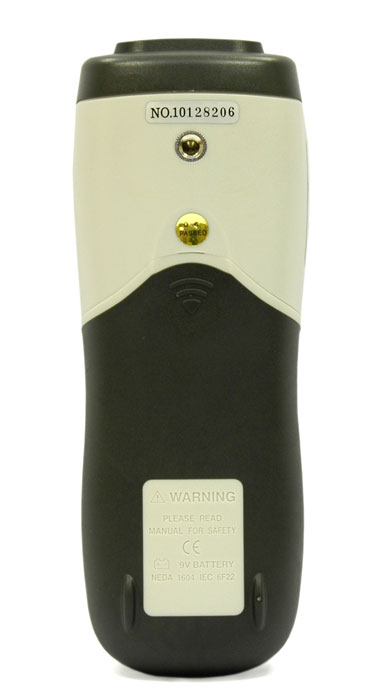

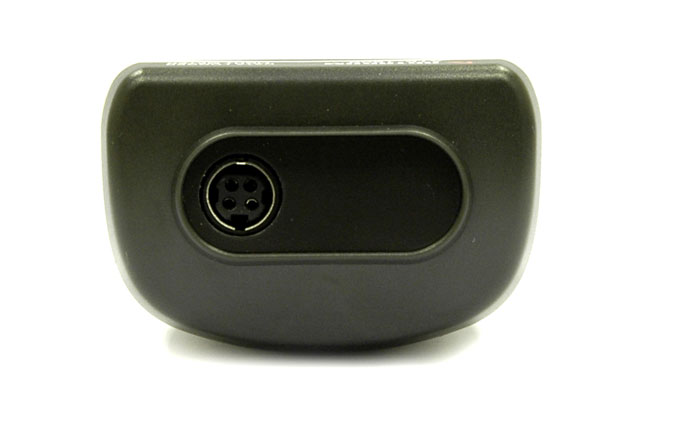

ATE-1509 Light Meter

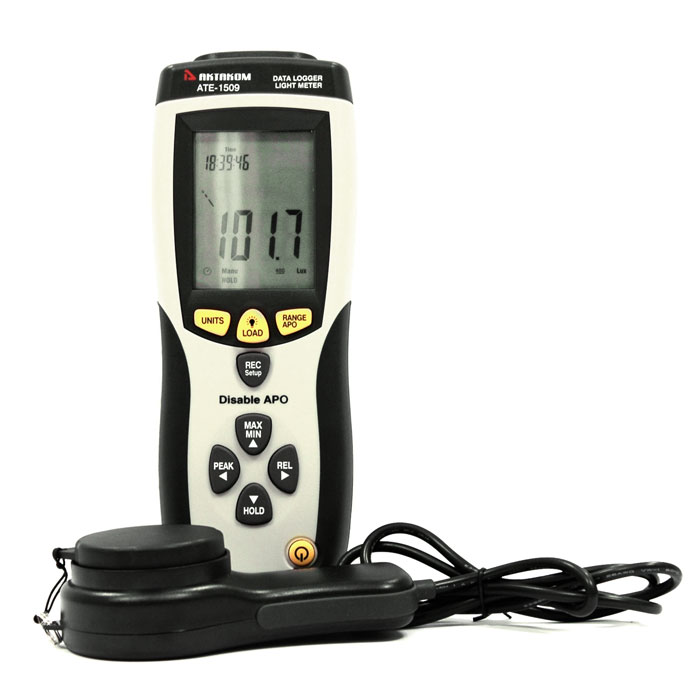

AKTAKOM ATE-1509 light meter provides accurate display light level in terms of Foot Candles (FC) or LUX over wide range. Just turn the Function Switch to select the "lux" scale and set the range to desired one, then remove the photo detector to light source in a horizontal position and read the illuminance norminal from the LCD display. When the measurement is completed replace the photo detector from the light source. ATE-1509 light meter (analog of DT-8809A) also includes a data logger function.

Features

• LCD display counts: 4000
• Auto Ranging
• Analog bargraph/segments: 41-segments
• Data Logger
• Peak Hold
• Relative mode
• Max and Data Hold
• Auto Power Off
• Low battery indication
• User selectable FC/Lux
• Output: USB
• Capacity for data logging 99
• Total accuracy: for C.I.E standard illuminate A (2856K)

Specifications

• Max Range: 400,000 lux
• Accuracy: ±5%±10d (<10,000 lux), ±10%±10d (>10,000 lux)
• Max Resolution: 0.1 lux / 0.01 Fc
• Measuring rate: 1.5 times/second
• Photo Detector: 4.5x2.4x1.1in / 115x60x27mm
• Data Logger
• USB Interface
• Dimensions (WxHxD): 3x8x2in / 75x203x50mm
• Weight: 9.8oz / 280g

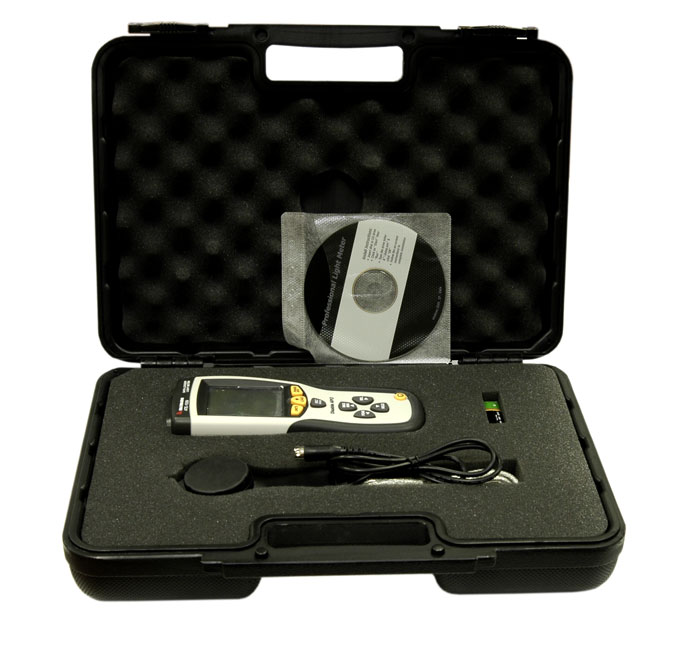

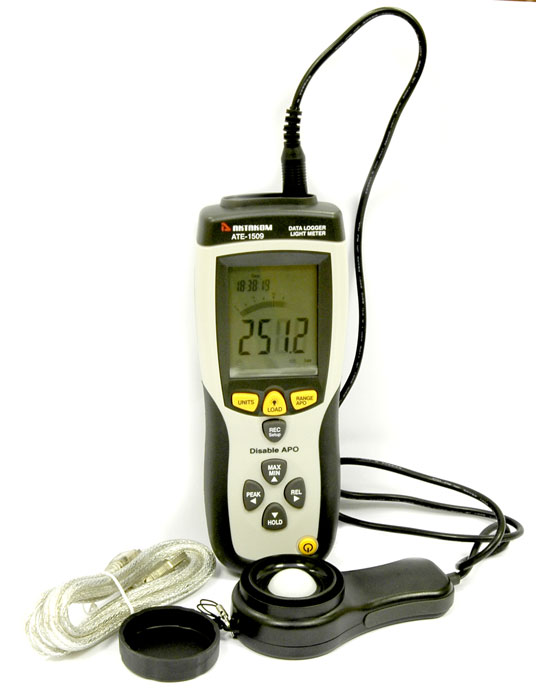

Included accessories

1. 9V battery

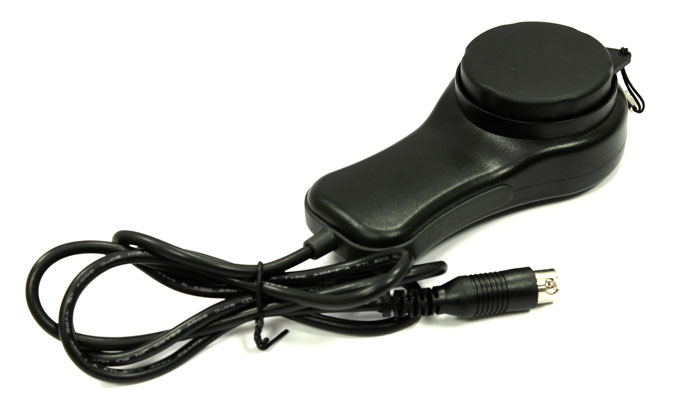

2. Photo Detector

3. USB cable

4. Software

5. Carrying case and Gift box

Operation instructions

1. Power-up: Press the power key to turn the meter ON or OFF
2. Selecting the Lux or FC scale: Set the range selection switch to desired Lux or FC range
3. Remove the photo detector cap and face it light source in a horizontal position
4. Press the REC/SET key and RANGE/APO key, Enable the AUTO power off or Disable this function
5. Read the illuminance nominal from the LCD display
6. Over range: If the instrument only displays “OL”, the input signal is too strong, and a higher range should be selected. The range will show on the down of the LCD, LUX: 400 -> 4k -> 40k -> 400k; FC: 40 -> 400 -> 4k -> 40k
7. Data-Hold mode: Press the hold key to select Data-Hold mode. When HOLD mode is selected, the illuminance meter stops all further measurements. Press the HOLD key again to exit Data-Hold mode. Then it resumes normal operation
8. Peak-Hold mode: Press the PEAK key to choose Pmax or Pmin recorder mode, and expose the photo detector to light pulse measuring field. Press the PEAK key again to exit PEAK recorder mode, then the meter will resume normal operation
9. Maximum and Minimum mode: Press MAX/MIN key to choose the Maximum (MAX) reading, Minimum (MIN) reading and current reading (MAX/MIN blink) recorder mode. Press MAX/MIN key again to exit this mode.
10. Relative reading mode: Press REL key to enter Relative mode. The display shown zero value and the current reading will be stored as a zero-in value. Press again to exit this mode

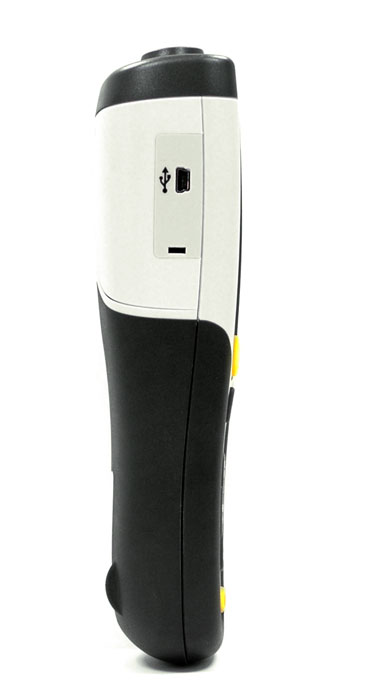

11. USB mode: connect the PC with USB
12. Back-light function: Press the Backlight key to turn on. Press again to turn off
13. When the measurement is completed, replace the photo detector cap and turn the meter off
14. Setup time and sampling rate: Press the MEM/SETUP and UNITS key start to setup the time and sampling. The first setup target is The hour. Press key “PEAK or REL” to choose the object of the setting. Press “REL” key to choose object to repeat as below process: Hour -> minute -> second -> sampling -> month -> day -> week -> year -> hour ……. Press PEAK key to choose the object and repeat as below process: Hour -> year -> week -> day -> month -> sampling -> second -> minute -> hour -> year ……. Press MAX/MIN key to add object of setting. Press HOLD key to reduce the object of seting. Hold key of MEM/SETUP and UNITS to exit the setting time and sampling mode, and then confirm.
15. MEM function: Press key of MEM/SET to save the present data HOLD key of LOAD 5s start to load the records. Press key of MAX/MIN to add the number of records. Press key of HOLD to reduce the number of records. After you do that you must hold the key of LOAD 5s to resume normal operation
16. DATALOGGER function: SETUP the time and sampling rate first, the default sampling rate is 1s. Hold the key of MEM/SETUP 5s, start the datalogger function, the MEM on the screen will be bicker. If the memory IC is full, the memory number will show ‘OL’. Press the key of MEM/SETUP 5s , stop the datalogger function, then the meter will resume normal operation. Then the datalogger number will return to 1, you could start your records again.
17. HOLD the key of MEM/SETUP and LOAD 5s to clear the 99 memory.

El AKTAKOM ATE-1509 es un medidor de luz que proporciona un nivel preciso de luz de la pantalla en función de velas de pie (FC) o LUX con una amplia gama. Basta con activar el interruptor de función y seleccionar "lux" seleccionar la escala y establecer el rango deseado. Luego retire el fotodetector de la fuente de luz.

Características

• Pantalla LCD con 4000 cuentas
• Rango automatico
• Barra gráfica analógica / segmentos: 41-segmentos
• Data Logger
• Peak Hold
• Modo relativo
• Retención de datos y Max.
• Auto apagado
• Indicador de bateria baja
• Seleccionable por el usuario FC/Lux
• Salida: USB
• Capacidad del Data logger 99 registros
• Precisión total: A (2856K) por la norma Iluminante CIE
