New functions for the compact broadband amplifier system from Rohde & Schwarz

04/12/2011

Rohde & Schwarz adds new functions to its R&S BBA100 broadband amplifier family to create a one-box solution. Integrated RF output switches and sample port switches allow the amplifiers to be used for many applications without the need for external switching matrices. Existing third-party amplifiers can also be integrated into the R&S BBA100 system. The modular design allows users to combine many functions into a compact EMC broadband amplifier system that is perfectly tailored to their requirements. The R&S BBA100 is ideal for EMC applications in test houses as well as in the electronics and automobile industry.

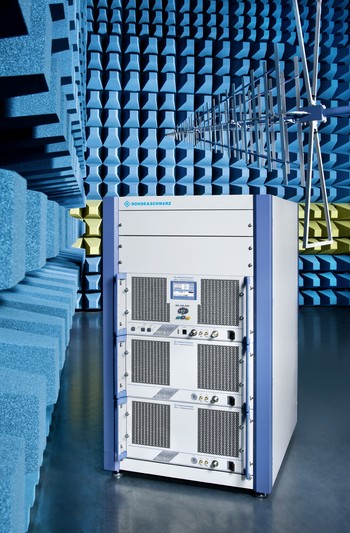

R&S BBA100

R&S BBA100

The new RF switches for the R&S BBA100enable users to put together even more compact amplifier systems – without switching matrices or separate system controllers. The R&S BBA100 performs the functions of these external instruments and now offers RF output switches and an RF sample switch in addition to an RF input switch. The new RF output switches can be used to apply the RF signal to various loads, such as clamps or antennas. The switches are available in 2:1 (two inputs, one output) and 1:2 (one input, two outputs) versions and can be cascaded as required. Switching takes place automatically when the RF path is selected. The new sample port switch was designed for systems with multiple frequency bands. When a frequency band is selected, the sample port switch automatically applies the right sample signal (forward and reflected power) to the sample ports. This makes it much easier to connect other T&M instruments such as power meters and spectrum analyzers since the user no longer has to disconnect and reconnect measuring equipment when the frequency band is changed.

It is now also possible to integrate up to two additional third-party amplifiers. The system controller of the R&S BBA100 ensures consistent operation throughout the entire system. This allows the user to easily extend an existing amplifier system step by step and still use existing amplifiers.

For remote control, the amplifier system now offers a USB port as well as GPIB, Ethernet and optical Ethernet. As a result, the user has a multitude of ways to integrate the R&S BBA100 into various network topologies.

The following new options for the R&S BBA100 are now available from Rohde & Schwarz: R&S BBA-B120 2:1 or 1:2 RF output switch, R&S BBA-B142 RF sample port switch, R&S BBA-B131 external amplifier integration and R&S BBA-K102 USB remote control.
