AM-6007 Milliohm Meter

AKTAKOM AM-6007 Milliohm Meter
Click an image to enlarge
Brand: AKTAKOM
RS-232 (Recommended Standard 232)

Milliohmmeter AM-6007 is designed to measure low values of resistance in circuits and their components, as well as contact resistances. The measurements are performed with 2 and 4-wire Kelvin clips.

Retail price : $599.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

Almost sold out, 2 left

Buy Add to cart

Milliohmmeter AM-6007 is designed to measure low values of resistance in circuits and their components, as well as contact resistances. The measurements are performed with 2 and 4-wire Kelvin clips.

• Measuring range: 1,000 milliohms ... 6.0000 ohms
• Error: 0.05%
• Test current: 100 mA, 1 mA, 10 mA, 100 mA, 1 A, 5 A
• Range selection: Automatic and manual
• Cable length measurement: m, ft
• Memory: 3000 measurements
• Screen: Wide LCD display, 6.5 4 bits off the backlight
• Power supply: 12V DC 2A, or acc.10 hours of battery life
• Interface: RS-232C / USB
• Dimensions: 257x155x57 mm
• Weight: 1.16 kg

InterfaceRS-232

• Measuring range: 1,000 milliohms ... 6.0000 ohms
• Error: 0.05%
• Test current: 100 mA, 1 mA, 10 mA, 100 mA, 1 A, 5 A
• Range selection: Automatic and manual
• Cable length measurement: m, ft
• Memory: 3000 measurements
• Screen: Wide LCD display, 6.5 4 bits off the backlight
• Power supply: 12V DC 2A, or acc.10 hours of battery life
• Interface: RS-232C / USB
• Dimensions: 257x155x57 mm
• Weight: 1.16 kg

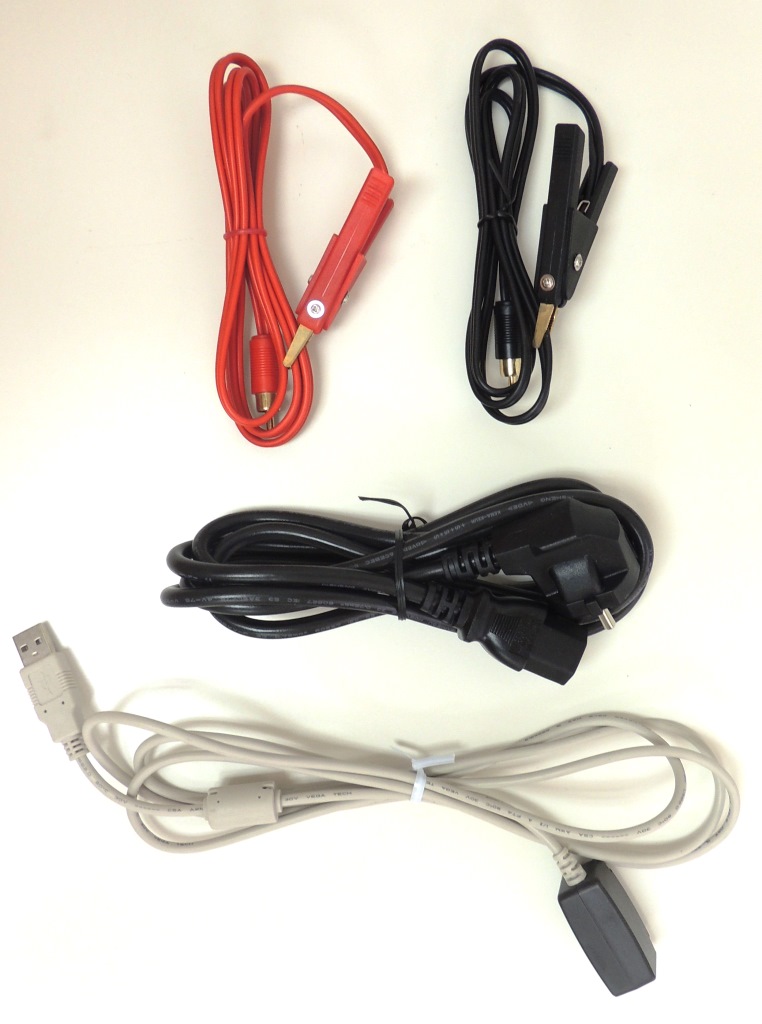

• Cable RS-232 / USB
• Battery
• Adapter
• 2 and 4-wire Kelvin clips
• Manual

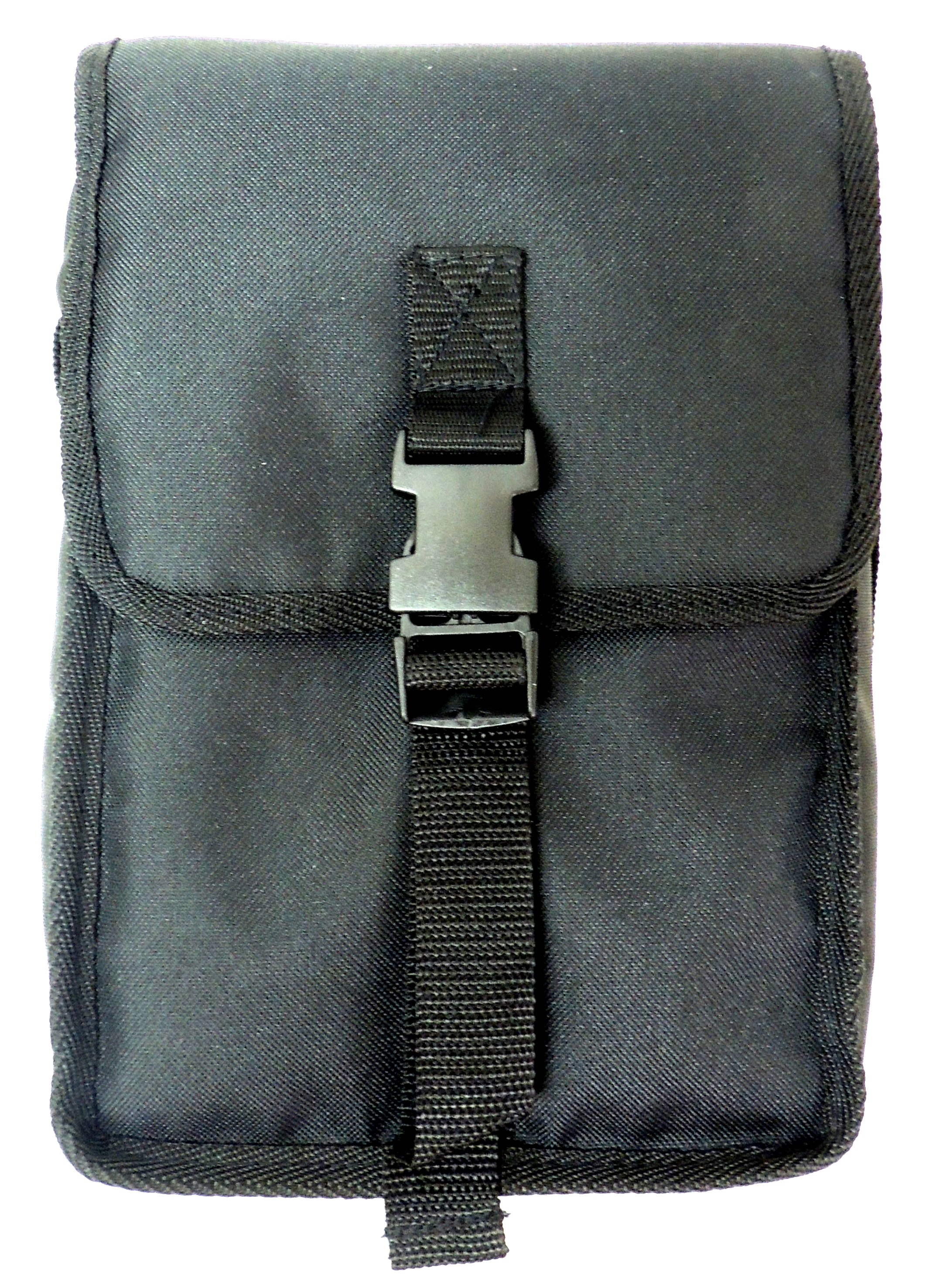

• Carrying bag
