AM-3055 Multimeter for SMD (Surface Mount Device)

AKTAKOM AM-3055 Multimeter for SMD (Surface Mount Device)
Click an image to enlarge
Brand:AKTAKOM
Warranty:1 year
User's Guide:Download

Fast precise measurements of small chip components. Specifically designed for use with SMD components on board circuits. Ideal for electronic maintenance, industry or homework.

Retail price :$49.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

In stock now

BuyAdd to cart

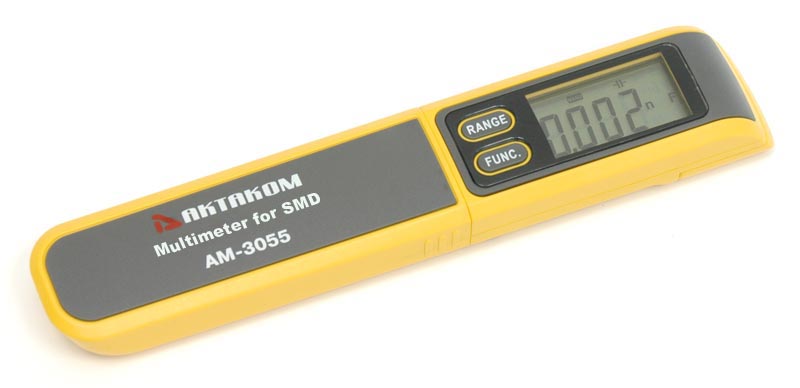

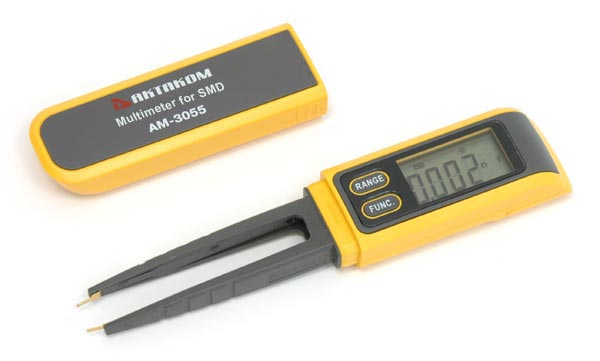

AM-3055 is an auto scan Pen R/C/D Meter in a single box with tweezers. Automatic recognize resistance, capacitance and diode. Measure high resistance and capacitance quickly.

Resistance60 MΩ
Capacitance60 mF
Diode test+
Continuity check+
Autorange+
Special featuresAutoScan mode
DisplayLCD, 5999 counts
Power supply3 V tablet battery
Dimensions7.1 x 1.4 x 0.9 in / 181 x 35 x 20 mm

Accuracy tables

Resistance

RangeResolutionAccuracyAbsolute errorValue-errorValue Learn an absolute error of your measurementValue+error
600 Ω 0.1 Ω (1.2%+2 digits) 7.3988 Ω
6 kΩ 1 Ω (1.2%+2 digits) 0.073988 kΩ kΩ
60 kΩ 10 Ω (1.2%+2 digits) 0.73988 kΩ kΩ
600 kΩ 100 Ω (1.2%+2 digits) 7.3988 kΩ kΩ
6 MΩ 1 kΩ (1.2%+2 digits) 0.073988 MΩ MΩ
60 MΩ 10 kΩ (2%+5 digits) 1.2498 MΩ MΩ

Capacitance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
6 nF 1 pF (5%+5 digits) 0.30495 nF nF
60 nF 10 pF (3%+3 digits) 1.8297 nF nF
600 nF 100 pF (3%+3 digits) 18.297 nF nF
6 F 1 nF (3%+3 digits) 0.18297 F F
60 F 10 nF (5%+3 digits) 3.0295 F F
600 F 100 nF (5%+3 digits) 30.295 F F
6 mF 1 F (5%+3 digits) 0.30295 mF mF
60 mF 10 F Unspecified Unspecified mF

RC-Meter, measurement of resistance up to 60 Ohms, capacitance up to 60mF, continuity test, auto turn-off, auto-scan mode.

Specifications

Function Range Resolution Accuracy
Resistance 300mΩ / 3kΩ / 30kΩ / 300kΩ / 3MΩ / 30MΩ / 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ 0,1Ω (1%+5)
Capacitance 3nF / 30nF / 300nF / 3μF / 30μF / 300μF / 3mF / 30mF / 6nF / 60nF / 600nF / 6μF / 60μF / 600μF / 6mF / 60mF 1pF (3%+5)
Auto-scan mode 0 ... 3MΩ / 400pF ... 300μF
(1%+5)
0 ... 6MΩ / 400pF ... 600μF
(3%+5)

  • Supply: 3V, battery
  • Size: 181x35x20mm / 7.1x1.4x0.9in
  • Weight: 65g / 2.3oz

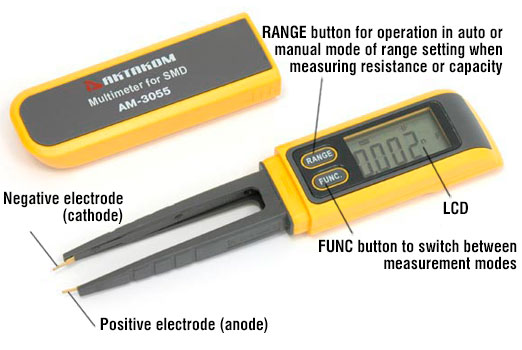

Controls of AKTAKOM AM-3055 Multimeter for SMD

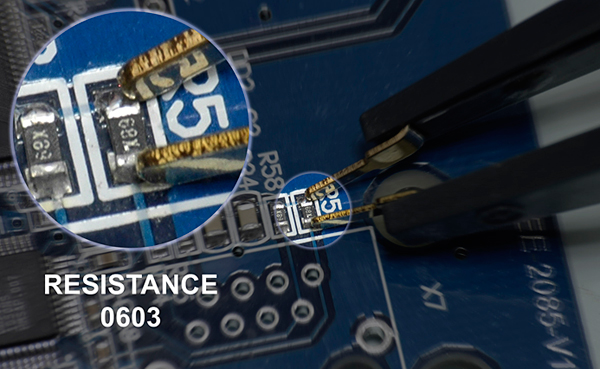

Resistance measurement

To avoid electrical shock or damages to the meter under test, disconnect circuit power and discharge all high-voltage capacitors before measuring resistance.

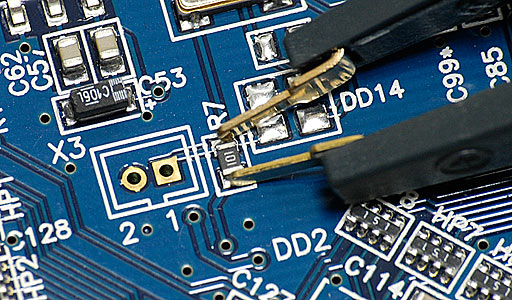

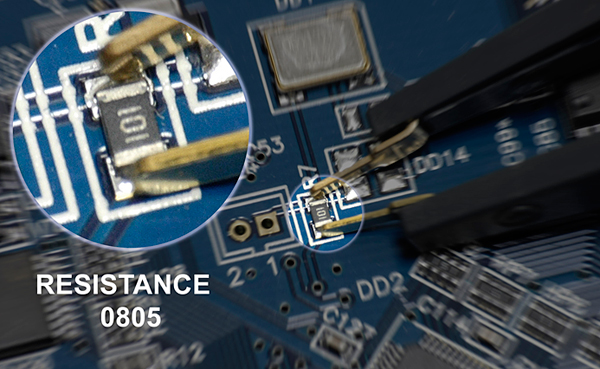

  • Press FUNC. key and select the function at resistance symbol mode.
  • Connect the test clip to the object being measured and the measured value will show on the display.

Resistance Measurement

NOTE:

  • When this mode the RANGE key is available.
  • When the input is not connected, i.e. at open circuit, the figure "OL" will be displayed for the overrange condition.

Capacitance measurement

To avoid electrical shock or damages to the meter under test, disconnect circuit power and discharge all high-voltage capacitors before measuring capacitance. Keep two pins of the capacitance in short before measuring.

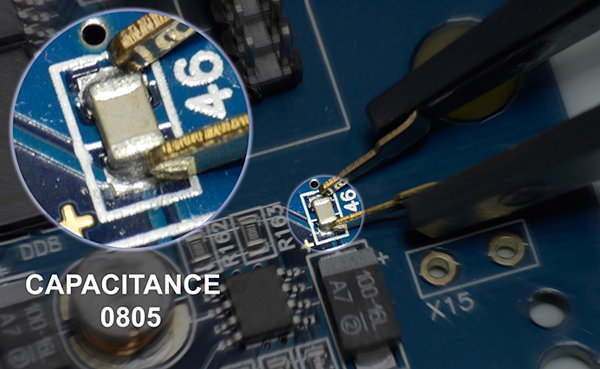

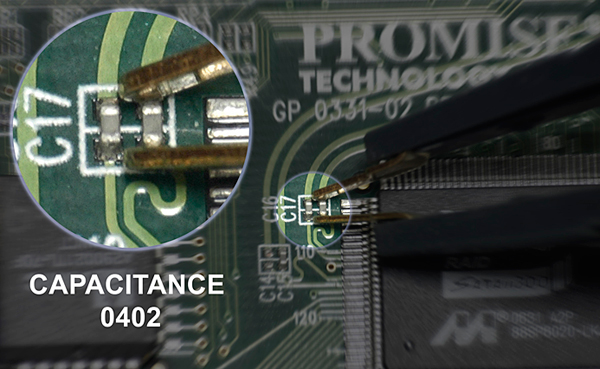

  • Press FUNC. Key and select the function at mode.
  • Connect the test clip to the capacitor being measured and read the displayed value.

Capacitance Measurement

NOTE:

  • When this mode the RANGE key is available.
  • Discharge the capacitor before measuring.

Diode measurement

To avoid electrical shock or damages to the meter under test, disconnect circuit power and discharge all high-voltage capacitors before testing diodes.

  • Press FUNC. Key and select the function at mode.
  • Connect the + pin to the anode, the - pin to the cathode of the diode under testing.
  • The meter will show the approx. forward voltage of the diode. If the lead connection is reversed, only figure "OL" displayed.

Continuity check

  • Press FUNC. Key and select the function at mode
  • Connect the test clip to the resistance. If continuity exists (i.e., resistance less than 30Ω) built – in buzzer will sound.

Frequently Asked Questions

  • How can I set auto measurement mode on Aktakom AM-3055 Multimeter for SMD (Surface Mount Device)?
  • Does Aktakom AM-3055 Multimeter for SMD (Surface Mount Device) have auto power off mode?

  • How can I set auto measurement mode on Aktakom AM-3055 Multimeter for SMD (Surface Mount Device)?

    Press and hold FUNC button for over 1 sec.: Aktakom AM-3055 multimeter for SMD will turn on and enter measurement auto setting mode. Now you may start the operation: measure resistance or capacity, take continuity or diode testing.
    Up

    Does Aktakom AM-3055 Multimeter for SMD (Surface Mount Device) have auto power off mode?

    Yes, it does. Auto power off mode that Aktakom AM-3055 Multimeter for SMD has helps to prolong the battery life. If no button was pressed within 10 minutes you will hear a beep signal and the device will automatically go off. In this case all of the current device settings will be saved by the time of switching off.
    Up
