ATE-6006 Laser Photo/Contact Tachometer

AKTAKOM ATE-6006 Laser Photo/Contact Tachometer
Click an image to enlarge
Brand:AKTAKOM
Warranty:1 year
User's Guide:Download

Retail price :$229.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

Sold out

Subscribe

AKTAKOM ATE-6006 combines photo tachometer and exactly with no contact tachometer.

Features:

  • World’s patent, Multi-functions, one instrument combine Photo Tach. (RPM) and exactly with no Contact Tach. (RPM, m/min., ft/min)
  • Laser light source, long detecting distance
  • Wide measuring range from 0.5 to 100,000RPM
  • 0.1RPM resolution for the measured value <1000RPM
  • High precision with 0.05% accuracy
  • The last value, max. value, min. value will be stored into the memory automatically and can be obtained by pressing Memory Call Button
  • High visible LCD display gives RPM reading exactly with no guessing or errors and saves battery energy
  • This tachometer used the exclusive one chip MICRO-COMPUTER LSI circuit & crystal time base, offer the high accurate measurement and fast sampling time
  • The use of durable, long lasting components, including a strong, light weight ABS plastic housing, assures almost maintenance free performance for many years
  • The housing cabinet has been carefully shaped to fit comfortable in either hand

Tachometer99999 RPM
Tachometer accuracy(0.05%+1 digit)
Tachometer resolution0.1 RPM
Data hold+
Min/Max measurement+
Special featuresPhoto type and contact type tachometer
DisplayLCD
Power supply4 x 1.5 V AA batteries
Dimensions8.5 x 2.6 x 1.5 in / 215 x 67 x 38 mm

Specifications:

Measurement and Range:

Photo tachometer: 0.5 to 19,999RPM
Contact tachometer: 0.5 to 19,999RPM

Surface speed:

  • m/min. — 0.05 to 1,999.9m/min.;
  • ft/min. — 0.2 to 6,560ft/min

Resolution:

RPM:

  • 0.1RPM (<1,000RPM)
  • 1RPM (1,000RPM)

m/min:

  • 0.01m/min (<100m/min)
  • 0.1m/min. (100m/min)

ft/min:

  • 0.1ft/min (<1,000ft/min)
  • 1ft/min (1,000ft/min)

Display: 5 digits, 10mm (0.4") LCD
Accuracy: ±(0.05%+1digit), RPM only
Detecting distance: 2in to 78.7in / 5cm to 200cm typical

The specification detecting distance (max. 78.7in/200cm) are tested under the 1800RPM & the size of the reflecting tape is 0.4x0.4in/1x1cm

Light Source: 1mW class 2 laser diode
Time base: Quartz crystal
Circuit: Exclusive one-chip of microcomputer LSI circuit
Operating temperature: 0-50°C (32-122°F)
Operating humidity: Less than 80% R.H.
Memory: Last/Max./Min. value.
Battery 4x1.5V AA (UM-3) batteries

Power Consumption:

  • Photo type: Approx. DC 21mA
  • Contact type: Approx. DC 7mA

Dimensions: 8.5x2.6x1.5in/215x67x38mm
Weight: 0.61lb/280g, including batteries

Accessories:

  • Carrying case
  • Reflecting tape marks
  • RPM adapter (CONE)
  • RPM adapter (FUNEL)
  • Surface speed test wheel
  • Operation manual

Photo tachometer measuring procedure

  1. Select the "Function Switch" (3-8, Fig. 1) to the "Photo RPM" position.
  2. Apply a reflecting mark to the object being measured. Depress the "Measuring Button" (3-6, Fig. 1) & align the "Laser light beam" (3-2, Fig. 1) with the applied target. Verify that the "Monitor Indicator" (3-4, Fig. 1) lights when the target pass through the light beam. Release the "Measuring Button" when the reading stabilizes (about 2 seconds).

    Note: If the measured RPM values is very low (for example less than 50RPM), recommend to attach more "Reflecting Marks" average to the object. It will get the real RPM with high resolution, precisely & fast sampling time when divided the reading values by the no. of the "Marks".

CAUTION: LASER RADIATION – DO NOT STARE INTO LASER BEAM
Class II laser products.

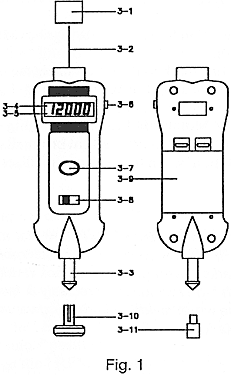

ATE-6006








3-1 Reflecting Mark
3-2 Laser Light Beam
3-3 RPM Adapter
3-4 Monitor indicator
3-5 Display
3-6 Measuring Button
3-7 Memory Call Button
3-8 Function Switch
3-9 Battery Compartment
3-10 Surface Speed Test Wheel
3-11 Funnel type rubber for RPM adapter

Contact tachometer measuring procedure

RPM measurement

  1. Select the "Function Switch" (3-8, Fig. 1) to the "Contact RPM" position.
  2. Depress the "Measuring Button" (3-6, Fig. 1) & lightly pressing the "RPM Adapter" (3-3, Fig. 1) against the center hole on the hole of the measured rotating axis. Release the "Measuring Button" when the reading stabilizes (approx. 2 sec.).

    Note: Making the contact RPM measurement due to different kind measured rotating axis, it may changed the rubber tor RPM adapter from "CONE" type to "FUNNEL" type (3-11, Fig. 1).

Surface Speed Measurement

  1. Select the "Function Switch" (3-8, Fig. 1) to the "m/min." or "ft/min." position.
  2. Change the "RPM Adapter" instead of the "Surface Speed Test Wheel" (3-11, Fig. 1)
  3. Depress the "Measuring Button" (3-6, Fig. 1) & simply attaching the surface speed test wheel to the detector. Release the "Measuring Button" when the reading stabilizes (approx. 2 sec.).

El tacometro AKTAKOM ATE-6006 combina foto tacmetro y tacmetro de contacto.

Caractersticas:

  • Patente Mundial, de mltiples funciones, un instrumento combinar Fototacometro. (RPM) y exactamente sin tacmetro de contacto. (RPM, m / min., Ft / min)
  • Fuente de luz laser, de deteccin alarga distancia
  • Amplio rango de medicin de 0,5 a 100.000 RPM
  • Resolucin 0,1 rpm para el valor medido <1000 rpm
  • Alta precisin con un 0,05% de precisin
  • El ltimo valor, mx y min. se almacena en la memoria de forma automtica y se puede obtener pulsando el botn de llamada de memoria
  • Pantalla LCD de alta visible ofrece lecturas de RPM exactas sin estimaciones o errores y se ahorra energa de la batera
  • Este tacmetro utilizaun exclusivo chip demicrocomputadora con circuito LSI ycristal tiempo base que resulta en una medicin de alta precisiny tiempo de muestreo rpido
  • El uso de componentes duraderos, incluyendo una carcasafuerte yligerade plstico ABS, asegura un rendimiento sin casi mantenimiento durante muchos aos
  • El armario de la vivienda ha sido cuidadosamente diseado para ajustarse a gusto en cualquiera de las manos
