ATE-2001 Dual Thermometer

AKTAKOM ATE-2001 Dual Thermometer
Click an image to enlarge
Brand:AKTAKOM
Warranty:1 year
User's Guide:Download

Retail price :$99.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

In stock now

BuyAdd to cart

AKTAKOM ATE-2001 is a multi functions thermometer withdual channel temperature input anddifferential temperature measurement.

Features:

  • Microprocessor circuit assures maximum possible accuracy, provides special functions and features
  • Super large LCD display, easy readout
  • Dual function meter's display
  • Heavy duty & compact housing case
  • Records Maximum and Minimum readings with recall
  • Data hold
  • Auto shut off saves battery life
  • Low battery indicator
  • Operates from OO6P DC 9V battery.
  • Multi functions, dual channel temp. input, differential temp. measurement, C/F, 0.1/1 degree, data hold
  • Wide measuring range from -50C to 1230C
  • Meet any standard type K (NiCr-NiAl) probe
  • Fitted with standard type K thermocouple input measuring socket
  • Built-in temperature linearity and precision cold junction compensation circuit, high accuracy

Temperature-50...1230 C / -58...1999 F
Temperature resolution0.1 C / 0.1 F
Temperature sensor typeType K thermocouple
Data hold+
Min/Max measurement+
Special featuresDifferential temperature measurement
DisplayLCD
Power supply9 V battery
Dimensions7.1 x 2.8 x 1.3 in / 180 x 72 x 32 mm

Specifications:

General specifications:

Circuit: Custom one-chip of micro-processor LSI circuit

Display:

  • 13mm (0.5") Super large LCD display
  • Dual function meter's display

Sensor Type: Thermocouple K (NiCr-NiAl)

Measurement: Two channel temp. input (T1, T2), differential temperature measurement (T1-T2), °C/°F, 0.11 data hold

Range:

  • -50°C to 1230°C
  • -50°F to 1999°F

Polarity: Automatic switching, "-" indicates negative polarity
Input Impedance: 10Mohm
Over input indication: Indication of "- - - -"
Memory Recall: Records Maximum and minimum readings with recall
Power Off: Auto shut off saves battery life or manual off by push button
Sampling Time: Approx. 0.8s to 1.0s
Operating Temp.: 0°C to 50°C (32°F to 122°F)
Operating Humidity: Less than 80%R.H.
Power Supply: 006P DC 9V battery (Heavy Duty Type)
Power Current: Approx. DC 6.2mA

Electrical specifications (23±5°C):

Temperature range Resolution Accuracy
°C -200°C to 1370°C 0.1°C -199.9°C to 199.9°C ±(1%+1°C)
1°C -200°C to 1370°C
°F -328°F to 2498°F 0.1°F -199.9°F to 199.9°F ±(1%+2°F)
1°F -328°F to 2498°F
°C T1-T2 ±(1%+2°C)
°F T1-T2 ±(1%+3°F)

The above accuracy specification applies only to the instrument itself and allowance must be made for limits of error permitted in thermocouple

Dimensions: 7.1x2.8x1.3in/180x72x32mm
Weight: 0.61lb/275g

Standard accessories:

  • Soft carrying case
  • Hard carrying case

Optional accessories:

  • Instruction manual
  • Carrying case
  • Temperature probe

Tempetature Measurement

  1. Push the "Power ON Button" (3-2, Fig. 1) to let the instrument power "ON".
  2. Determine temperature unit to °C or °F by push the "°C/°F push button" (3-4, Fig. 1). Then the display will show the temperature unit of "°C" or "°F".
  3. Determine the display resolution to 0.1° or 1° by push "1°/0.1° Button" (3-9, Fig. 1)
  4. One probe measurement:
    Insert one temp, probe plug into the socket T1 (3-11), then push the "Function Button" (3-8, Fig. 1) until the display show the marker "T1" Display will show the temperature reading that measured from the probe.
  5. Two probe (dual channel) & differential measurement:
    • Insert first temp, probe plug into the "T1 Socket" (3-11, Fig. 1).
    • Insert second temp, probe plug into the "T2 Socket" (3-12, Fig. 1).
    • The main display (upper display) will show the temperature reading of first probe (T1) & the lower display will show the temperature reading of second probe (T2), if push the "Function Button" (3-8, Fig. 1) until the display show the marker "T1".
    • The main display (upper display) will show the temperature reading of second probe (T2) & the lower display will show the temperature reading of first probe (T1), if push the "Function Button" (3-8, Fig. 1) until the display show the marker "T2".
    • The main display (upper display) will show the differential temperature reading of the first & second probe (T1-T2) & the lower display will show the temperature reading of first probe (T1), if push the "Function Button" (3-8, Fig. 1) until the display show the marker "T1-T2".

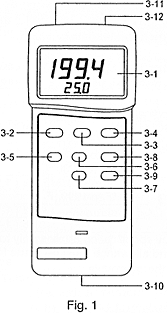

3-1 Display
3-2 Power On button
3-3 Data Hold Button
3-4 °C/°F button
3-5 Power Off button
3-6 Memory "Record" Button
3-7 Memory "Call" Button
3-8 Function Button (T1, T2, T1-T2)
3-9 1°/0.1° Button
3-10 Battery Compartment /Cover
3-11 T1 Input Socket
3-12 T2 Input Socket

El termmetro de AKTAKOM ATE-2001 es de mltiples funciones con entrada de doble canal de temperatura y medicin de la temperatura diferencial.

Caractersticas:

  • El circuito con microprocesador asegura la mxima precisin posible y proporciona funciones y caractersticas especiales.
  • Pantalla grande LCD de fcil lectura.
  • Monitor con doble mediciones.
  • Carcasa compacta y muy resistente.
  • Registro de lectura mxima y mnima con memorizado
  • Retencin de datos
  • Apagado automtico
  • Indicador de batera baja
  • Funciona con batera de 9V DC OO6P.
  • Funciones Multiples, doble canal de entrada de temperatura, temperatura diferencial, medicin en C / F, 0,1 / 1 grados, retencin de datos
  • Amplio rango de medicin de -50 C a 1230 C
  • Cumple con cualquier estndar de sonda tipo K (NiCr-NiAl)
  • Equipado con el tipo estndar de entrada para termopar K
  • Construido en la linealidad y temperatura fra precisin circuito de compensacin de unin, de alta precisin
