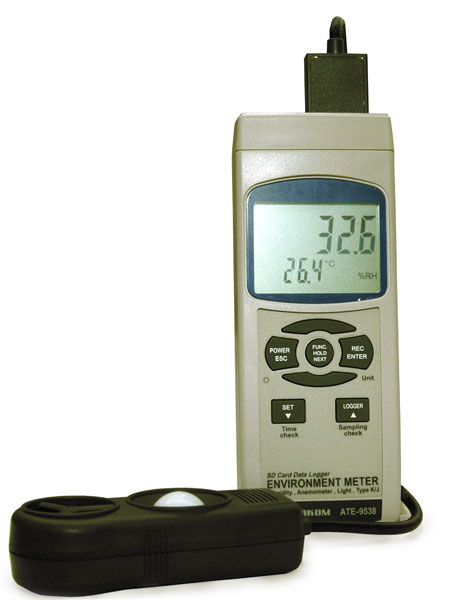

AKTAKOM ATE-9538 is an environment instrument, multi-functional, all in one: type K/J thermometer, humidity/temp. meter, anemometer, light meter, sound level meter (optional adapter).

Features:

  • Humidity measurement shows both %RH and Temp.
  • Anemometer can default the display unit to m/s, FPM, km/h, mph, knot
  • Light meter can default the display unit tolux or Ft-cd
  • Thermocouple Thermometer can default to accept type K or type J Temp. probe
  • Temp. display unit defaults to C or F
  • Meter can default auto power off or manual power off
  • Real time SD memory card Datalogger, Built-in Clock and Calendar, real time data recorder, sampling time set from 1 second to 3600 seconds
  • Manual datalogger is available (set the sampling time to 0), during the use of manual datalogger function it can set the different position (location) No. (position 1 to position 99)
  • Innovation and easy operation, computer doesn’t need any extra software, after the datalogger use just take the SD card away from the meter and insert the SD card into the computer, it can download all of the measured values with the time information (year/month/date/hour/minute/second) to the Excel directly; then users can make the further data or graphic analysis by themselves
  • SD card capacity: 1 GB to 16 GB
  • LCD with green light backlight, easy reading
  • Can default auto power off or manual power off
  • Data hold, record max. and min. reading
  • Power by UM3/AA (1.5V) x 6 batteries or DC 9V adapter
  • Interface: RS-232, USB via interface converter
  • Available for the HVAC applications

Channels1
Temperature-50...1300 C / -58...2372 F
Temperature resolution0.1 C / 0.1 F
Temperature sensor typeType K thermocouple, Type J thermocouple
Light20000 Lux
Light accuracy(5%rdg8dgt)
Light resolution1 Lux
Relative humidity0...95%
Humidity accuracy3% RH
Humidity resolution0.1% RH
Air velocity0.4...25.0 m/s
Air velocity accuracy(2%+0.2)
Air velocity resolution0.1 m/s
Air velocity sensor typeLow-friction ball vane
Air temperature0...50 C / 32...122 F
Air temperature accuracy0.8 C / 1.5 F
Air temperature resolution0.1 C / 0.1 F
Data hold+
Min/Max measurement+
Special featuresSD memory card
InterfaceUSB (through interface converter), RS-232
DisplayLCD
Power supply6 x 1.5 V battery, AC/DC power adapter
Dimensions5.3 x 2.4 x 1.3 in / 135 x 60 x 33 mm

Specifications:

General Specifications:

Circuit: Custom one-chip of microprocessor LSI circuit

Display:

  • LCD size: 2.1x1.5in/52x38mm
  • LCD with green backlight (ON/OFF)

Measurement:

  • Type K/J thermometer
  • Humidity/Temp. meter
  • Anemometer with Temp.
  • Light meter
  • Sound level meter (optional adapter)

Datalogger / Sampling Time / Setting range:

Auto:
1 second to 3600 seconds
For anemometer measurement the sampling time setting value should be ≥2s
Sampling time can be set to 1 second but memory data may loss

Manual:
Pushing the data logger button once will save data one time
Set the sampling time to 0s
Manual mode can also select the 1 to 99 position (Location) no.

Memory Card: SD memory card. 1 GB to 16 GB

Advanced setting:

  • Set clock time (Year/Month/Date, Hour/Minute/Second)
  • Decimal point of SD card setting
  • Auto power OFF management
  • Set beep Sound ON/OFF
  • Set thermometer type to Type K or Type J
  • Set temperature unit to °C or °F
  • Set sampling time
  • SD memory card format

Temperature Compensation: Automatic temp. compensation for the type K/J/T/E/R/S thermometer
Data Hold: Freeze the display reading
Memory Recall: Maximum & Minimum value
Sampling Time of Display: Approx. 1 second

Data Output:

RS-232 serial interface capable of PC connection via USB with Aktakom ACE-1025 interface converter and wide data processing capabilities with ADLM-W software or ASDM and ASDL applications Windows and Android based respectively.

Operating Temperature: 0 to 50°C
Operating Humidity: Less than 85%R.H.

Power Supply:

  • Alkaline or heavy duty DC 1.5V battery (UM3, AA) x 6 PCs, or equivalent
  • ADC 9V adapter input. (AC/DC power adapter is optional)

Power Current:

  • Normal operation (w/o SD card save data and LCD Backlight is OFF): Approx. DC 15mA
  • When SD card save the data and LCD Backlight is OFF: Approx. DC 36mA

Electrical Specifications (23±5°C):

Anemometer:

A. Air velocity

Measurement Range Resolutiontion Accuracy
m/s 0.4-25.0 0.1 ±(2%+0.2)
km/h 1.4-90.0 0.1 ±(2%+0.8)
mph 0.9-55.9 0.1±(2%+0.4)
knots 0.8-48.6 0.1 ±(2%+0.4)
FPM 80-4930 1 ±(2%+40)

Note:

  • m/s – meters per second
  • km/h – kilometers per hour
  • FPM – feet/per minute
  • knot – nautical miles per hour
  • mph – miles per hour (international knot)

B. Temperature

Measuring Range: 0°C to 50°C / 32°F to 122°F
Resolution: 0.1°C/0.1°F
Accuracy: ±0.8°C/1.5°F

Humidity/Temp. Meter:

A. Humidity

Measuring Range: 0% to 95%R.H.
Resolution: 0.1%R.H.
Accuracy: ≥70%RH: ±(3%reading+1%RH); < 70%RH: ±3%RH.

B. Temperature

Measuring Range: 0°C to 50°C / 32°F to 122°F
Resolution: 0.1°C/0.1°F
Accuracy: ±0.8°C/1.5°F

Light meter:

Measuring Range: lux: 0 to 20,000lux; Ft-cd: 0 to 1,860Ft-cd
Resolution: lux: 1lux; Ft-cd: 0.1Ft-cd
Accuracy: ±(5%rdg±8dgt)
Note: Ft-cd: foot-candle

Type K/J Thermometer:

Sensor Type Resolution Range Accuracy
Type K 0.1°C -50.0 to 1300.0°C ±(0.4%+0.8°C)
-50.1 to -100.0°C ±(0.4%+1°C)
0.1°F -58.0 to 2372.0°F ±(0.4%+1.5°F)
-58.1 to -148.0°F ±(0.4%+1.8°F)
Type J 0.1°C -50.0 to 1200.0°C ±(0.4%+0.8°C)
-50.1 to -100.0°C ±(0.4%+1°C)
0.1°F -58.0 to 2192.0°F ±(0.4%+1.5°F)
-58.1 to -148.0°F ±(0.4%+1.8°F)

Accuracy value is specified for the meter only
Temp. probe is an optional accessory
Above specification tests under the environment RF Field
Strength less than 3 V/M and frequency less than 30MHz only

Weight: 1.13lb/515g

Dimensions:

  • Meter: 5.3x2.4x1.3in/135x60x33mm
  • Probe: 4.2x1.8x1.2in/105x46x29mm

General accessories:

  • Instruction manual

  • Multi-function Probe (Anemometer/Light/Humidity)

  • Hard carrying case

Optional Accessories:

  • SD Card (1 G)
  • SD Card (2 G)
  • Type K thermocouple probe
  • Sound adapter
  • AC to DC 9V adapter
  • USB cable, USB-01
  • RS232 cable, UPCB-02
  • Data acquisition software

Function selection

  1. Turn on the meter by pressing the "Power Button" (3-2, Fig.1) momentarily.
    * Pressing the "Power Button" (3-2, Fig.1) continuously and >2 seconds again will turn off the meter.
  2. The meter can select 4 kind function as:
    a. Air velocity/Temp.
    b. Humidity/Temp. measurement
    c. Type K/J Thermometer
    d. Light meter

Pressing the "Function Button" (3-3, Fig.1) continuously (not release the button), the Display will show the following text in sequence:
An – Air velocity/Temp. measurement
rH – Humidity/Temp. measurement
tP – Type K/J Thermometer measurement
LIgHt – Light meter

Until the Display show the desired mode (Function), just release the "Function Button" (3-3, Fig.1), the meter will execute this function with default.

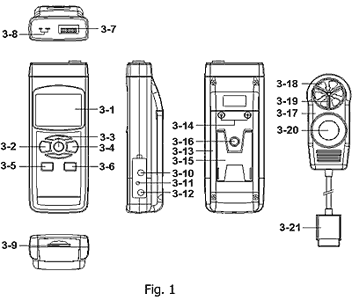

ATE-9538 3-1 Display
3-2 Power Button (ESC, Backlight Button)
3-3 Hold Button (Function Button, Next Button)
3-4 REC Button (Enter Button, Unit Button)
3-5 SET Button (▼ Button, Time check Button)
3-6 Logger Button (▲ Button, Sampling time check Button)
3-7 Probe input socket

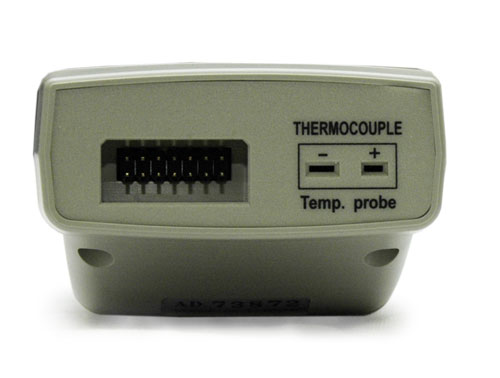

3-8 Type K/J thermometer socket

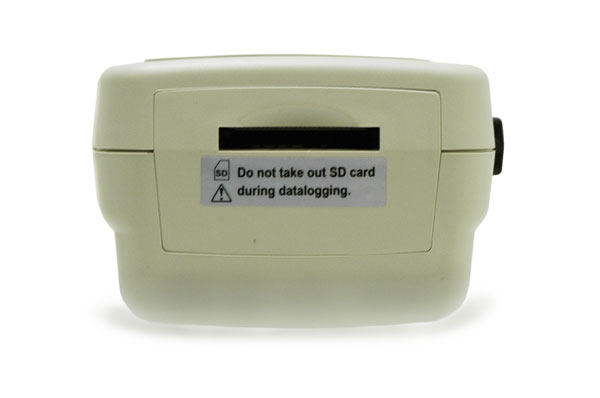

3-9 SD card socket

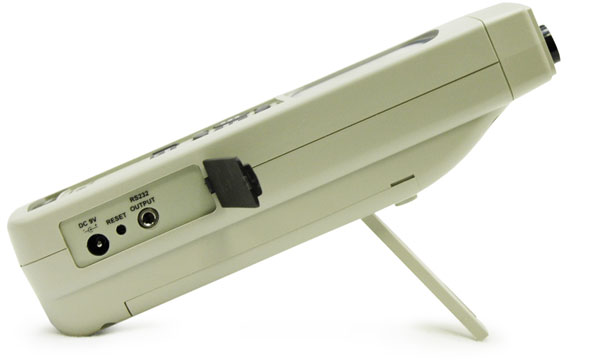

3-10 RS-232 Output Terminal
3-11 Reset Button
3-12 DC 9V Power Adapter Input Socket
3-13 Battery Compartment/Cover
3-14 Battery Cover Screws
3-15 Stand
3-16 Tripod Fix Nut

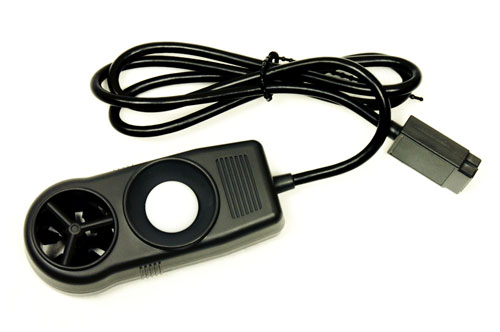

3-17 Probe head (Anemometer, Humidity/Temp., Light)
3-18 Anemometer vane
3-19 Humidity/Temp. sensor
3-20 Light sensor
3-21 Probe plug ( Anemometer, Humidity/Temp., Light)

Air velocity/Temp. measurement

  1. Function select to "Air velocity/Temp." measurement
  2. Plug the "Probe Plug" (3-21, Fig.1) into the "Probe Input Socket" (3-7, Fig.1). Power on the meter by pressing the "Power Button" (3-2, Fig. 1) once,
  3. Hold the Probe by hand and let the "Anemometer vane" (3-18, Fig.1) face against the measuring air flow source, then the Display (3-1, Fig.1) will show air velocity directly. At the same time, the lower Display will show the air temperature value.

Change the Air velocity unit:
Air velocity unit are:
m/s, FPM (Ft/min), km/h, knots, mph (Mile/h)
If intend to change the Air velocity unit, press the "Unit Button" (3-4) continuously, the unit will change from m/s to km/h, mph, knot, FPM in sequence, until the desired unit is present on the Display release the "Unit Button", the select unit will save into the memory with default.

Humidity and Temperature measurement

  1. Function select to "Humidity/Temp." measurement. Plug the "Probe Plug" (3-21, Fig.1) into the "Probe Input Socket" (3-7, Fig.1).
  2. Power on the meter by pressing the "Power Button" (3-2, Fig.1), the LCD shows the unit "%RH" & "°C or F" at the same time and measured value will show on the display (upper display is Humidity value, the lower display is the temperature value).

Type K/J thermometer

  1. Function select to "Type K/J thermometer"
  2. Plug the Thermocouple Temp. Probe (Type K Temp. probe or Type J Temp. probe, optional) into "Type K/J Probe Input Socket" (3-8, Fig. 1)
    The Display will show the measuring value that sensing from the Temp. probe.
  3. If the Display show the indicator "K", it is ready for Type K thermometer. If the Display show the indicator "J", it is ready for Type J thermometer.

Light measurement

  1. Function select to "Light meter" measurement
  2. Plug the "Probe Plug" (3-21, Fig.1) into the "Probe Input Socket" (3-7, Fig.1). Power on the meter by pressing the "Power Button" (3-2, Fig.1) once
  3. Hold the Probe by hand and let the "Light sensor" (3-20, Fig.1) face against the measurement light source, the Display (3-1, Fig.1) will show the light measurement value.

Unit change for light measurement:
If intend to change the Light unit (lux, Ft-cd), press the "Unit Button" (3-4) continuously, the unit will change from LUX, Ft-cd in sequence, until the desired unit is present on the Display release the "Unit Button", the select unit will save into the memory with default.

Zero adjustment:
During the Light measurement, blank the Light Sensor (3-20, Fig.1) completely, if the Display is not show zero value, press the "Logger Button" (3-6, Fig.1) >3 seconds, Display will show the zero value.

Sound level measurement

  1. Power off the meter
  2. Prepare the optional "Sound adapter". Plug the "Sound adapter plug" into the "Probe Input Socket" (3-7, Fig.1).Power on the "Sound adapter", the detail operation procedures, please refer to its operation manual.
  3. Power on the meter by pressing the "Power Button" (3-2, Fig.1). The Display will show the text "Sound" once a while then return to normal screen (Display unit is dB). Now the whole system (meter + sound adapter) is ready for the sound level measurement. The display will show the measured sound value with unit "dB".

Frequently Asked Questions

  • Can I using Aktakom Data Logger Monitor (ADLM-W) software load all of the information from the memory card to plot a graph?

  • Can I using Aktakom Data Logger Monitor (ADLM-W) software load all of the information from the memory card to plot a graph?

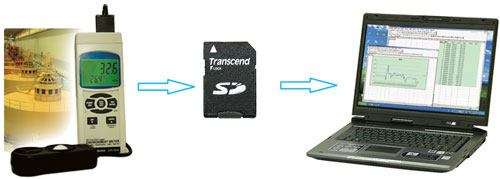

    The environment meter records data to the memory card in *.xls format. All of the data can be copied to the PC after the measurement process.
