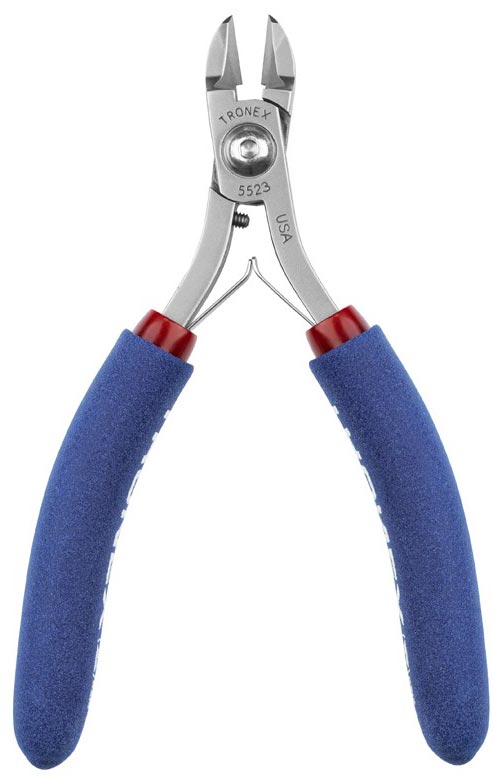

Tronex Large Oval Standard Handle Cutter 5523 is a general purpose cutting tool. Often used for cutting cables and in wire harness work. Relieved head allows for access underneath objects. Large oval head cutters have more head material for greater cutting capacity.

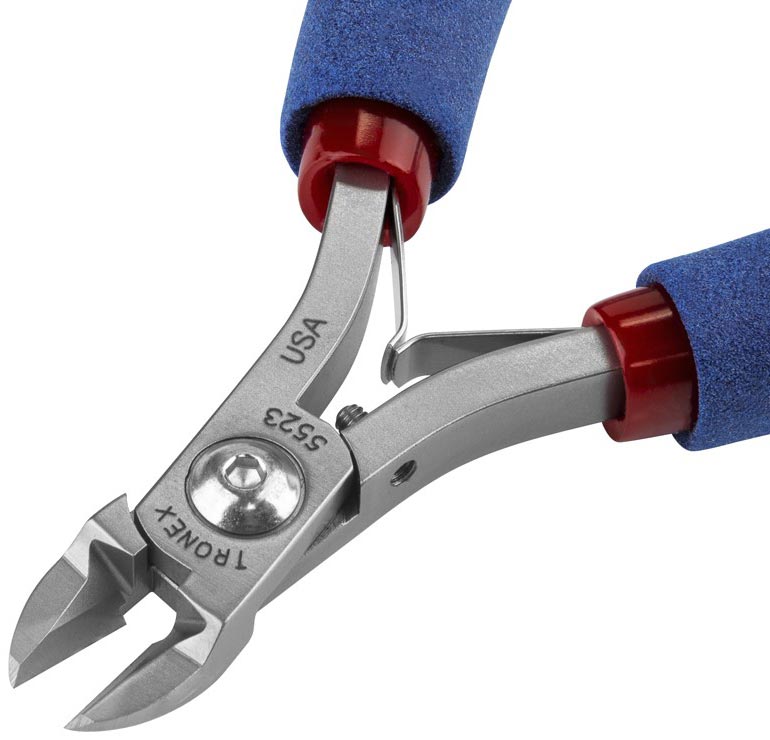

Razor Flush® cutting edges feature no bevel on the cutters. This results in exceptionally sharp edges which produce cuts leaving virtually no raised surface or “pinch” on the end of the material being cut. The cutter actually operates like two razor blades coming together. Razor Flush® edge cutters are typically used when the highest level of precision is required working with small and/or very fine components. Although more frequent sharpening is required with Razor Flush® cutters, each cutter has a fine set screw stop built into the jaw of the cutter to protect the edges. The Razor Flush® edge finish on Tronex cutters is a proprietary process and the result is unmatched by any other precision cutting tool.
Specifications:
- Cutting Capacity (soft copper wire): 0.004" - 0.047" / 0.1mm - 1.2mm
- Cutting Edge: 0.53’’ / 13.4 mm (Razor Flush)
- Antistatic non-slip handle, length: 4,53’’ / 115mm

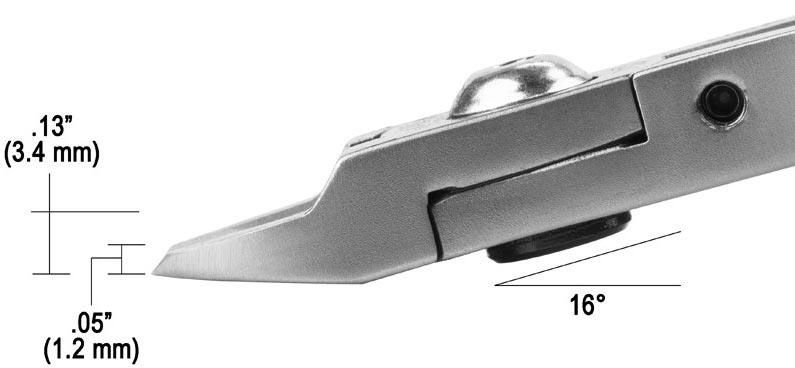

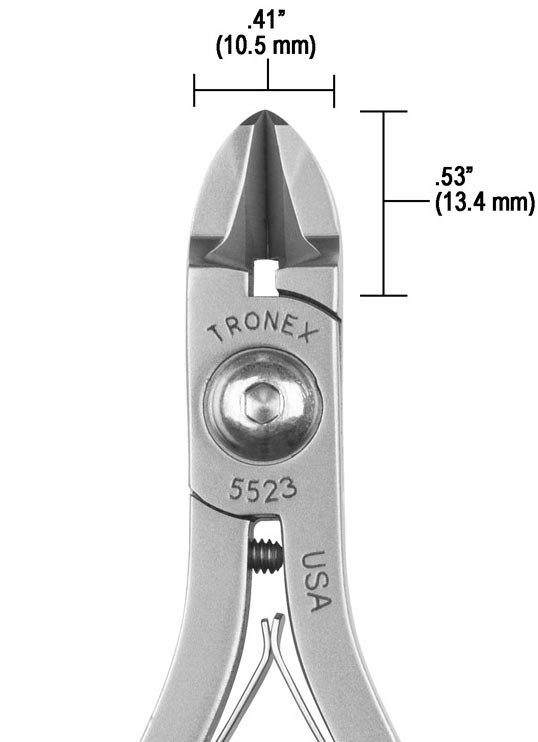

- Head Shape: large oval relieved head 0.53’’ x 0.41’’ / 13.4mm x 10.5mm
- Material: Carbon Steel
- Installed stopper screw to prevent the cutting edges from automatically blunting after cutting
Application of Tronex 5523
All Tronex precision hand cutters are carefully crafted to provide an edge finish to yield top cutting performance. As electronics components have gotten progressively smaller over time, precise cutting has become more crucial. Edge finishes are best examined by looking at the back or bottom side of a cutter.
Tronex 5523 is general-purpose cutters and it is particularly suitable for cutting cables and wire harnesses (0.004" - 0.047" / 0.1mm - 1.2mm) due to large oval head. With the additional material in the head, oval head cutters are strong and durable.
Frequently Asked Questions
What is a completely flat cut?
What are the advantages of oval head cutters?
What is a completely flat cut?
|
The cutting edges are polished like a razor blade, allowing a smooth cut without leaving a nick or a wedge. In addition, the wiring is minimally damaged during cutting.
Up
|
What are the advantages of oval head cutters?
|
Oval head cutters are excellent general-purpose cutters. With the additional material in the head, Oval head cutters are strong and durable. They are the best option when restricted access is not an issue.
Up
|
