ASE-3101 Multifunction Digital Soldering & Desoldering station

Absolute error of my measurement

"Absolute measurement error" service allows you to estimate the measurement accuracy considering uncertainty (error) in the absolute value. It’s important if you take measurements at the range edge when the error value contributes to the value displayed on the device screen.

To get the value range it’d be enough to enter the estimate of the value under measurement into Value input field and to see the range of possible values taking all of the standardized errors into consideration.

Note: a point is used as a separator of the integer and fractional part.

Software delivery

1. Soldering iron holder

2. Desoldering iron holder

3. Desoldering gun

4. Soldering iron

5. Sliding tray for sponge x 2

6. User manual

7. Power cable

AKTAKOM ASE-3101 Multifunction Digital Soldering & Desoldering station
Click an image to enlarge
Brand: AKTAKOM
Warranty: 14 months
User's Guide: Download

Multifunction dual-channel soldering and desoldering station with digital temperature indication, equipped with 60W/24V mounting soldering iron of 392…932°F / 200...500°C temperature range; 60W/24V disassembling vacuum soldering iron of 572…842°F / 300...450°C temperature range; replaceable tips; high-quality durable easy replaceable ceramic heating element; C° to F° switchable.

Retail price : $299.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

In stock now

Buy Add to cart

Since soldering and desoldering processes when repairing electronics are usually made sequentially by one specialist it’s obviously convenient to use a universal system combining the features necessary for both operation types.

AKTAKOM ASE-3101 professional dual-channel multifunction station unites in one block a soldering station and desoldering equipment with digital temperature indication. This allows ASE-3101 to occupy a minimal space and organize a high performance work area.

AKTAKOM ASE-3101 soldering and desoldering station is equipped with high-quality heating element that can be easily replaced. This heating element is covered with alumoceramic layer and inserted into ceramic housing. Such a reliable structure fully isolates the heating element from the environment effect and therefore protects the heating element from corrosion providing its high durability accordingly.

Multilayer (copper, steel and stannum) cover of the soldering iron tip operating part has excellent thermal conduction and provides optimal high effective heat transmission.

Features:

  • Two channels for assembling and disassembling items during repair
  • The ergonomic design of the soldering iron handle provides convenient work
  • Digital temperature indication
  • The temperature control scheme provides high precision with accuracy not more than
    2°F/-16.7°C from the set temperature
  • Simplicity of calibration: controllers are located on the station front panel
  • The power saving scheme: if the disassembling soldering iron is not used for more than 10 minutes the temperature automatically decreases that prolongs service life of the heater and the tips
  • The device of power supplies of soldering irons is isolated from an alternating current network
  • For the heating element supply the voltage of 24V is used
  • High-quality and durable ceramic heating element produced in Japan provides quick heating

Please note: ASE-1101 Soldering station is available in both (C°) and (F°) temperature settings. It is automatically set in (F°), however if you’d like it to be in (C°) please notify us in comments then making a purchase, or by contacting our sales department sales@tmatlantic.com

Specifications:

Station:

AC Input 110-120V, 60 Hz
Dimensions: 9.4×8.7×6.7in/239×221×170mm
Weight: 14.3lb/6.5kg

Soldering iron:

Power Consumption 24V/60W
Heating element Ceramic heater
Desoldering iron Temperature Range: 570°F-840°F/299°C-449°C
Soldering iron Temperature Range: 390°F-930°F/199°C-499°C
Ceramic heater insulation rated over 100MΩ at 750°F/399°C

1. Soldering iron holder

2. Desoldering iron holder

3. Desoldering gun

4. Soldering iron

5. Sliding tray for sponge x 2

6. User manual

7. Power cable

Prestarting procedure ASE-3101

Soldering iron connection

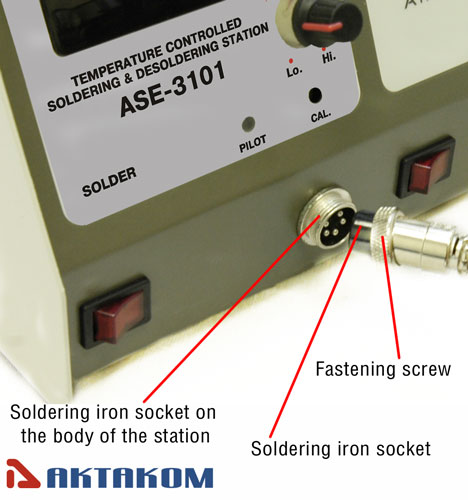

  1. Connect the soldering iron to the socket on the body of the station. There to connect the slots of the soldering iron socket with the socket pins on the body of the station.
  2. After that firmly tighten the fastening screw on the soldering iron socket by turning it clockwise.

Desoldering iron connection

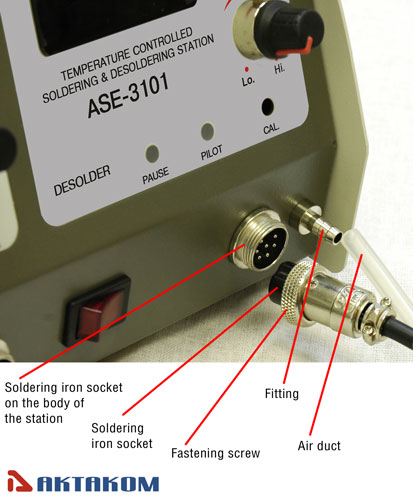

  1. Connect the desoldering iron to the socket on the body of the station. There to connect the slots of the desoldering iron socket with the socket pins on the body of the station.
  2. After that firmly tighten the fastening screw on the desoldering iron socket by turning it clockwise.
  3. Stretch the air duct of the desoldering iron on the air duct fitting of the desoldering channel compressor.

Soldering Channel

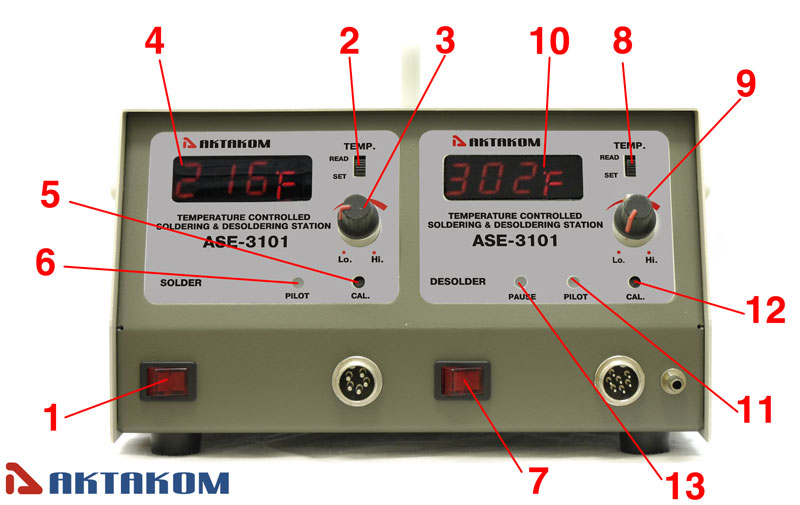

  1. Switch on a soldering channel (1).
  2. Then move the selector "Temperature" (2) in position "Set" and set required temperature with the help of rotary knob (3).
  3. The settable temperature will be shown on a display (4).
  4. If you raise the temperature, the temperature pilot light "Pilot" (5) flashes red.
  5. If you reduce the temperature, the temperature pilot light "Pilot" (5) flashes green.
  6. After setting required temperature, move the selector (2) in position “Read” in order the required temperature to be fixed and maintained.
  7. In the process the current temperature of the soldering tip appears on a display and starts gradually changing until reaches the set point of temperature.
  8. On reaching the set point of temperature the temperature pilot light "Pilot" (5) starts flashing red and green by turns, and the value of temperature is fixed on a display.
  9. With the help of adjusting screw "Cal" (6) you can execute calibration of temperature of soldering channel.

For calibration of soldering channel the following tools are used:

  1. Calibrated thermometer with adjusted thermocouple.
  2. Ceramic screwdriver.

Operational procedure:

  1. Fix the selector "Temp" (2) in position "Set".
  2. Fix the rotary knob regulating temperature (3) on the value 315°C (599°F).
  3. Move the selector "Temp" in position "Read".
  4. Wait until the soldering station warms-up (2-3 minutes). In the process the values 315°C (599°F) appear on a digital display (4) of the soldering station and the temperature pilot light "Pilot" (5) starts flashing red and green by turns.
  5. Take the solder droplet on the tip of soldering iron.
  6. Fix the soldering iron vertically on the cross of thermocouple of calibrated thermometer. Clamping force should be produced by the sole weight of the soldering iron. It is expressly prohibited to apply additional force in order to avoid mechanical damage (break) of thermocouple.
  7. On setting values take the measured value of temperature from the digital display of calibrated thermometer.
  8. In case of departure of temperature from the value 315°C (599°F) over 5°C (41°F) it has to execute calibration procedure of soldering channel.
  9. Steplessly turn adjusting screw "Cal" (5) on the faceplate of the station by a ceramic screwdriver until the values on a digital display reach 315±2°C (599±35°F). It is to bear on mind that after turning the adjusting screw, temperature of soldering tip changes slowly. That is why this operation has to be performed deliberately. Be attentive and control changes of temperature on the digital display of thermometer.
    Even if it seems that values of temperature are fixed, it has to wait for 20-30 seconds in order to be assured that the temperature is definitely fixed.

Desoldering Channel

  1. Switch on a desoldering channel (7). Then move the selector "Temp" (8) in position "Set" and set the required temperature with the help of rotary knob (9).
  2. The settable temperature will be shown on a display (10).
  3. If you raise the temperature, the temperature pilot light "Pilot"(11) flashes red. If you reduce the temperature, the temperature pilot light "Pilot" (11) flashes green.
  4. On setting the required temperature, move the selector (6) in position "Read" in order the required temperature to be fixed and maintained.
  5. In the process the current temperature of the desoldering tip appears on a display and starts gradually changing until reaches the set point of temperature.
  6. On reaching the set point of temperature the temperature pilot light "Pilot" (11) starts flashing red and green by turns, and the value of set point of temperature is fixed on a display.
  7. If powered desoldering iron is not in use for a long period of time (over 5 minutes) the indicator "Pause" (13) flashes in green. After pressing the trigger of desoldering iron the compressor of desoldering channel starts working and the indicator "Pause" (13) goes out.
  8. With the help of adjusting screw "Cal" (12) you can execute calibration of temperature of desoldering channel.

For calibration of desoldering channel the following tools are used:

  1. Calibrated thermometer with the adjusted thermocouple.
  2. Ceramic screwdriver.

Operational procedure:

  1. Fix the selector "Temp" (6) in position "Set".
  2. Fix the rotary knob regulating temperature (7) on the value 315°C (599°F).
  3. Move the selector "Temp" (6) in position "Read".
  4. Wait until the desoldering station warms-up (3-5 minutes). In the process the values 315°C (599°F) appear on a digital display (8) of the desoldering station and the temperature pilot light "Pilot" (5) starts flashing red and green by turns.
  5. Fix the desoldering iron vertically on the cross of thermocouple of calibrated thermometer. Clamping force should be produced by the sole weight of the desoldering iron. It is expressly prohibited to apply additional force in order to avoid mechanical damage (break) of thermocouple.
  6. On setting values take the measured value of the temperature from the digital display of calibrated thermometer.
  7. In case of departure of temperature from the values 315°C (599°F) over 5°C (41°F) it has to execute calibration procedure of desoldering channel.
  8. Steplessly turn adjusting screw "Cal" (12) on the faceplate of the station by a ceramic screwdriver until the values on a digital display reach 315±2°C (599±35°F). It is to bear on mind that after turning the adjusting screw, temperature of soldering tip changes slowly. That is why this operation has to be performed deliberately. Be attentive and control changes of temperature on the digital display of thermometer.
    Even if it seems that the values of temperature are fixed, it has to wait for 20-30 seconds in order to be assured that the temperature is definitely fixed.

Frequently Asked Questions

  • What types of tips I can buy for soldering iron?
  • Desoldering station has a motor running and is extremely loud.
  • How ASE-3101 Soldering Station is designed?

  • What types of tips I can buy for soldering iron?

    90M-T-0,8D Soldering Tip                         90M-T-1,2D Soldering Tip



    90M-T-1,6D Soldering Tip

    90M-T-2,4D Soldering Tip                     90M-T-3,2D Soldering Tip



    90M-T-0,8C Soldering Tip
    / 90M-T-B Soldering Tip                  90M-T-1,2D Soldering Tip



    90M-T-I Soldering Tip / 90M-T-LB Soldering Tip

    90M-T-2C Soldering Tip                             90M-T-3C Soldering Tip



    90M-T-4C Soldering Tip

    90M-T-K Soldering Tip

    90M-T-1,8H Soldering Tip                         90M-T-H Soldering Tip
