ACM-2103 2000 A AC/DC Clamp Meter. True RMS + Multimeter + Direct current input (mA, A)

AKTAKOM ACM-2103 2000 A AC/DC Clamp Meter. True RMS + Multimeter + Direct current input (mA, A)
Click an image to enlarge
Brand:AKTAKOM
Warranty:1 year
User's Guide:Download
True RMS

Retail price :$149.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

In stock now

BuyAdd to cart

AKTAKOM ACM-2103 is 2 in 1 instrument: 2000 A clamp meter + digital multimeter.

Features:

  • Meet IEC 1010 CATIII 1000V safety requirement
  • True rms reading for ACV & ACA measurement
  • 4000 counts, auto range, multi-functions for ACA, DCA, ACV, DCV, Ohms, capacitance, Hz, diode, duty cycle and continuity check
  • LSI circuit provides high reliability and durability
  • Wide ranges (2000A, 400A) clamp on current measurement both for ACA & DCA
  • 4 ranges (400uA, 4000uA, 40mA, 400mA) direct current input measurement both for ACA & DCA
  • Overload protection circuit is provided for all ranges
  • Data hold, relative key, back light
  • Compact & heavy duty ABS and fireproof plastic case

DC Voltage (DCV)1000 V
DCV Accuracy(0.5%+2)
DCV Resolution0.1 mV
AC Voltage (ACV)1000 V
ACV Accuracy(0.5%+2)
ACV Resolution1 mV
DC Current (DCA)2000 A
DCA Accuracy(2.0%+5)
DCA Resolution0.1 A
AC Current (ACA)2000 A
ACA Accuracy(2.0%+5)
ACA Resolution0.1 A
Frequency0.001 Hz...100 kHz
Duty Cycle1%...99%
Resistance0.1 Ω...40 MΩ
Capacitance10 pF...50 F
Diode test+
Continuity check+
True RMS+
Data hold+
Relative measurement+
Jaw size2.0 in / 50 mm
DisplayLCD, 5000 counts
Power supply9 V battery
Dimensions10 x 2.9 x 1.5 in / 255 x 73 x 38 mm

Accuracy tables

DC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValue Learn an absolute error of your measurementValue+error
400 mV 0.1 mV (0.5%+2 digits) 2.1995 mV mV
4 V 0.001 V (1.0%+2 digits) 0.04199 V V
40 V 0.01 V (1.0%+2 digits) 0.4199 V V
400 V 0.1 V (1.0%+2 digits) 4.199 V V
1000 V 1 V (1.0%+2 digits) 11.99 V V

AC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
4 V 0.001 V (1.2%+5 digits) 0.052988 V V
40 V 0.01 V (1.2%+5 digits) 0.52988 V V
400 V 0.1 V (1.2%+5 digits) 5.2988 V V
1000 V 1 V (1.2%+5 digits) 16.988 V V

DC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 A 0.1 A (1.2%+5 digits) 5.2988 A A
4000 A 1 A (1.2%+5 digits) 52.988 A A
40 mA 0.01 mA (1.2%+5 digits) 0.52988 mA mA
400 mA 0.1 mA (1.2%+5 digits) 5.2988 mA mA
400 A 0.1 A (2.0%+5 digits) 8.498 A A
2000 A 1 A (2.0%+8 digits) 47.98 A A

AC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 A 0.1 A (1.2%+5 digits) 5.2988 A A
4000 A 1 A (1.2%+5 digits) 52.988 A A
40 mA 0.01 mA (1.2%+5 digits) 0.52988 mA mA
400 mA 0.1 mA (1.2%+5 digits) 5.2988 mA mA
400 A 0.1 A (2.0%+5 digits) 8.498 A A
2000 A 1 A (2.0%+8 digits) 47.98 A A

Frequency

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
5 Hz 0.001 Hz (1.0%+5 digits) 0.05499 Hz Hz
50 Hz 0.01 Hz (1.0%+5 digits) 0.5499 Hz Hz
500 Hz 0.1 Hz (1.0%+5 digits) 5.499 Hz Hz
5 kHz 1 Hz (1.0%+5 digits) 0.05499 kHz kHz
50 kHz 0.01 kHz (1.0%+5 digits) 0.5499 kHz kHz
100 kHz 0.1 kHz (1.0%+5 digits) 1.499 kHz kHz

Resistance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 Ω 0.1 Ω (1.0%+5 digits) 4.499 Ω Ω
4 kΩ 1 Ω (1.0%+5 digits) 0.04499 kΩ
40 kΩ 10 Ω (1.0%+5 digits) 0.4499 kΩ
400 kΩ 100 Ω (1.0%+5 digits) 4.499 kΩ
4 MΩ 1 kΩ (2.0%+2 digits) 0.08198 MΩ
40 MΩ 10 kΩ (3.5%+5 digits) 1.44965 MΩ

Capacitance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
50 nF 10 pF (3.0%+5 digits) 1.5497 nF nF
500 nF 100 pF (3.0%+5 digits) 15.497 nF nF
5 F 0.001 F (3.0%+5 digits) 0.15497 F F
50 F 0.01 F (3.0%+5 digits) 1.5497 F F

Specifications:

General specifications:

Display: 15mm (0.6") LCD, 4 digits, Max. indication 5000 (frequency range)
Measurement range: ACA, DCA, ACV, DCV, Ohms, Diode, Hz, capacitance, duty cycle, continuity beeper
Polarity: Automatic Switching, "-" indicates negative polarity
Current Sensor: Hall effect sensor

Zero adjustment:

  • DCA: Push bottom adjustment
  • Other ranges: Automatic adjustment

Over-input: Indication of "1" or "-1"
Sampling Time: Approx. 0.35 second
Battery: DC 9V battery, heavy duty or Alkaline type, 006P, MN1604 (PP3) or equivalent
Power Consumption: Approx. DC 5mA
Operating Temp.: 0°C to 50°C (32°F to 122°F)
Operating humidity: Less than 80% RH.
Max. jaw open size: 2.36in/60mm Dia.

Electrical specifications (23±5°C):

Function Range Resolution Accuracy Overload Protection
DC/AC voltage 400mV (DC only) 0.1mV ±(0.5%+2d) AC/DC 1000V
4V 0.001V DCV: ±(1%+2d) ACV: ±(1.2%+5d)
40V 0.01V
400V 0.1V
1000V 1V
DC/AC current (Direct input) 400uA 0.1uA ±(1.2%+5d) AC/DC 500mA (Fuse)
4000uA 1uA
40mA 0.01mA
400mA 0.1mA
DC/AC current (Clamp on) 400A 0.1A ±(2%+5d) AC/DC 2000A/1000V
2000A 1A ±(2%+8d)

Remarks:

  • True rms measurement both for ACV, ACA function.
  • Input impedance for ACV & DCV range is 10 Mega ohm
  • ACA, ACV frequency response is from 45 to 1KHz
  • ACA, ACV specifications are tested on sine wave 50/60 Hz

Function Range Resolution Accuracy Overload Protection
Ohms 400 ohm 0.1 ohm ±(1%+5d) AC/DC 400V
4 Kohm 1 ohm
40 Kohm 10 ohm
400 Kohm 100 ohm
4 Mohm 1 Kohm ±(2%+2d)
40 Mohm 10 Kohm ±(3.5%+5d)
Capacitance 50nF 10pF ±(3%+5d) AC/DC 400V
500nF 100pF
5uF 0.001uF
50uF 0.01uF
Frequency (>5V) 5Hz 0.001Hz ±(1%+5d) AC/DC 1000V
50Hz 0.01Hz
500Hz 0.1Hz
5KHz 1Hz
50KHz 0.01KHz
100KHz 0.1KHz
Duty cycle 1% to 99% 0.1%

Diode: Short/non conductance, good/defect test

Continuity: If measuring assistance is less than 10 ohm, the beeper will sound

Dimensions: 10x2.9x1.5in/255x73x38mm

Weight: 0.85lb/380g (including battery)

Accessories:

Standard accessories:

  • Operation manual
  • Test lead (red & black)

Optional accessories:

  • Carrying case
  • EMF Adapter
  • Light Adapter
  • Anemometer Adapter
  • Pressure Adapter
  • Sound Adapter
  • Tachometer Adapter
  • High Voltage Probe

DCV, ACV Measurement

  • Connect BLACK test lead into "COM" terminal
  • Connect RED test lead into "V" terminal
  • When measuring"DCV" select the "Function rotary switch" to the "V" position then push the "FUNC" button, the display willshow "="
  • When measuring"ACV" select the "Function rotary switch" to the "V" position then push the "FUNC" button, the display will show "~"
  • When LCD shows the "AUTO" marker the meter is under the "auto range" mode, the meter will select the suitable measurement range automatically
  • Under the operation of "auto range" mode push the "Range button" will hold the range.

DCV MeasurementACV Measurement

Resistance Measurement

  • Connect BLACK test lead into "COM" terminal
  • Connect RED test lead into "Ω" terminal
  • Select the "Function rotary switch" to the "Ω" position then push the "FUNC" button, the display willshow "Ω"
  • When LCD shows the "AUTO" marker the meter is under the "auto range" mode, the meter will select the suitable measurement range automatically
  • Under the operation of "auto range" mode push the "Range button" will hold the range.

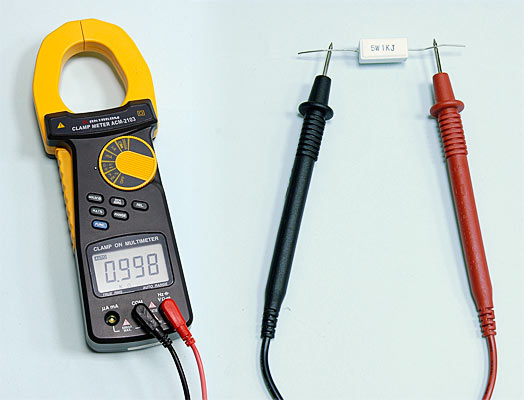

Resistance Measurement

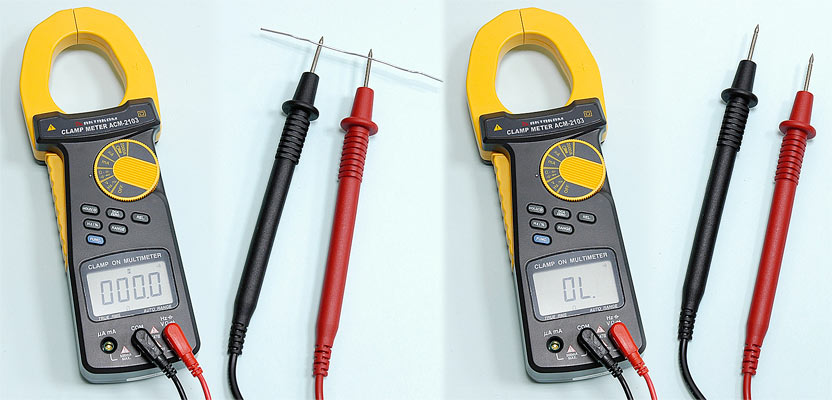

Continuity Check

  • Connect BLACK test lead into "COM" terminal.
  • Connect RED test lead into "Ω" terminal.
  • Select the "Function rotary switch" to the "" position then push the "FUNC. button" for display show "".
  • When the resistance value is less than 10Ω, the beeper sound will be generated.

Diode Test

  • Connect BLACK test lead into "COM" terminal.
  • Connect RED test lead into "" terminal.
  • Select the "Function rotary switch" to the "" position then push the "FUNC. button" for display show "".
  • a. When connected with polarity as shown in Fig. below, a forward current flow is established and the approx. Diode Forward Voltage (VF) value in volt will appears on the display reading. If the diode under test is defective, ".000" or near ".000" value (short circuit) or "1" (open circuit) will be displayed.
    b. When connected as shown in Fig. below, a reverse check on the diode is made. If the diode under test is good," 1" will be displayed. If the diode under test is defective, ".000" or other numbers will be displayed. Proper diode testing should include both steps a. and b. above.


Test Diode

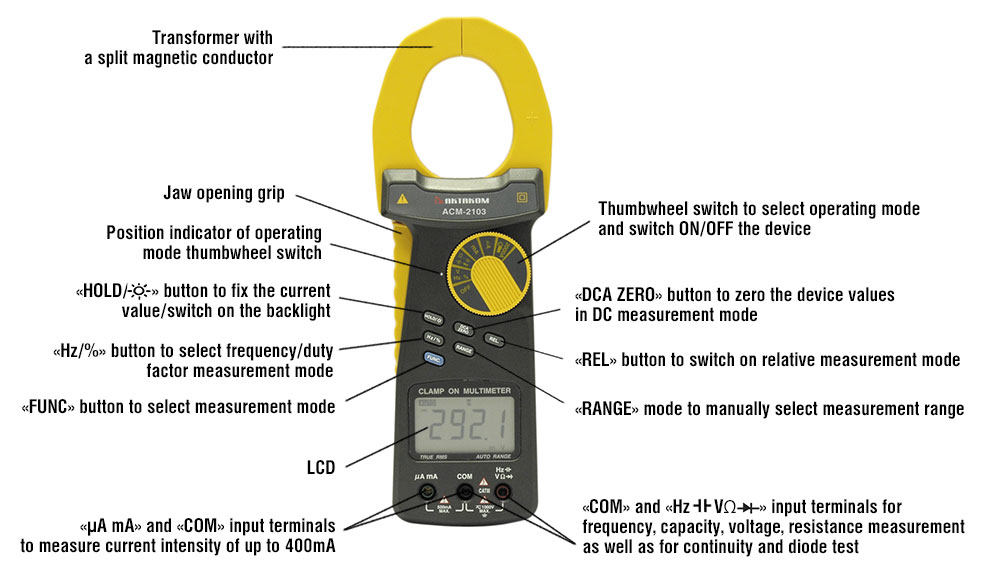

Controls of AKTAKOM ACM-2103 Clamp Meter

DC Current Measurement

Clamp on:

  • Select the "Function rotary switch" to "2000A" position then push the "FUNC" button, the display will show "="
  • Push the "DCA zero" button at least 2 seconds to let the display show "ZERO" value
  • Press the "Trigger" to open the "Current Sensor Jaws" and clamp on the measure conductor only.

Consideration:
a. Recommend use the "auto range" mode typically. However if push the "Range button" will hold the range.
b. For safety reason, please insert the "Terminal rubber cover" for protection.

Direct input:

  • Connect BLACK test lead into "COM" terminal
  • Connect RED test lead into "μA, mA" terminal
  • If measure "μA" (400μA, 4000μA), select the "Function rotary switch" to the "uA" position then push the "FUNC" button, the display will show "="
  • If measure "mA" (40mA, 400mA), select the "Function rotary switch" to the "mA" position then push the "FUNC" button, the display will show "="
  • Open the circuit in which the current are to be measured. Now securely connect test lead in series with the circuit.

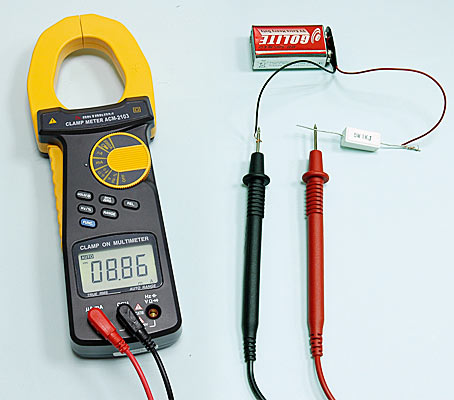

DCA Measurement

AC Current Measurement

Clamp on:

  • Select "Function rotary switch" to the "2000A" position then push "FUNC" button, the display willshow "~"
  • Press the "Trigger" to open the "Current Sensor Jaws"and clamp on the measure conductor only.

Consideration:
a. Recommend use the "auto range" mode typically. However if push the "Range button" will hold the range.
b. For safety reason, please insert the "Terminal rubber cover" for protection.

Direct input:

  • Connect BLACK test lead into "COM" terminal
  • Connect RED test lead into "μA, mA" terminal
  • If measure "μA" (400μA, 4000μA), select the "Function rotary switch" to the "μA" position then push the "FUNC" button, thedisplay willshow "~"
  • If measure "mA" (40mA, 400mA), select the "Function rotary switch" to the "mA" position then push the "FUNC" button, thedisplay willshow "~"
  • Open the circuit in which the current are to be measured. Now securely connect test lead in series with the circuit.

ACA Measurement

Data Hold Operation

  • During the measurement, pushing the "Hold button" once a while will freeze the measured value & the LCD will indicate "H" symbol.
  • Push the " Hold Button " again to release the data hold function.

Relative Operation

  • During the measurement, the circuit will memorize the last measured values if push the "REL.Button" at once, then LCD will show zero value & a "REL" indicator.
  • The input measured values will deduct last measured values automatically, then show those new value on the display.
  • It will release the Relative Measurement function if push the REL. button at once again, at same time the "REL" marker will disappear.

Back light Operation

Push the "button" about two seconds continuously, the LCD back light lamp will turn on.

Capacitance Measurement

  • Connect BLACK test lead into "COM" terminal.
  • Connect RED test lead into "" terminal.
  • Select the "Function rotary switch" to the "" position then push the "Function button" for display show "nF"
  • Zero adjustment:
    Due to the consideration of the existing "stray capacitance" of the internal circuit board or the test aliigator. For the 50 nF & 500 nF range, it should to make the zero adjustment procedures before make the measurement first. Open the input terminal & not connecting the measured capacitor, push the "REL. Button", the display will show zero value. Then connect the measuring capacitor again & make the measurement following.
  • For the capacitance measurement, the meter is always under the "auto range" mode, it will select the suitable measurement range automatically.

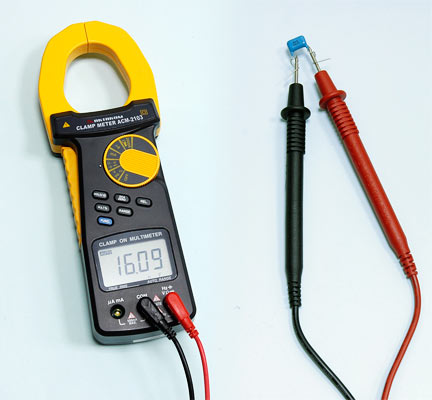

Capacitance Measurement

Frequency and Duty Cycle Measurement

  • Connect BLACK test lead into "COM" terminal.
  • Connect RED test lead into "Hz" terminal.
  • Select the "Function rotary switch" to the "Hz" position then push the "Hz/% button" for display show "Hz".
  • For the FREQUENCY measurement, the meter is always under the "auto range" mode, it will select the suitable measurement range automatically.
  • For the Duty Cycle measurement all the measuring procedures are same as above except push the "Hz/%" for display show "%".

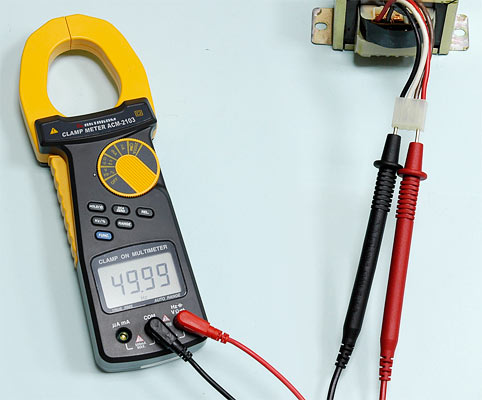

Frequency Measurement

La pinza amperimtrica AKTACOM ACM-2103 es un ampermetro de hasta 2000A con RMS verdadero ms un multmetro digital.

Este detector de corriente ha sido construido con circuitos lgicos LSI que le otorgan una alta fiabilidad y durabilidad. Mide la corriente sin contacto y cuenta con una slida carcasa irrompible resistente al fuego con una proteccin de goma que la hace muy manejable para el usuario. Por su forma especial le facilita su uso en zonas de difcil acceso. Todas las funciones vienen con proteccin por sobrecarga, lo que ofrece un mximo de seguridad para el usuario. Podr usar el detector de corriente para conductores con un dimetro de hasta 1 3/4” (44mm). Es una herramienta muy til para el servicio tcnico, el uso estacionario en talleres profesionales dedicados a reparaciones, as como en laboratorios.

Caractersticas:

1. Pantalla digital LCD de 4000 cuentas con iluminacin de fondo.
2. Proteccin electrnica de sobrecarga.
3. Apagado automtico e indicacin de batera baja.
4. Funcin de memoria de valores (Data Hold).
5. RMS verdadero para voltaje y corriente CA.
6. Prueba de diodos y control de continuidad con zumbador.
7. Funcin de medicin de resistencia, frecuencia y capacidad.
8. Corriente alterna hasta 400 A.
9. Medicin de tensin hasta 1000 V CA/CD.
10. Frecuencia desde 45 Hz hasta 1 KHz.
11. Funcin de punto cero DCA.
12. Dimetro del conductor mximo: 1 3/4 (44 mm).
13. Carcasa doble moldeada

Botn de mantencin de valores

Para congelar la lectura del medidor LCD, presione el botn HOLD de datos. Si bien la retencin de datos este activada, fjese que el icono aparece en la pantalla LCD. Presione el botn HOLD de nuevo para volver al funcionamiento normal.

Botn de iluminacin de la LCD

La pantalla LCD est equipada con iluminacin de fondo para facilitar la visualizacin, especialmente en reas poco iluminadas. Mantenga el botn de HOLD apretado y se encender la luz, ella se apaga sola al cabo de unos 15 segundos.

Precauciones

  • Asegrese que la batera CD 9V est conectada con la polaridad correcta.
  • No exceda el mximo de voltaje aconsejado.
  • Coloque las pinzas roja y negra en la entrada correcta antes de medir.
  • Siempre coloque el botn conmutador en OFF para apagar el equipo.
  • Mientras se realizan mediciones de resistencia o capacitancia noaplique tensin a los bornes de entrada.
  • Solamente el panel delantero es resistente al agua. No sumerja el instrumento en agua pues se daara definitivamente.

Back to the section

Please give us your feedback to help us improve our website

* - required fields

AKTAKOM - the Best in Test Award Winner!
Site map|Privacy statement|Terms of Use & Store Policies|How to Buy|Shipping|Payment|© T&M Atlantic, Inc.,2010-2017
