ACM-2352 Clamp & Watt Meter. True RMS

AKTAKOM ACM-2352 Clamp & Watt Meter. True RMS
Click an image to enlarge
Brand:AKTAKOM
Warranty:1 year
User's Manual:Download
True RMS Bar graph indicator

Professional True RMS 1500A AC Watt Clamp Meter capable of providing accurate Watt, AC Current and Voltage readings regardless of waveforms.

Retail price :$145.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

In stock, 2 left

BuyAdd to cart

AKTAKOM ACM-2352 Professional True RMS 1500A AC Watt Clamp Meter provides accurate Watt, AC Current and Voltage readings regardless of waveforms.

Features

  • True RMS Value (Voltage and Current)
  • Large LCD Display with Backlight
  • 4 digits with dual display LCD
  • MIN/MAX measurement
  • True power / apparent power / power factor measurement
  • Data Hold
  • Auto Ranging
  • Overflow Indication
  • Auto Power Off
  • 2.16" (55mm) Jaw opening

DC Voltage (DCV)1000 V
DCV Accuracy0,1%
DCV Resolution0.01 mV
AC Voltage (ACV)750 V
ACV Accuracy0.8%
ACV Resolution0.1 mV
DC Current (DCA)1000 A
DCA Accuracy2.0%
DCA Resolution0.01 A
AC Current (ACA)1000 A
ACA Accuracy2.5%
ACA Resolution0.01 A
Frequency40 MHz
Duty Cycle10...95%
Resistance40 MΩ
Capacitance40 F
Power900 kW
Diode test+
Continuity check+
True RMS+
Data hold+
Min/Max measurement+
Peak hold+
Jaw size2.16 in / 55 mm
DisplayLCD, 4 digits
Bar graph indicator+
Power supply9 V battery
Dimensions23.4x4x1.8 in / 295x100x46 mm

Accuracy tables

DC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValue Learn an absolute error of your measurementValue+error
400 mV 0.01 mV (0.1%+9 digits) 0.48999 mV mV
4 V 0.0001 V (0.1%+4 digits) 0.0043999 V V
40 V 0.001 V (0.1%+4 digits) 0.043999 V V
400 V 0.01 V (0.1%+4 digits) 0.43999 V V
1000 V 0.1 V (0.5%+4 digits) 5.3995 V V

AC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 mV 0.1 mV (0.8%+9 digits) 4.0992 mV mV
4 V 0.0001 V (1%+30 digits) 0.042999 V V
40 V 0.001 V (1%+30 digits) 0.42999 V V
400 V 0.01 V (1%+30 digits) 4.2999 V V
750 V 0.1 V (1%+30 digits) 10.499 V V

DC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 A 0.01 A (2%+30 digits) 8.2998 A A
1000 A 0.1 A (2.5%+30 digits) 27.9975 A A

AC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 A 0.01 A (2.5%+30 digits) 10.29975 A A
1000 A 0.1 A (2.8%+30 digits) 30.9972 A A

Frequency

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
40 Hz 0.001 Hz (0.3%+2 digits) 0.121997 Hz Hz
400 Hz 0.01 Hz (0.3%+2 digits) 1.21997 Hz Hz
4 kHz 0.0001 kHz (0.3%+2 digits) 0.0121997 kHz kHz
40 kHz 0.001 kHz (0.3%+2 digits) 0.121997 kHz kHz
400 kHz 0.01 kHz (0.3%+2 digits) 1.21997 kHz kHz
4 MHz 0.0001 MHz (0.3%+2 digits) 0.0121997 MHz MHz
40 MHz 0.001 MHz (0.3%+2 digits) 0.121997 MHz MHz

Resistance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 Ω 0.01 Ω (0.5%+9 digits) 2.08995 Ω
4 kΩ 0.0001 kΩ (1%+4 digits) 0.040399 kΩ kΩ
40 kΩ 0.001 kΩ (1%+4 digits) 0.40399 kΩ kΩ
400 kΩ 0.01 kΩ (1%+4 digits) 4.0399 kΩ kΩ
4 MΩ 0.0001 MΩ (2%+10 digits) 0.080998 MΩ MΩ
40 MΩ 0.001 MΩ (3%+10 digits) 1.20997 MΩ MΩ

Capacitance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 nF 0.01 nF (3.5%+40 digits) 14.39965 nF nF
4 F 0.0001 F (3.5%+10 digits) 0.1409965 F F
40 F 0.001 F (3.5%+10 digits) 1.409965 F F
400 F 0.01 F (3.5%+10 digits) 14.09965 F F
4 mF 0.0001 mF (5%+10 digits) 0.200995 mF mF
40 mF 0.001 mF (10%+20 digits) 4.0199 mF mF

Active power

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
900 kW 0.01 kW (3%+10 digits) 27.0997 kW kW

Apparent power

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
900 kVA 0.01 kVA (3%+10 digits) 27.0997 kVA kVA

Energy

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
9999 kWh 1 kWh (3%+2 digits) 301.94 kWh kWh

Specifications:

Function Range Max Resolution Accuracy
AC Voltage 100V 0.01V (1.2%+5d)
750V 0.1V
1000V 1V
AC Current
40A
0.01A
(2.0%+5d)
400A 0.1A
1500A 1A
Active Power
900kW 0.01kW (3.0%+5d)
Apparent Power 900kVA 0.01kVA (3.0%+5d)
Reactive Power 900kVAR 0.01kVAR (4.0%+5d)
Power Factor (Capacitive or Inductive) 0.3 ... 1 0.1
(0.02%+2d)
Phase Angle 0 ...9 0 1 2
Frequency 40Hz ... 40MHz 1Hz (0.5%+5)
Energy 1 ... 9999kWh
1kWh (3%+2)

General Specification

  • LCD: 4 digits, dual
  • Auto Power Off: 30 minutes
  • Manual Data Memory and Read: 99 sets
  • Jaw opening: 2.16" (55mm)
  • Size: 23.4Ч4Ч1.8in / 295Ч100Ч46mm
  • Weight: 19oz / 537g

AC/DC measurement with AKTAKOM ACM-2352 clamp meter

Note: Disconnect the test leads before measuring with the clamp meter.

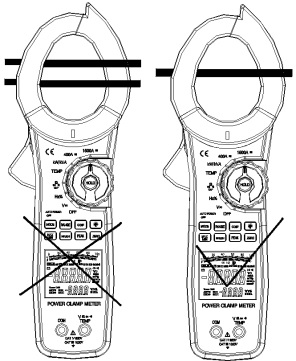

  1. Rotate the function switch to 1500AAC/DC position.
  2. Press MODE button to select AC or DC.
  3. Press the trigger to open jaw. Fully enclose only one conductor.
  4. Read the current value in the display.
  5. If the value is less than 400A rotate the function switch to 400AAC/DC position to improve resolution.

DCA Zero
Zero feature removes offset values and improves accuracy for DC measurement. Therefore select ADC and press ZERO button (there should be no conductor in the clamp). The display will show zero. The offset value will be stored and removed from all measurements.

Frequency
When ACV is selected, the measured frequency can be viewed in the lower display.


AC/DC voltage measurement with AKTAKOM ACM-2352 clamp meter

Note: the maximum value of the input signal for DC and AC voltage measurement should not exceed the acceptable value specified in the user manual. Do not attempt to measure voltage exceeding these limits. Failure to follow these instructions can result in electric shock and the instrument damage.

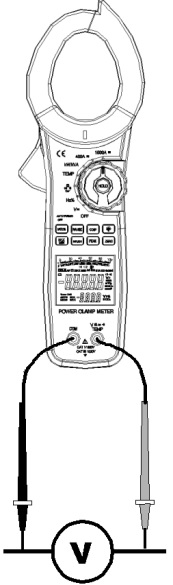

  1. Rotate the function switch to V position.
  2. Press MODE button to select AC or DC Voltage.
  3. Insert the black test lead banana plug into the negative COM jack. Insert the red test lead banana plug into the positive V jack.
  4. Touch the black test probe tip to the negative side of the circuit. Touch the red test probe tip to the positive side of the circuit.
  5. Read the voltage value in the display.

Frequency
When ACA is selected the measured frequency can be viewed in the lower display.


Resistance measurement with AKTAKOM ACM-2352 clamp meter

Note: Remove power from the device under test before measuring resistance.

  1. Set the function switch to Ω position.
  2. Insert the black test lead banana plug into the negative COM jack. Insert the red test lead banana plug into the positive V jack.
  3. Touch the black test probe tip to one side of the device to be measured. Touch the red test probe tip to the other side of the device to be measured.
  4. Read the resistance value in the display.

Continuity test with AKTAKOM ACM-2352 clamp meter

  1. Connect as described for resistance measurements.
  2. Press the MODE button to select continuity .
  3. Touch the test probe tips across the circuit or component under test.
  4. If the resistance is <50Ω, a tone will sound.

Diode test with AKTAKOM ACM-2352 clamp meter

  1. Connect as described for resistance measurements
  2. Press MODE button to select diode test
  3. Touch the test probe tips to the diode or semiconductor junction under test. Note the meter reading.

Reverse the test lead polarity by reversing the red and black leads.

Note: If one reading displays a value (typically 0.400V to 01.800V) and the other one displays OL, the diode is good. If both readings display OL the device is open. If both readings are very small or 0, the device is shorted.

Capacitance measurement with AKTAKOM ACM-2352 clamp meter

Note: To avoid electric shock discharge the capacitor before measuring.

  1. Press MODE button to select capacitance measurements.
  2. Insert the black test lead banana plug into the negative COM jack. Insert the red test lead banana plug into the positive jack .
  3. Touch the black test probe tip to one side of the device. Touch the red test probe tip to the other side of the device.
  4. Read the capacitance value in the display.

For very large values of capacitance measurement time can be several seconds before the final reading stabilizes.

Note: Zero feature removes stray test lead capacitance to improve the accuracy of low value capacitance measurement. Therefore press and hold MODE ZERO button for two beeps. The display will show zero. The offset value is now stored and is removed from all measurements.
