AKTAKOM ACM-2056 1000 A AC/DC Clamp Meter. True RMS + Multimeter + Wireless USB
Click an image to enlarge
Brand: AKTAKOM
Warranty: 1 year
User's Guide: Download
Installation Guide: Download
Wireless USB True RMS Bar graph indicator

Voltage DC Max Range: 600V ±(0.5%+1d); Voltage AC Max Range: 600V ±(1.5%+2d); Current DC Max Range: 1000A ±(2.0%+5d); Current AC Max Range: 1000A ±(2.5%+4d); Resistance Max Range: 60MΩ ±(3.0%+5d); Temperature Max Range: 1000şC/1832°F ±(3.0%+3d); Capacitance Max Range: 4000μF ±(2.5%+5d); Frequency Max Range: 10KHz ±(1.2%+2d)

Click on Application Tab to see how ACM-2056 Application Software works!

Retail price : $160.00

Estimated shipping cost $12 (Continental US only!)
Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

In stock now

Buy Add to cart

AKTAKOM ACM-2056 Professional AC, AC/DC True RMS Autoranging Clamp Meter with Wireless USB Interface

Features:

  • Double molded plastic housing
  • True RMS measurement for ACV & ACA
  • Auto Power Off in 30 minutes if Wireless USB funtion is not turn on
  • Current measurement: AC/DC
  • LCD display counts: 6000
  • AC True RMS
  • Display with backlight
  • Data Hold
  • REL (Zero) Function
  • Auto Power Off
  • Low battery indication
  • Analog Bargraph / 61 seg.
  • 1.57” (40mm) Jaw opening
  • USB interface
  • Wireless transmitter: 915MHz
  • Receive Sensitivity: -109dBm
  • Communication Distance: ≤ 100m in an unobstructed field

Now available under Application Tab How to use ACM-2056 Software illustrated in detail

DC Voltage (DCV)600 V
DCV Accuracy±(0.8%+2)
DCV Resolution0.1 mV
AC Voltage (ACV)600 V
ACV Accuracy±(1.8%+8)
ACV Resolution1 mV
DC Current (DCA)1000 A
DCA Accuracy±(2.8%+5)
DCA Resolution0.1 A
AC Current (ACA)1000 A
ACA Accuracy±(2.8%+8)
ACA Resolution0.1 A
Frequency10 Hz...10 kHz
Resistance0.1 Ω...60 MΩ
Capacitance10 pF...4000 µF
Temperature-20...+760 °C / -4...+1400 °F
Diode test+
Continuity check+
True RMS+
Autorange+
Data hold+
Min/Max measurement+
Relative measurement+
Special featuresNon-contact ACV detection
Jaw size1.6 in / 40 mm
InterfaceWireless USB
DisplayLCD, 6000 counts
Bar graph indicator+
Power supply9 V battery
Dimensions9.1 x 3.0 x 1.6 in / 232 x 77 x 39 mm

Accuracy tables

DC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValue Learn an absolute error of your measurementValue+error
600 mV 0.1 mV ±(0.8%+2 digits) ±4.9992 mV mV
6 V 0.001 V ±(1.5%+2 digits) ±0.091985 V V
60 V 0.01 V ±(1.5%+2 digits) ±0.91985 V V
600 V 0.1 V ±(1.5%+2 digits) ±9.1985 V V

AC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
6 V 0.001 V ±(1.8%+8 digits) ±0.115982 V V
60 V 0.01 V ±(1.8%+8 digits) ±1.15982 V V
600 V 0.1 V ±(1.8%+8 digits) ±11.5982 V V

DC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
600 A 0.1 A ±(2.8%+5 digits) ±17.2972 A A
1000 A 1 A ±(3%+5 digits) ±34.97 A A

AC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
600 A 0.1 A ±(2.8%+5 digits) ±17.2972 A A
1000 A 1 A ±(3%+5 digits) ±34.97 A A

Frequency

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
10 kHz 0.01 kHz ±(1.5%+2 digits) ±0.16985 kHz kHz

Resistance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
600 Ω 0.1 Ω ±(1%+4 digits) ±6.399 Ω
6 kΩ 0.001 kΩ ±(1.5%+2 digits) ±0.091985 kΩ kΩ
60 kΩ 0.01 kΩ ±(1.5%+2 digits) ±0.91985 kΩ kΩ
600 kΩ 0.1 kΩ ±(1.5%+2 digits) ±9.1985 kΩ kΩ
6 MΩ 0.001 MΩ ±(2.5%+3 digits) ±0.152975 MΩ MΩ
60 MΩ 0.01 MΩ ±(3.5%+6 digits) ±2.15965 MΩ MΩ

Capacitance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
40 nF 0.01 nF ±(4%+50 digits) ±2.0996 nF nF
400 nF 0.1 nF ±(3%+5 digits) ±12.497 nF nF
4 µF 0.001 µF ±(3%+5 digits) ±0.12497 µF µF
40 µF 0.01 µF ±(3%+5 digits) ±1.2497 µF µF
400 µF 0.1 µF ±(4%+10 digits) ±16.996 µF µF
4000 µF 1 µF ±(5%+10 digits) ±209.95 µF µF

Specifications:

FunctionMax Range Basic Accuracy
Voltage DC 600V ±(0.5%+1d)
Voltage AC 600V ±(1.5%+2d)
Current DC 1000A ±(2.0%+5d)
Current AC 1000A ±(2.5%+4d)
Resistance 60MΩ ±(3.0%+5d)
Temperature 1000ºC/1832°F ±(3.0%+3d)
Capacitance 4000μF ±(2.5%+5d)
Frequency 10-10KHz ±(1.2%+2d)
Continuity check Buzzer sounds at 50Ω
Diode test Test current 0.3mA

Size(HxWxD): 9.1×3×1.6in/230×76×40mm
Weight: 11.11oz/315g

Included

1. Test leads



2. Carrying case

3. Wireless device with USB cable

4. 9V battery

Optional

1. Software (Available for download by registration)

DC/AC Voltage Measurements

  • Insert the black test lead into the negative COM terminal and the red test lead into the positive V terminal.
  • Set the function switch to the V position.
  • Select AC or DC with the MODE button.
  • Connect the test leads in parallel to the circuit under test.
  • Read the voltage measurement on the LCD display.

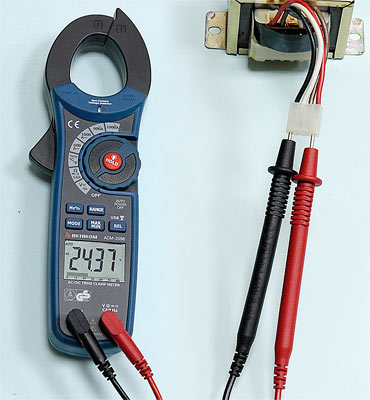

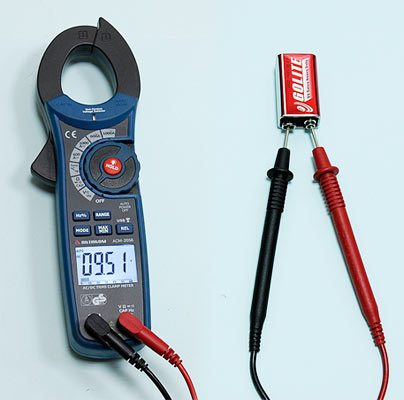

DC Voltage MeasurementAC Voltage Measurement

Testing Diode and Continuity Test

  • Insert the black test lead banana plug into the negative COM jack and the red test lead banana plug into the positive diode jack.
  • Turn the rotary switch to the Ω "diode", "Buzz" CAP position.
  • Press the MODE button until "diode" appears in the display.
  • Touch the test probes to the diode under test. Forward voltage will indicate 0.4V to 0.7V. Reverse voltage will indicate "OL". Shorted devices will indicate near OmV and an open device will indicate "OL" in both polarities.
For Continuity tests, if the resistance is <40Ω, a tone will sound.

Test Diode
Continuity Test

Temperature Measurement

Warning: To avoid electric shock, disconnect both test probes from any source of voltage before making a temperature measurement.

  • Set the function switch to TEMP.
  • Insert the Temperature Probe into the negative (COM) and the V jacks, making sure to observe the correct polarity.
  • Select °C or °F with the MODE button.
  • Touch the Temperature Probe head to the part whose temperature you wish to measure. Keep the probe touching the part under test until the reading stabilizes (about 30 seconds).
  • Read the temperature in the display. The digital reading will indicate the proper decimal point and value.
Warning: To avoid electric shock, be sure the thermocouple has been removed before changing to another measurement function.

Temperature Measurement

Frequency / Duty Cycle Measurements (electronic)

  • Set the rotary function switch to "V" position.
  • Select ACV with the MODE button
  • Press the Hz/% button to indicate "Hz" in the display.
  • Insert the black lead banana plug into the negative COM jack and the red test lead banana plug into the positive Hz jack.
  • Touch the test probe tips to the circuit under test.
  • Read the frequency on the display.
  • Press the Hz/% button again to indicate "%" on the display. Read the % of duty cycle on the display.

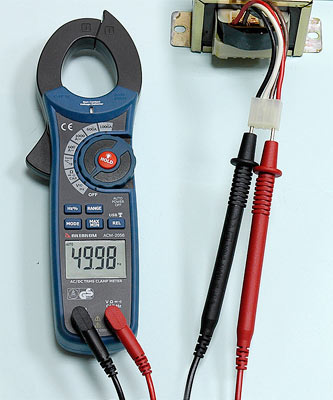

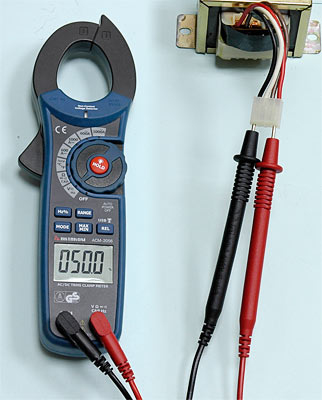

Frequency MeasurementDuty Cycle Measurement

Capacitance Measurement

Warning: To avoid electric shock, disconnect power to the unit under test and discharge all capacitors before taking any capacitance measurements. Remove the batteries and unplug the line cords.

  • Set the rotary function switch to the Ω "diode", "Buzz" CAP position.
  • Insert the black test lead banana plug into the negative (COM) jack. Insert the red test lead banana plug into the positive (V) jack.
  • Touch the test leads to the capacitor to be tested.
  • Read the capacitance value in the display.

Capacitance Measurement

AC/DC Current Measurements

Warning: Ensure that the test leads are disconnected from the meter before making current clamp measurements.

  • Set the Function switch to the 1000ADC, 600ADC, 1000AAC or 600AAC range.
  • If the range of the measured is not known, select the higher range first then move to the lower range if necessary.
  • Press the trigger to open jaw. Fully enclose one conductor to be measured. The clamp meter LCD will display the reading.

AC Current Measurement

Resistance Measurement

  • Insert the black test lead into the negative COM terminal and the red test lead into the positive terminal.
  • Set the function switch to the Ω "diode", "Buzz" CAP position.
  • Touch the test probe tips across the circuit or component under test. It is best to disconnect one side of the device under test so the rest of the circuit will not interfere with the resistance reading.
  • For Resistance tests, read the resistance on the LCD display.

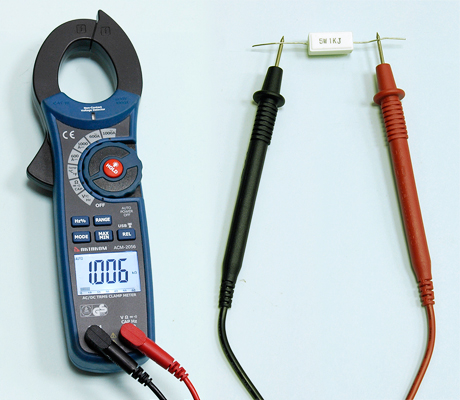

Resistance Measurement

Non-Contact AC Voltage Measurements

Warning: Risk of Electrocution. Before use, always test the Voltage Detector on a known live circuit to verify proper operation.

  • Touch the probe tip to the hot conductor or insert into the hot side of the electrical outlet.
  • If AC voltage is present, the detector light will illuminate. NOTE: The conductors in electrical cord sets are often twisted. For best results, rub the probe tip along a length of the cord to assure placing the tip in close proximity to the live conductor.

NOTE: The detector is designed with high sensitivity. Static electricity or other sources of energy may randomly trip the sensor. This is normal operation.

Frequently Asked Questions

  • Software or CD that comes with my equipment, where to find?
  • Is my USB driver properly installed?
  • How to turn off the AUTOPOWER OFF?

  • Software or CD that comes with my equipment, where to find?

    Some of AKTAKOM devices are sold without a Software CD or the last application or driver update. Please register yourself to download it anytime you want by using your equipment serial number.

  • Software downloadable using your serial number.


  • Up

    Is my USB driver properly installed?

    Go to your Control Panel \ System and Security \ System and then go to Device Manager to check if your USB driver is properly installed.

    If you can not see the driver and port it means you must reinstall the driver again or give us a call.


    Up

    How to turn off the AUTOPOWER OFF?

    To turn off the AUTOPOWER OFF system in a ACM-2056 Clamp Meter, please press REL button for 2 seconds to turn on the Wireless USB function, the USB icon appears on the LCD.

    To turn off the AUTOPOWER OFF system in a ACM-2353 Clamp Meter, please press USB to turn on the USB function, the USB icon appears on the LCD.


    Up

    ACM-2056 Application Software

    ACM-2056 software allows you to forward data from AKTAKOM ACM-2056 clamp meters to the PC.

    Learn more...

    Free for registered users

    Download
    (4.76 MB)
    Product registration required

    La pinza amperimétrica Profesional AKTACOM ACM-2368 con RMS verdadero de hasta 1000A. Es un medidor de corriente con selección de rango automático y conexión inalámbrica.

    Este detector de corriente profesional puede medir corrientes sin contacto, cuenta con una sólida carcasa irrompible resistente al fuego con una protección de goma que la hace muy manejable para el usuario. Permite hacer mediciones con selección de rango automático y para más comodidad su potente dispositivo inalámbrico permite tomar mediciones inalámbricas hasta 320’ (100m) de su computador. Todas las funciones vienen con protección por sobrecarga, lo que ofrece un máximo de seguridad para el usuario. Podrá usar el detector de corriente para conductores con un diámetro de hasta 1 1/2” (40 mm). Es una herramienta muy útil para el servicio técnico con mediciones consecutivas y el uso estacionario en locaciones industriales para registrar mediciones periódicas así como en laboratorios.

    Características:

    1. Pantalla digital LCD de 6000 cuentas con iluminación de fondo.
    2. Protección electrónica de sobrecarga.
    3. Apagado automático en 30 minutos si no esta conectado el dispositivo inalámbrico USB. Indicación de batería baja.
    4. Función de memoria Max y Min.
    5. RMS verdadero para voltaje y corriente CA.
    6. Segmentos gráficos de barra.
    7. Prueba de diodos y control de continuidad con zumbador.
    8. Función de medición de resistencia, frecuencia y capacidad.
    9. Corriente alterna hasta 1000 A.
    10. Medición de tensión hasta 600 V CA/CD.
    11. Frecuencia desde 30 Hz hasta 10 KHz.
    12. Función de punto cero DCA.
    13. Diámetro del conductor máximo: 1 1/2” (40 mm).
    14. Carcasa doble moldeada.
    15. Transmisor USB de 915 Mhz.
    16. Distancia de cobertura hasta 320’ (100m) en un campo sin obstáculos.

    Botón de iluminación de la LCD

    La pantalla LCD está equipada con iluminación de fondo para facilitar la visualización, especialmente en áreas poco iluminadas. Un toque la encienda otro la apaga. Tenga en cuenta que el medidor tiene apagado automático.

    Sistema Inalámbrico

    Para instalar el dispositivo inalámbrico deberá primero conectarlo con el adaptador USB a su computadora y acto seguido instalar el driver de reconocimiento mas el programa para comunicarse con el equipo. Ello le permitirá:

    • Tomar distintas mediciones a distancia.
    • Hacer tablas exportables a Excel o archivos TXT.
    • Crear gráficos de los puntos tomados.
    • Mantenga el botón REL apretado unos segundos y se conectara el dispositivo inalámbrico.
    • Durante la conexion inalámbrica el sistema de apagado automático no funciona.
