ACM-2368 1000 A AC/DC Clamp Meter. True RMS + Inrush + Pulse and Temperature measurements

AKTAKOM ACM-2368 1000 A AC/DC Clamp Meter. True RMS + Inrush + Pulse and Temperature measurements
Click an image to enlarge
Brand:AKTAKOM
Warranty:1 year
User's Guide:Download
True RMS Bar graph indicator

Professional True RMS 1000A AC/DC Clamp Meter capable of providing accurate inrush current measurement

Retail price :$86.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

Almost sold out,2left

BuyAdd to cart

AKTAKOM ACM-2368Professional True RMS 1000A AC/DC Clamp Meter provides accurate inrush current measurement.

Features:

1. 6600 counts digital LCD display with backlight
2. Electronic overload protection
3. Auto Power Off and Low battery indication
4. Data Hold function
5. True RMS AC Voltage and Current
6. Inrush current measurement and DCA Zero
7. Analog Bargraph Segments
8. Continuity buzzer & Diode check
9. AC/DC Current
10. DCA Zero function

Data Hold Button

To freeze the LCD meter reading, press the data HOLD button. While data hold is active, the HOLD icon appears on the LCD. Press the HOLD button again to return to normal operation.

LCD Backlight Button

The LCD is equiped with backlighting for easier viewing, especially in dimly lit areas. Press the backlight button to turn the backlight on. Press again to turn the backlight off. Note that the meter does have an auto power off feature as described below.

Inrush

The inrush current function for AC current measurementdetects the starting-up current of a motor. In ACA mode press INRUSH button, that will make the meter enter INRUSH mode. Then LCDwill display “----” until the motor isstarting up anddetected. The detection will be done only one time and the output reading will be hold. To exit INRUSH mode press and keepINRUSH button for more than one second.

DC Voltage (DCV)600 V
DCV Accuracy(1.5%+3)
DCV Resolution1 mV
AC Voltage (ACV)600 V
ACV Accuracy(1.8%+5)
ACV Resolution1 mV
DC Current (DCA)1000 A
DCA Accuracy(2.8%+5)
DCA Resolution0.1 A
AC Current (ACA)1000 A
ACA Accuracy(2.8%+8)
ACA Resolution0.1 A
Frequency0.1 Hz...15 kHz
Duty Cycle10.0%...94.9%
Resistance0.1 Ω...66 MΩ
Temperature-20...+760 C / -4...+1400 F
Diode test+
Continuity check+
True RMS+
Autorange+
Data hold+
Relative measurement+
Special featuresInrush Current Mode
Jaw size1.2 in / 30 mm
DisplayLCD, 6600 counts
Bar graph indicator+
Power supply9 V battery
Dimensions9.0 x 3.2 x 2 in / 229 x 80 x 49 mm

Accuracy tables

DC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValue Learn an absolute error of your measurementValue+error
6.6 V 0.001 V (1.5%+3 digits) 0.101985 V V
66 V 0.01 V (1.5%+3 digits) 1.01985 V V
600 V 0.1 V (1.5%+3 digits) 9.2985 V V

AC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
6.6 V 0.001 V (1.8%+5 digits) 0.123782 V V
66 V 0.01 V (1.8%+5 digits) 1.23782 V V
600 V 0.1 V (1.8%+5 digits) 11.2982 V V

DC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
660 A 0.1 A (2.5%+5 digits) 16.9975 A A
1000 A 1 A (2.8%+8 digits) 35.972 A A

AC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
660 A 0.1 A (2.5%+8 digits) 17.2975 A A
1000 A 1 A (2.8%+8 digits) 35.972 A A

Frequency

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
600 Hz 0.1 Hz (1.2%+2 digits) 7.3988 Hz Hz
6 kHz 0.001 kHz (1.2%+2 digits) 0.073988 kHz kHz
15 kHz 0.01 kHz (1.2%+2 digits) 0.19988 kHz kHz

Resistance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
660 Ω 0.1 Ω (1.0%+4 digits) 6.999 Ω Ω
6.6 kΩ 0.001 kΩ (1.5%+2 digits) 0.100985 kΩ
66 kΩ 0.01 kΩ (1.5%+2 digits) 1.00985 kΩ
660 kΩ 0.1 kΩ (1.5%+2 digits) 10.0985 kΩ
6.6 MΩ 0.001 MΩ (2.5%+3 digits) 0.167975 MΩ
66 MΩ 0.1 MΩ (3.5%+5 digits) 2.8065 MΩ

Specifications:

Function Range & ResolutionAccuracy (% of reading)
AC Current 660.0AAC±(2.5%+8digits)
1000AAC±(2.8%+8digits)
DC Current660.0ADC±(2.5%+5digits)
1000ADC±(2.8%+8digits)
DC Voltage6.600VDC±(1.5%+3digits)
66.00VDC
600.0VDC
AC Voltage 6.600VAC±(1.8%+5digits)
66.00VAC
600.0VAC
Resistance660.0Ω±(1.0%+4digits)
6.600kΩ±(1.5%+2digits)
66.00kΩ
660.0kΩ
6.600MΩ±(2.5%+3digits)
66.0MΩ±(3.5%+5digits)
Frequency30Hz to 15kHz±(1.2%reading+2digits)
Sensitivity: 30~5kHz:10Vrms min.
5kHz~15kHz:40Vrms min.
@ 20% to 80% duty cycle
Duty Cycle10.0 to 94.9%±(1.2%reading+2digits)
Pulse width: 100µs-100ms, Frequency: 30Hz to 15kHz;
Sensitivity: 30~5kHz:10Vrms min.5kHz~15kHz:40Vrms min.
Temp
(type-K)
(probe accuracy not included)
-20 to 760°C±(3.0%reading+5°C)
-4 to 1400°F±(3.0%reading+9°F)

Diode Test Test current of 0.3mA typical; Open circuit voltage 3V DC typical.
Continuity Check Threshold <40W; Test current < 0.5mA
Size(H×W×D):9×3.2×2in/229×80×49mm
Weight:10.7oz/303g

1. 9V Battery


2. Test leads

3. Type K Temperature probe


4. User manual


5. Gift box with carrying case

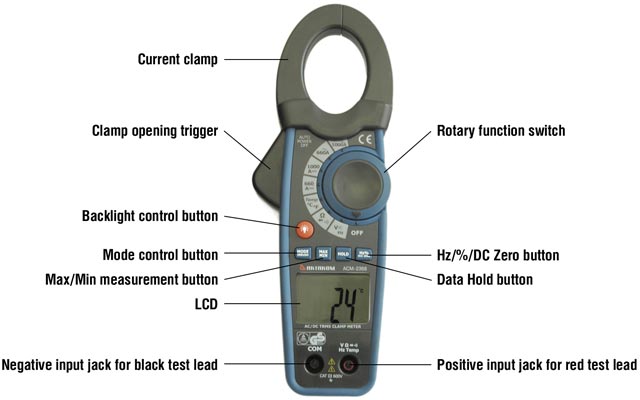

Controls of AKTAKOM ACM-2368 Clamp Meter

Controls of AKTAKOM ACM-2368 Clamp Meter

AC/DC Current Measurement

  1. Ensure that the test leads are disconnected from the meter before making current clamp measurements
  2. Set the Function switch to the 1000A or 660A range. If the approx. range of the measurement is not known, select the highest range then move to the lower ranges if necessary
  3. Press the DC ZERO button to zero the meter display
  4. Press the trigger to open jaw. Fully enclose only one conductor. For optimum results center the conductor in the jaw
  5. The clamp meter LCD will display the reading.

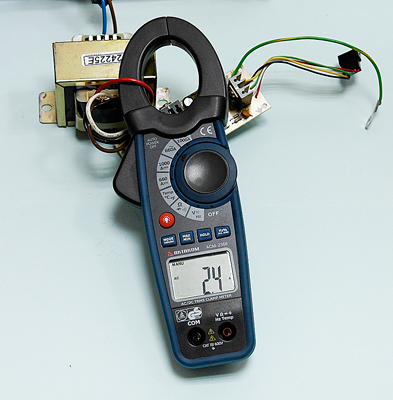

AC Current Measurement

AC/DC Voltage Measurement

  1. Insert the black test lead into the negative COM terminal and the red test lead into the positive V·Ω·TEMP·Hz terminal
  2. Set the function switch to the V Hz position
  3. Use the MODE button to select AC or DC Voltage
  4. Connect the test leads in parallel to the circuit under test
  5. Read the voltage measurement on the LCD display.

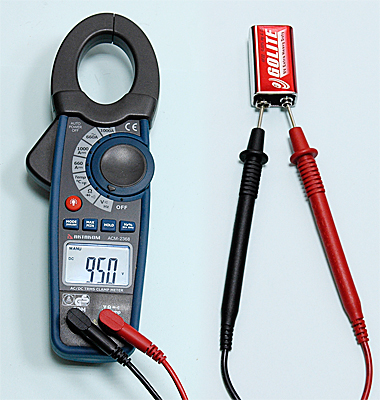

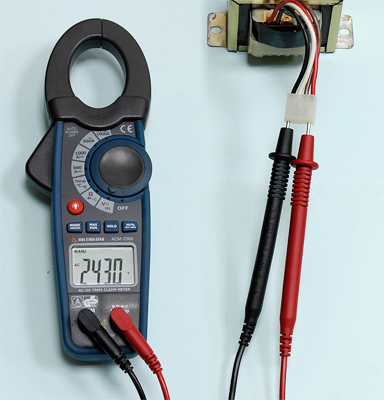

DC Voltage MeasurementAC Voltage Measurement

Resistance Measurement

  1. Insert the black test lead into the negative COM terminal and the red test lead into the V·Ω·TEMP·Hz positive terminal
  2. Set the function switch to the Ω position
  3. Touch the test probe tips across the circuit or component under test
  4. Read the resistance on the LCD display.

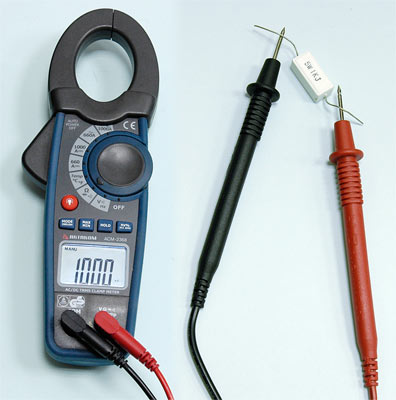

Resistance Measurement

Frequency or % duty cycle measurements

  1. Insert the black test lead banana plug into the negative COM jack and the red test lead banana plug into the V·Ω·TEMP·Hz· positive jack.
  2. Set the function switch to the V Hz Position.
  3. Press the Hz/% button to select the Frequency (Hz) or Duty Cycle (%) function.
  4. Touch the test probe tips across the part under test.
  5. Read the Frequency value on the display.
  6. Duty cycle measurement: When the duty cycle is less than 10.0%, the LCD panel shows UL. When the duty cycle is more than 94.9%, the LCD panel shows OL.
  7. The display will indicate the proper decimal point and value.
  8. Press the Hz/% button again to return to the voltage mode.

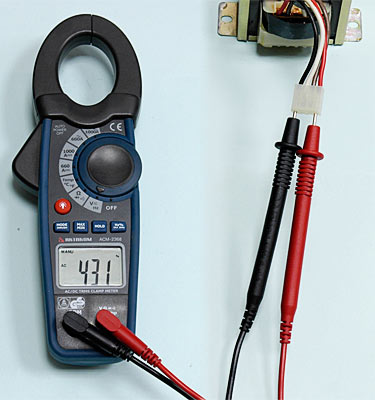

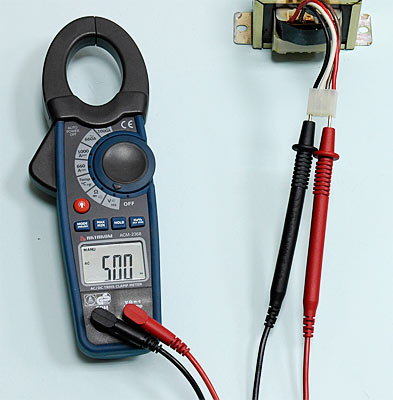

Frequency MeasurementDuty Cycle Measurement

Temperature Measurements

  1. Set the function switch to the TEMP position.
  2. Insert the Temperature Probe into the negative COM and the V·Ω·TEMP·Hz· positive jacks, observing polarity.
  3. Touch the Temperature Probe head to the device under test. Continue to touch the part under test with the probe until the reading stabilizes.
  4. Read the temperature on the display. The digital reading will indicate the proper decimal point and value.
  5. Use the MODE button to select ºF or ºC.
WARNING: To avoid electric shock, be sure the thermocouple probe has been removed before changing to another measurement function.

Temperature Measurement

Continuity Measurements

  1. Insert the black test lead into the negative COM terminal and the red test lead into the VΩTEMPHz positive terminal.
  2. Set the function switch to the position.
  3. Use the MODE button to select continuity . The display icons will change when the MODE button is pressed.
  4. Touch the test probe tips across the circuit or component under test.
  5. If the resistance is < 40Ω, a tone will sound.

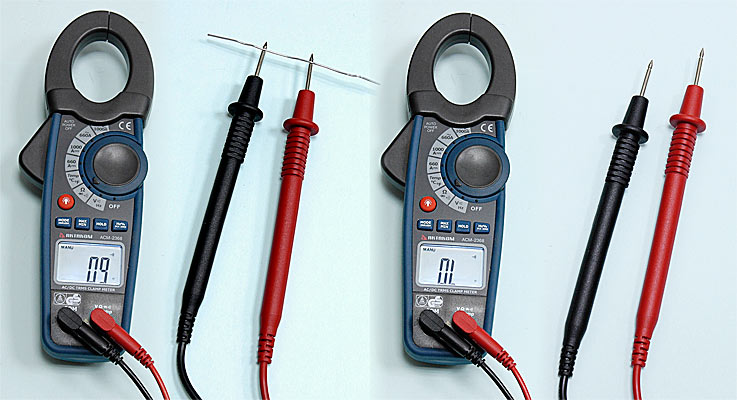

Continuity Test

Diode Test

  1. Insert the black test lead banana plug into the negative COM jack and the red test lead banana plug into the V·Ω·TEMP·Hz· positive jack
  2. Turn the function switch to position. Use the MODE button to select the diode function if necessary (diode symbol will appear on the LCD when in Diode test mode)
  3. Touch the test probe tips to the diode or semiconductor junction under test. Note the meter reading
  4. Reverse the test lead polarity by reversing the red and black leads. Note this reading
  5. The diode or junction can be evaluated as follows:
    • If one reading displays a value (typically 0.400V to 0.900V) and the other reading displays OL, the diode is good.
    • If both readings display OL the device is open.
    • If both readings are very small or ‘0’, the device is shorted.

Diode Test

La pinza amperimtrica AKTAKOM ACM-2368 con RMS verdadero y 1000A CA/CD proporciona una medicin precisa de la corriente el?ctrica de arrancada.

Este detector de corriente profesional puede medir corrientes sin contacto, cuenta con una s?lida carcasa irrompible resistente al fuego con una protecci?n de goma que la hace muy manejable para el usuario. Por su forma especial le facilita su uso en zonas de difcil acceso. Todas las funciones vienen con protecci?n por sobrecarga, lo que ofrece un mximo de seguridad para el usuario. Podr? usar el detector de corriente para conductores con un di?metro de hasta 1 3/16” (30mm). Es una herramienta muy til para el servicio t?cnico, el uso estacionario en talleres profesionales dedicados a reparaciones, as? como en laboratorios.

Caracter?sticas:

1. Pantalla digital LCD de 6600 cuentas con iluminaci?n de fondo.
2. Protecci?n electr?nica de sobrecarga.
3. Apagado autom?tico e indicaci?n de bater?a baja.
4. Funci?n de memoria de valores (Data Hold).
5. RMS verdadero para voltaje y corriente CA.
6. Medici?n de corriente de arrancada.
7. Segmentos gr?ficos de barra.
8. Prueba de diodos y control de continuidad con zumbador.
9. Funci?n de medici?n de resistencia, frecuencia, capacidad y temperatura.
10. Corriente alterna hasta 1000 A.
11. Medici?n de tensi?n hasta 600 V CA/CD.
12. Frecuencia desde 30 Hz hasta 15 KHz.
13. Funci?n de punto cero DCA.
14. Di?metro del conductor m?ximo: 1 3/16 (30 mm).
15. Medici?n de temperatura tipo K

Bot?n de mantenci?n de valores

Para congelar la lectura del medidor LCD, presione el bot?n HOLD de datos. Si bien la retenci?n de datos este activada, f?jese que el icono aparece en la pantalla LCD. Presione el bot?n HOLD de nuevo para volver al funcionamiento normal.

Bot?n de iluminaci?n de la LCD

La pantalla LCD est? equipada con iluminaci?n de fondo para facilitar la visualizaci?n, especialmente en ?reas poco iluminadas. Un toque la encienda otro la apaga. Tenga en cuenta que el medidor tiene apagado autom?tico.

Arrancada

La funci?n de corriente de partida para la medici?n de corriente alterna detecta la puesta en marcha actual de un motor. En el modo de ACA pulse el bot?n INRUSH, que har? que el medidor entre en el modo de corriente de irrupci?n. La pantalla LCD mostrar? "----" hasta que el motor entre en marcha y sea detectado. La lectura se realizar? s?lo una vez y permanecer? en espera. Para salir del modo de INRUSH pulse y mantenga pulsado el bot?n por m?s de un segundo.
