ACM-2353 1000 A AC/DC Clamp & Watt Meter. True RMS + 3 Phase Power Analysis + Memory & USB

AKTAKOM ACM-2353 1000 A AC/DC Clamp & Watt Meter. True RMS + 3 Phase Power Analysis + Memory & USB
Click an image to enlarge
Brand:AKTAKOM
Warranty:1 year
User's Guide:Download
Installation Guide:Download
USB (Universal Serial Bus) True RMS Bar graph indicator

Click on Software Tab to see how ACM-2353 Application Software works!

Retail price :$210.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

In stock now

BuyAdd to cart

AKTAKOM ACM-2353Professional True RMS 1000A AC Watt Clamp Meter provides accurate Watt, AC Current and Voltage readings regardless of waveforms.

Features:

  • Analysis for Single Phase and Balanced 3 phase system
  • True RMS Value (Voltage and Current)
  • Large LCD Display with Backlight
  • USB interface
  • 4 digits with dual display LCD
  • MIN/MAX measurement
  • True power / apparent power / power factor measurement
  • Data Hold
  • Auto Ranging
  • Overflow Indication
  • Auto Power Off in 30 minutes if USB funtion is not turn on
  • Manual Data Memory and Read (99 sets)
  • NCV Detection
  • 2.16" (55mm) Jaw opening

Now available under Application Tab How to use ACM-2353 Software illustrated in detail

Special Offer 1+: Buy 1 ACM-2353 Get Second or more for $161.00 + Multi-Tip Screwdriver as a Gift call 786 597-7752 to place an order

Attention. Discounts for various special offers are not cumulative.

AC Voltage (ACV)750 V
ACV Accuracy(1.2%+5)
ACV Resolution0.1 V
AC Current (ACA)1000 A
ACA Accuracy(2.0%+5)
ACA Resolution0.1 A
Frequency50 Hz...200 Hz
Power0.60...750 kVA
True RMS+
Autorange+
Data hold+
Min/Max measurement+
Jaw size2.2 in / 55 mm
InterfaceUSB
DisplayLCD, 4000 counts
Bar graph indicator+
Power supply9 V battery
Dimensions13.4 x 4 x 1.8 in / 340 x 100 x 46 mm

Accuracy tables

AC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValue Learn an absolute error of your measurementValue+error
100 V 0.01 V (1.2%+5 digits) 1.24988 V V
400 V 0.1 V (1.2%+5 digits) 5.2988 V V
750 V 1 V (1.2%+5 digits) 13.988 V V

AC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
40 A 0.01 A (2.0%+5 digits) 0.8498 A A
400 A 0.1 A (2.0%+5 digits) 8.498 A A
1000 A 1 A (2.0%+5 digits) 24.98 A A

Frequency

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
200 Hz 1 Hz (0.5%+5 digits) 5.995 Hz Hz

Active power

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
750 kW 0.01 kW (3.0%+5 digits) 22.5497 kW kW

Reactive power

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
750 kVAR 0.01 kVAR (4.0%+5 digits) 30.0496 kVAR kVAR

Apparent power

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
750 kVA 0.01 kVA (3.0%+5 digits) 22.5497 kVA kVA

Energy

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
9999 kWh 1 kWh (3.0%+2 digits) 301.94 kWh kWh

Specifications:

Function Range Max Resolution Accuracy
AC Voltage100V0.01V ±(1.2%+5d)
400V 0.1V
750V 1V
AC Current
40A
0.01A
±(2.0%+5d)
400A 0.1A
1000A 1A
Active Power
750kW 0.01kW±(3.0%+5d)
Apparent Power750kVA0.01kVA±(3.0%+5d)
Reactive Power750kVAR0.01kVAR±(4.0%+5d)
Power Factor (Capacitive or Inductive) 0.3...1 0.1
±(0.02%+2d)
Phase Angle 0°...90°±2°
Frequency50Hz...200Hz1Hz ±(0.5%+5)
Energy1...9999kWh
1kWh ±(3%+2)

General Specification

  • Power Analysis: Single Phase and Balanced 3 phase system
  • LCD: 4 digits, dual
  • Auto Power Off: 30 minutes
  • Manual Data Memory and Read: 99 sets
  • Jaw opening: 2.16" (55mm)
  • Size: 23.4×4×1.8in/295×100×46mm
  • Weight:19oz/537g

Included

1. Carrying case

2. Test leads

3. Test probes

4. Crocodile clips

5. USB cable

6. 9V battery

Optional

1. Software (Available for download by registration)

Apparent Power (main display) + Reactive Power (secondary display) Measurement

Warning. To avoid damages to the Meter or harms to you, do you measure higher than AC voltage 750V and AC current 1000A.

To measure Apparent Power + Reactive Power, connect the Meter as follows:

  1. Dial the Rotary to kVA to select Apparent Power + Reactive Power range.
  2. Press the lever to open the transformer jaw, and clamp them.
  3. Insert red test leads to L1 input terminal and connecting it.
  4. Insert black test leads to COM input terminal and connect it.
For more information go to User Manual.

Apparent Power Measurement

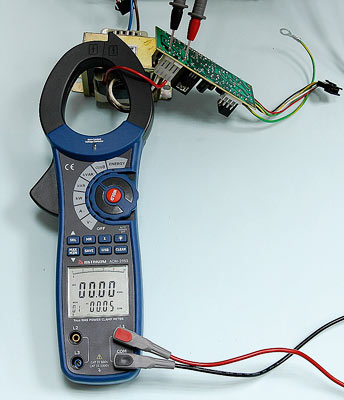

Reactive Power (main display) + Apparent Power (secondary display) Measurement

Warning. To avoid damages to the Meter or harms to you, do you measure higher than AC voltage 750V and AC current 1000A.

To measure Reactive Power + Apparent Power, connect the Meter as follows:

  1. Dial the Rotary to kVAR to select Reactive Power + Apparent Power range.
  2. Press the lever to open the transformer jaw, and clamp them.
  3. Insert red test leads to L1 input terminal and connecting it.
  4. Insert black test leads to COM input terminal and connect it.
For more information go to User Manual.

Reactve Power Measurement

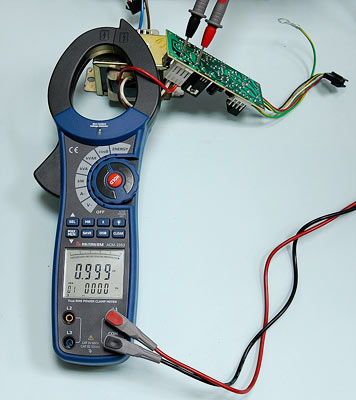

Power Factor (main display) + Phase Angle (secondary display) Measurement

Warning. To avoid damages to the Meter or harms to you, do you measure higher than AC voltage 750V and AC current 1000A.

To test for Power factor (main display) + Phase angle (secondary display), connect the Meter as follows:

  1. Dial the Rotary to cosθ to select Power factor + Phase angle range.
  2. Press the lever to open the transformer jaw, and clamp them to the corrresponding phase of tested conductor.
  3. Insert red test leads to L1 input terminal and connecting it.
  4. Insert black test leads to COM input terminal and connect it.
  5. MAXMIN button are not valid when measuring power factor.
For more information go to User Manual.

Reactive Power (main display) + Apparent Power (secondary display) Measurement

Active Power (main display) + Phase Angle (secondary display) Measurement

Warning. To avoid damages to the Meter or harms to you, do you measure higher than AC voltage 750V and AC current 1000A.

To measure active power + phase angle, connect the Meter as follows:

  1. Dial the Rotary to kW to select Active power + Phase angle range.
  2. Press the lever to open the transformer jaw, and clamp them to the corresponding phase of tested conductor.
  3. Insert red test leads to L1 input terminal and connecting it.
  4. Insert black test leads to COM input terminal and connect it.
For more information go to User Manual.

Active Power Measurement

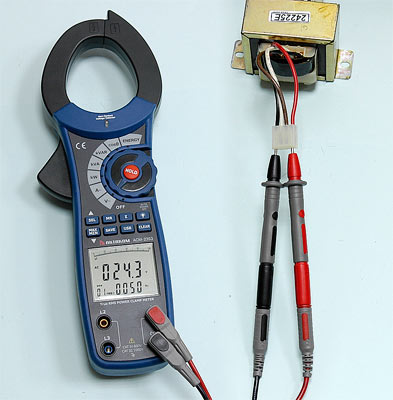

AC Voltage (main display) + Frequency (secondary display) Measurement

The AC Voltage ranges are: 100V, 400V and 750V. The frequency range is: 50Hz~60Hz.

To measure AC voltage + frequency, connect the Meter as follows:

  1. Insert the red test lead into the L1, L2, L3 input terminal, and black test lead to the COM input terminal.
  2. Dial the Rotary to VAC to select Voltage + Frequency range.
  3. Connect the red test leads (L1, L2, L3 input terminal) to the corresponding three phases loaded live wire. Black test lead (COM input terminal) to the corresponding three phases loaded neutral wire.
  4. Press SEL to select phase location, the display shows the corresponding phase symbol. L1 means the first phase Ø1, L2 means the second phase Ø2, L3 means the third phase Ø3.
  5. The display shows the corresponding True RMS voltage value and frequency value of each phase.
  6. Press MAXMIN, the LCD displays MAX, it starts recording the maximum AC voltage True RMS value.
  7. Press MAXMIN the LCD displays MIN, it starts recording the minimum AC voltage True RMS value.
    Press MAXMIN again to show the current AC voltage True RMS value.
  8. The display shows 0L when the input voltage is higher than 750V rms.

Note: When the measurement has been completed, disconnect the connection between the testing leads and the circuit under test and remove testing leads from the input terminals.

AC Voltage Measurement

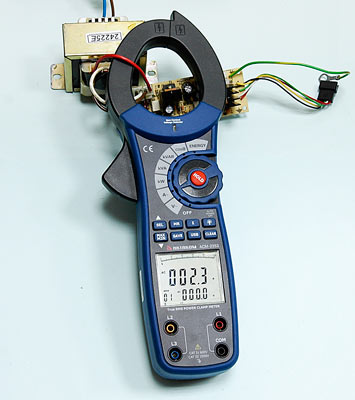

AC Current (main display) + AC Voltage (secondary display) Measurement

The AC current ranges are: 40A, 100A, 400A and 1000A. The AC Voltage ranges are: 100V, 400V and 750V

To measure AC current + AC voltage, connect the Meter as follows:

  1. Dial the Rotary to AAC to select AC Current + AC Voltage range.
  2. Press the lever to open the transformer jaw.
  3. Center the conductor within the transformer jaw, then release the Meter slowly until the transformer jaw is completely closed, Make sure the conductor to be tested is placed at the center of the transformer jaw, otherwise it will cause deviation. The Meter can only measure one conductor at a time, to measure more than one conductor at a time will cause deviation.
  4. The double display shows the AC current True RMS value and AC voltage True RMS value.
  5. Press MAXMIN, the LCD displays MAX, it starts recording the maximum AC current True RMS value.
  6. Press MAXMIN, the LCD displays MIN, it starts recording the minimum AC current True RMS value.
    Press MAXMIN, again to show the present AC current True RMS value.
  7. The display shows 0L when the current of the tested conductor is higher than 1000A rms.

Note: When the measurement has been completed, disconnect the connection between the conductor under test and the jaw, and remove the conductor away from the transformer jaw of the Meter.

AC Current (main display) + AC Voltage (secondary display) Measurement

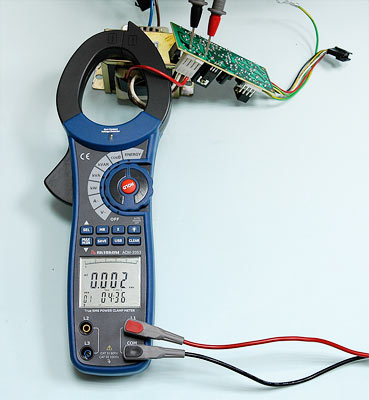

Active Energy (main display) + Time (secondary display) Measurement

Warning. To avoid damages to the Meter or harms to you, do you measure higher than AC voltage 750V rms and AC current 1000A rms.

To test for Active Energy (main display) + Time (secondary display), connect the Meter as follows:

  1. Dial Rotary to ENERGY range.
  2. Press the lever to open the transformer jaw, and clamp them to the corresponding phase of tested conductor.
  3. Insert red test leads to L1 input terminal and connecting it.
  4. Insert black test leads to COM input terminal and connect it.
  5. MAXMIN are not valid when measuring active energy.

Note

  • When there is no input signal, it cannot carry out active energy measurement.
  • When testing has been completed, disconnect the connection between the testing leads and the circuit under test and remove testing leads from the input terminals.

For more information go to User Manual.

Active Energy Measurement

True RMS Measurement and Average Value Measurement

The True RMS measurement method can measure accurately the effective value of non-sine wave input signal.

Average value measurement method can measure the mean value of one sine wave input signal, and then displays it as RMS value When the input waveform has distortion, measuring tolerance will be included. The total tolerance depends on the total distortion. Below table shows the waveform coefficient and the relationship and the requested changing factor of sine wave, square wave, pulse rectangle wave, saw tooth triangle wave, RMS value and average value. The clamp Meter software designing base on the following formula:

Current measurements with ACM-2353 on branch circuits of an electrical distribution system

  1. Dial the rotary switch to A~.
  2. Press the lever to open the transformer jaw.
  3. Center the conductor within the transformer jaw, then release the lever slowly until the transformer jaw is completely closed. Make sure the conductor to be tested is placed at the center of the transformer jaw, otherwise it will cause deviation.
  4. The double display shows the AC current True RMS value.

Current measurements with ACM-2353

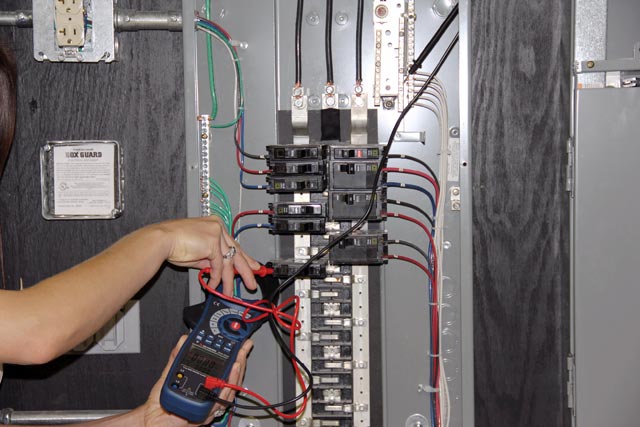

Power measurements with ACM-2353 on branch circuits of an electrical distribution system

  1. Dial the rotary switch to kVA.
  2. Press the lever to open the transformer jaw.
  3. Center the conductor within the transformer jaw, then release the lever slowly until the transformer jaw is completely closed. Make sure the conductor to be tested is placed at the center of the transformer jaw, otherwise it will cause deviation.
  4. Connect red test lead to L1 input terminal and to the conductor to be tested.
  5. Connectblack test lead to COM input terminal and to the neutral wire.

Power measurements with ACM-2353

Frequently Asked Questions

  • Software or CD that comes with my equipment, where to find?
  • Is my USB driver properly installed?
  • How to turn off the AUTOPOWER OFF?

  • Software or CD that comes with my equipment, where to find?

    Some of AKTAKOM devices are sold without a Software CD or the last application or driver update. Please register yourself to download it anytime you want by using your equipment serial number.

  • Software downloadable using your serial number.


  • Up

    Is my USB driver properly installed?

    Go to your Control Panel \ System and Security \ System and then go to Device Manager to check if your USB driver is properly installed.

    If you can not see the driver and port it means you must reinstall the driver again or give us a call.


    Up

    How to turn off the AUTOPOWER OFF?

    To turn off the AUTOPOWER OFF systemin a ACM-2056 Clamp Meter, please press REL button for 2 seconds to turn on the Wireless USB function, the USB icon appears on the LCD.

    To turn off the AUTOPOWER OFF systemin a ACM-2353 Clamp Meter, please pressUSB to turn on theUSB function, the USB icon appears on the LCD.


    Up

    ACM-2353 Application Software

    First install the driver and the application software in your computer, then start it. Once you have connected the USB cable to your computer, press the USB button in your ACM-2355 for two seconds and then release it, the virtual instrument in your computer screen will show data and start recording

    Now the equipment is measuring voltage

    Using the menu in a Data List the application allow you to SAVE a plain TXT file, export to an Excel CSV file or to print in your default printer.

    Now the equipment is measuring current

    As you can see now the selector wheel is at Amp so the equipment is reading current. After you finish your measurements you may turn the clampmeter off or just exit the application software, both ways it will stop recording data

    Standard package

    The software in the standard package of the device has no physical media (CD) and can be downloaded at www.tmatlantic.com after the purchasing and registering the equipment with a serial number. This software is not free however its cost is included into device value.

    We recommend you save a copy of your software. If lost: registered user can download software free of charge during warranty period. After warranty period has expired the software could be purchased and downloaded from the tmatlantic website. The software could be written on the CD and shipped to the customer for an additional fee and only upon request.

    Learn more...

    Free for registered users

    Download
    (4.82 MB)
    Product registration required

    La pinza amperimtrica CD/CA Profesional AKTACOM ACM-2353 con RMS verdadero de hasta 1000A permite medir corriente en una fase o en sistemas de tres fases balanceadas.

    Este detector de corriente profesional puede medir corrientes sin contacto de una fase o de sistemas de tres fases balanceadas, cuenta con una slida carcasa irrompible resistente al fuego con una proteccin de goma que la hace muy manejable para el usuario. Permite hacer mediciones con seleccin de rango automtico y para ms comodidad se puede conectar a su computador con un cable USB. Todas las funciones vienen con proteccin por sobrecarga, lo que ofrece un mximo de seguridad para el usuario. Podr usar el detector de corriente para conductores con un dimetro de hasta 2 1/8” (55 mm). Es una herramienta muy til para el servicio tcnico con mediciones consecutivas y el uso estacionario en locaciones industriales para registrar mediciones peridicas as como en laboratorios.

    Caractersticas:

    1. Pantalla digital LCD de 6000 cuentas con iluminacin de fondo.
    2. Proteccin electrnica de sobrecarga.
    3. Apagado automtico en 30 minutos si no esta conectado el dispositivo USB. Indicacin de batera baja.
    4. Funcin de memoria Max y Min.
    5. RMS verdadero para voltaje y corriente CA.
    6. Segmentos grficos de barra.
    7. Prueba de diodos y control de continuidad con zumbador.
    8. Funcin de medicin de resistencia, frecuencia y capacidad.
    9. Corriente alterna hasta 1000 A.
    10. Medicin de tensin hasta 600 V CA/CD.
    11. Frecuencia desde 20 Hz hasta 200 Hz.
    12. Funcin de punto cero DCA.
    13. Dimetro del conductor mximo: 2 1/8 (55 mm).
    14. Carcasa doble moldeada.
    15. Deteccin de voltaje sin contacto (NCV).
    16. Memoria de registro de datos hasta 99.

    Botn de iluminacin de la LCD

    La pantalla LCD est equipada con iluminacin de fondo para facilitar la visualizacin, especialmente en reas poco iluminadas. Un toque la encienda otro la apaga. Tenga en cuenta que el medidor tiene apagado automtico.

    Sistema Inalmbrico

    Para instalar el dispositivo USB deber primero conectarlo con el adaptador USB a su computadora y acto seguido instalar el driver de reconocimiento mas el programa para comunicarse con el equipo. Ello le permitir:

    • Tomar distintas mediciones a distancia a travs de una red USB.
    • Hacer tablas exportables a Excel o archivos TXT.
    • Crear grficos de los puntos tomados.
    • Pulse el botn USB para conectarse al computador.

    Back to the section

    Please give us your feedback to help us improve our website

    * - required fields

    AKTAKOM APS-730xL series power supplies
    Site map|Privacy statement|Terms of Use & Store Policies|How to Buy|Shipping|Payment|© T&M Atlantic, Inc.,2010-2016
